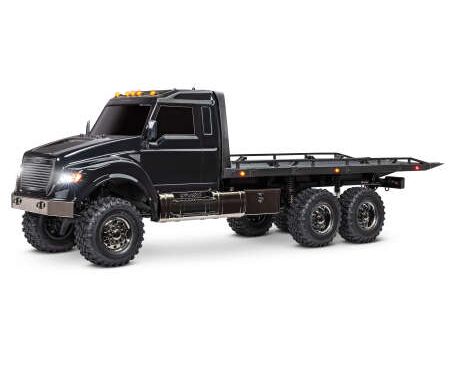

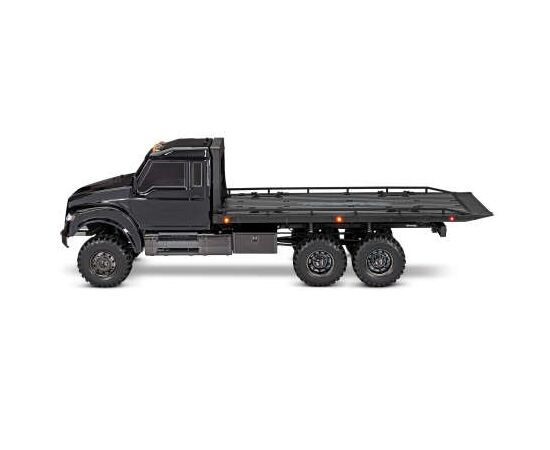

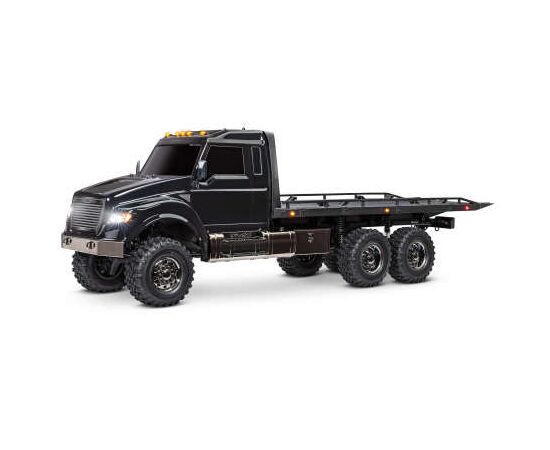

TRX-6 FLATBED TRUCK 1:10 6WD EP RTR

TRAX88086-4BK
CHF839.00
Auf Lager bei Lieferant
Externes Lager. Lieferung in ca. 3 Werktagen.
+

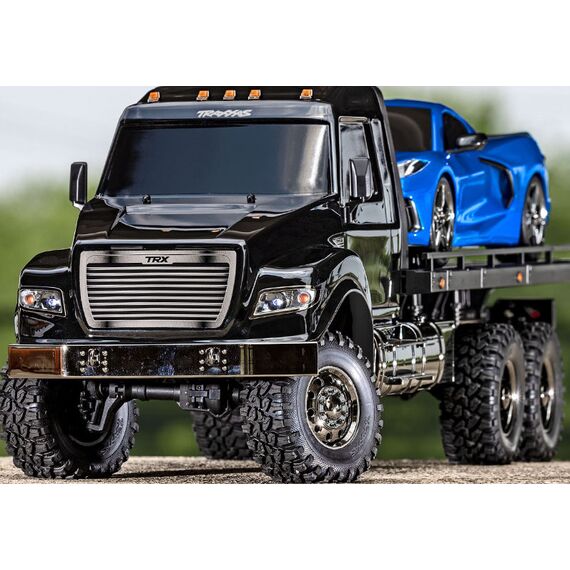

One look at the new TRX-6® Ultimate RC Hauler and you’ll know this truck means business. Based on the hugely capable TRX-6 platform, the RC Hauler is the biggest and baddest rig in the TRX lineup. The tough looks are backed up with even tougher performance. The rear bed features adjustable wheel chocks and tie-down bands to haul and display 4-Tec® models with style. A highly detailed LED lighting system and black-over-black chrome body accessories give the Hauler a tough, menacing look. The Ultimate RC Hauler is built Traxxas Tough with portal axles, high/low transmission, and T-Lock remote locking differentials. When you’re ready for big-scale RC fun, nothing comes close to the Traxxas Ultimate RC Hauler.

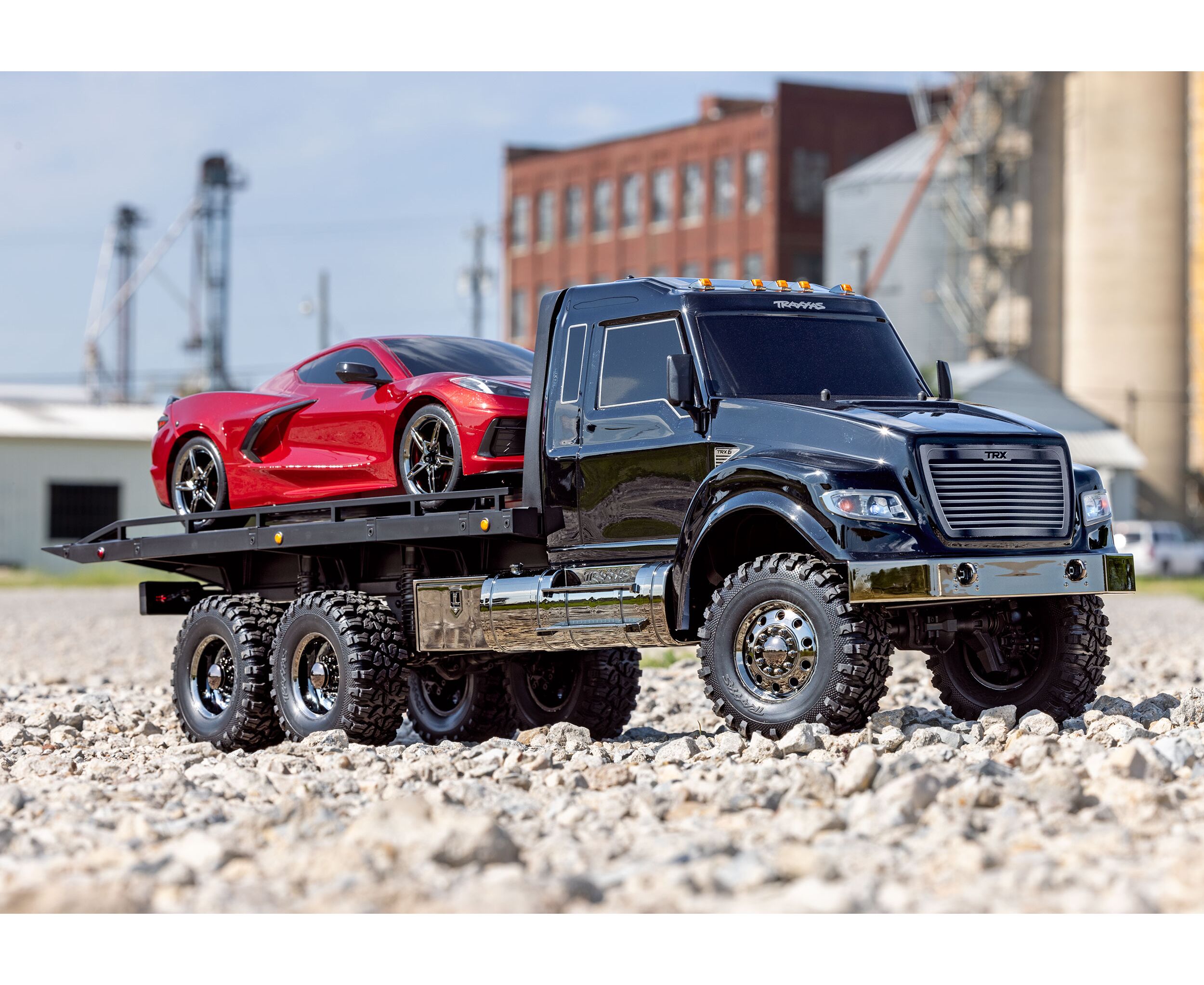

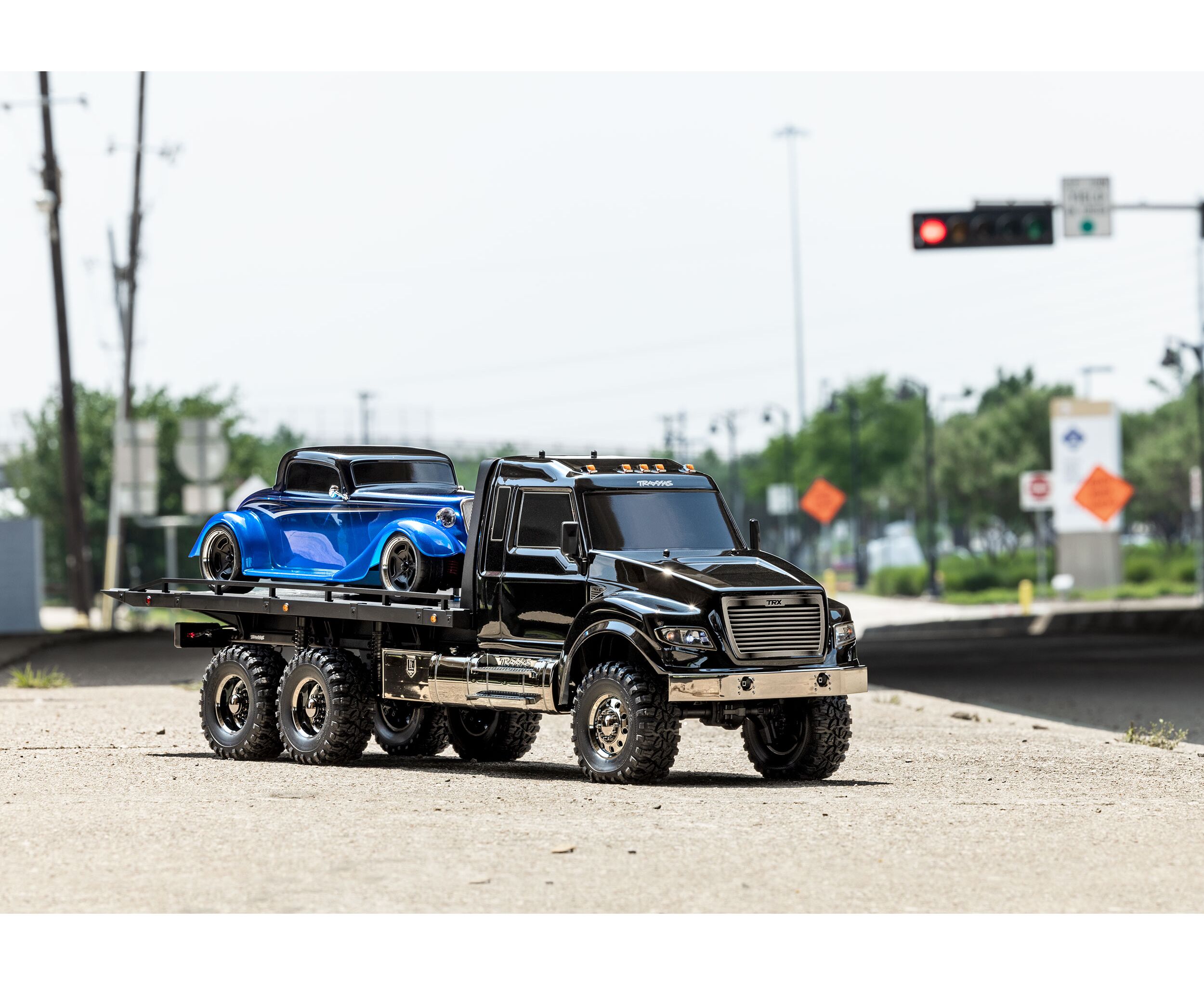

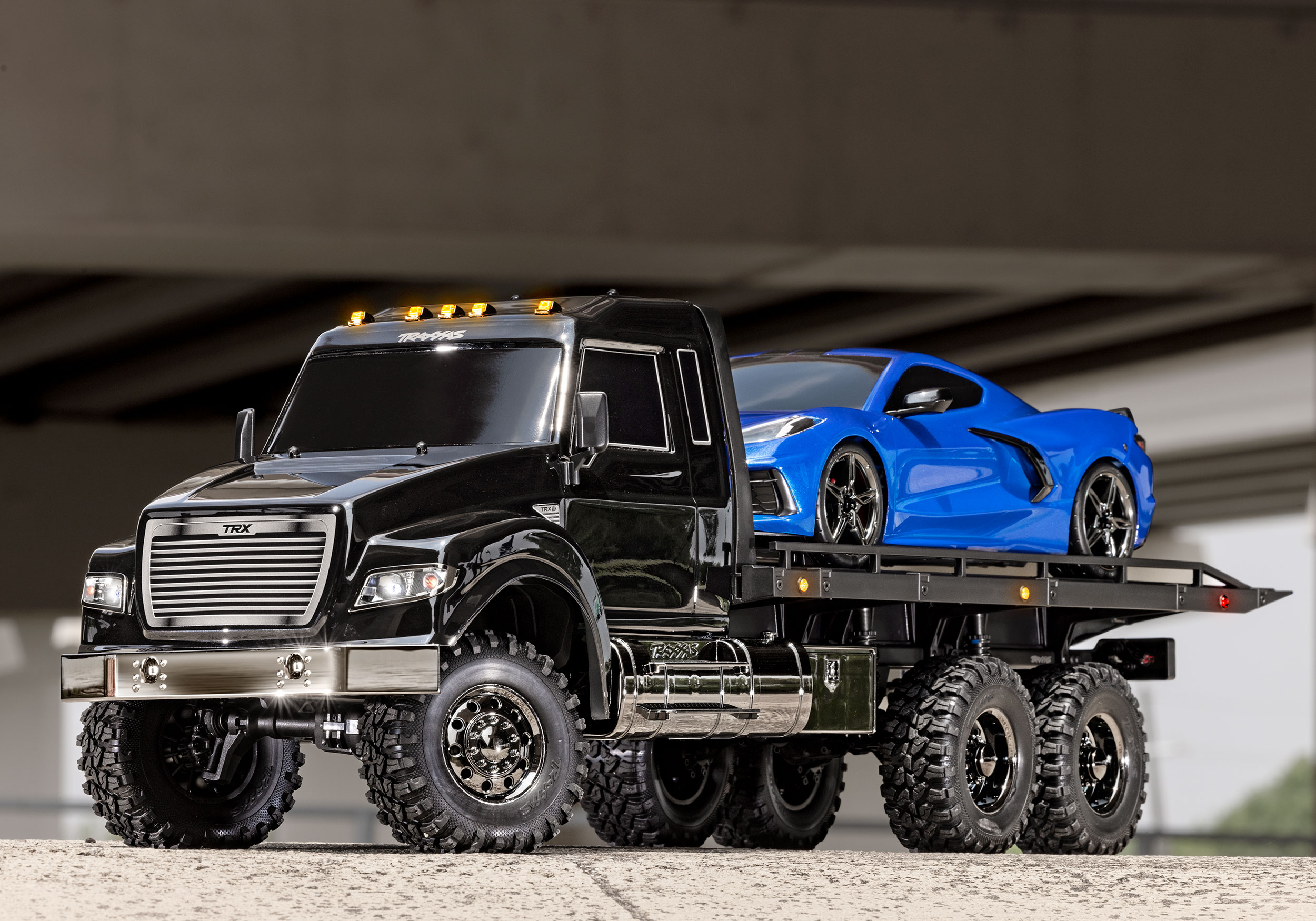

Built to Haul

BUILT TO HAUL

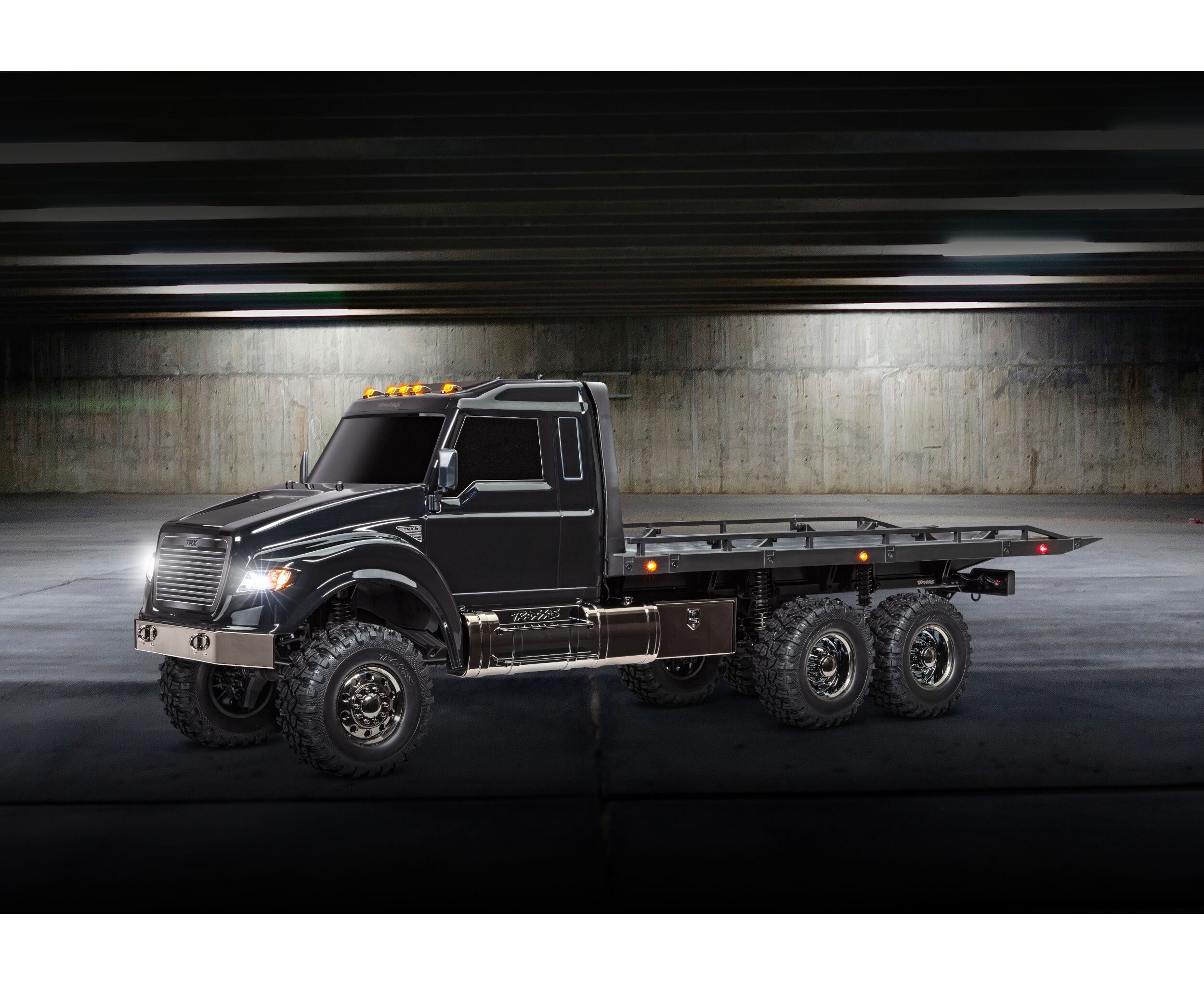

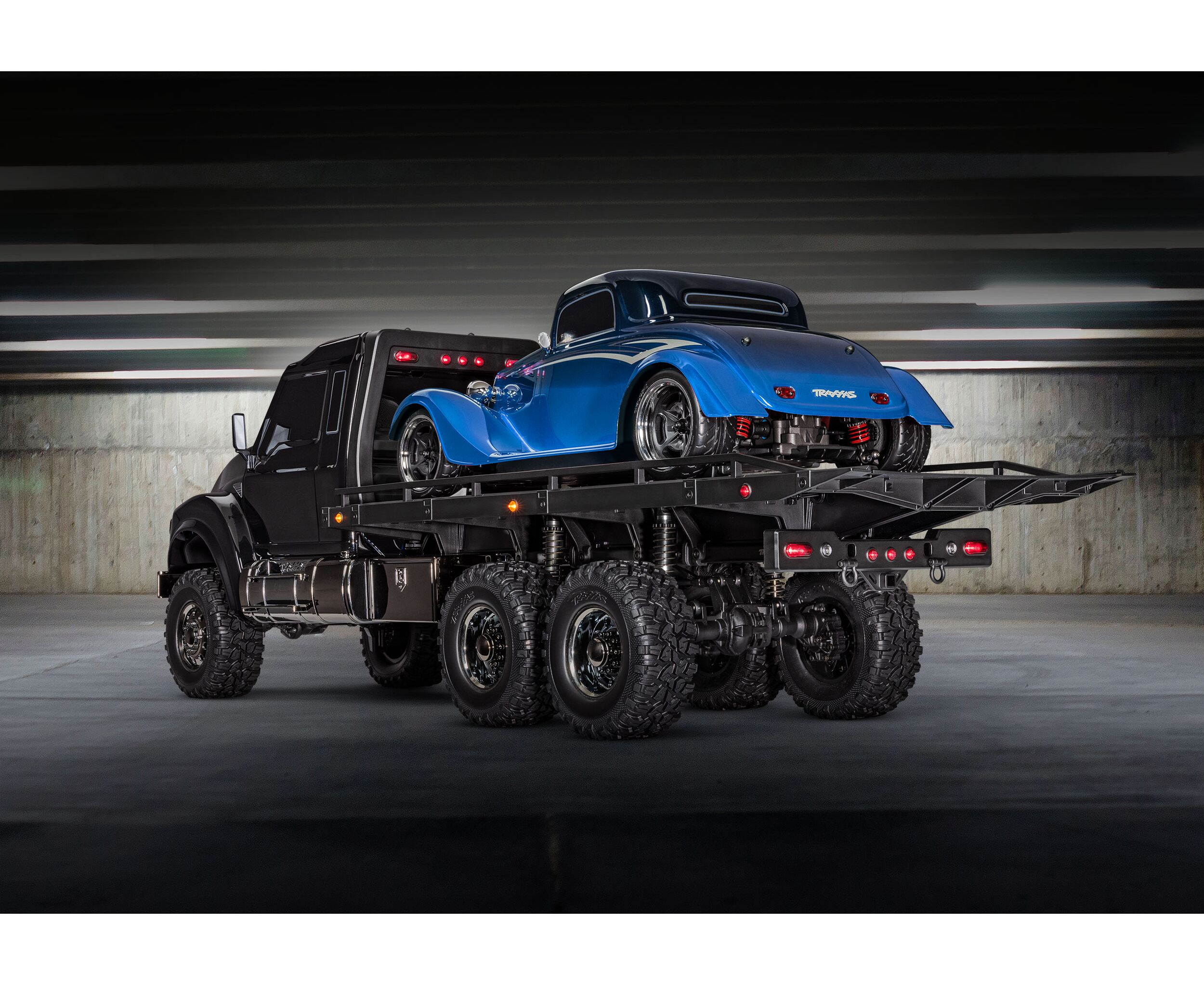

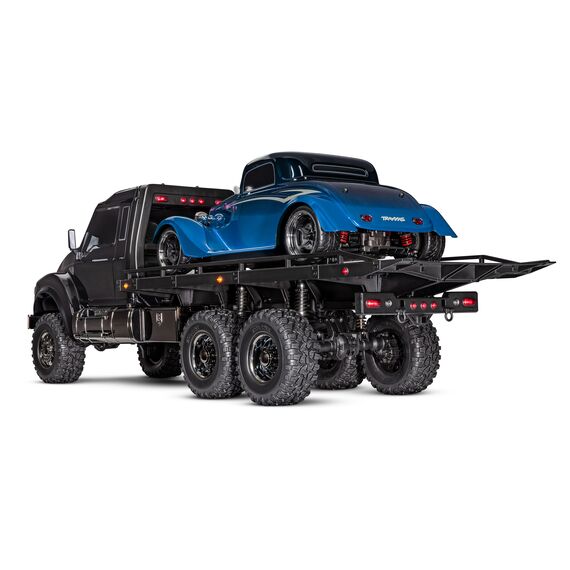

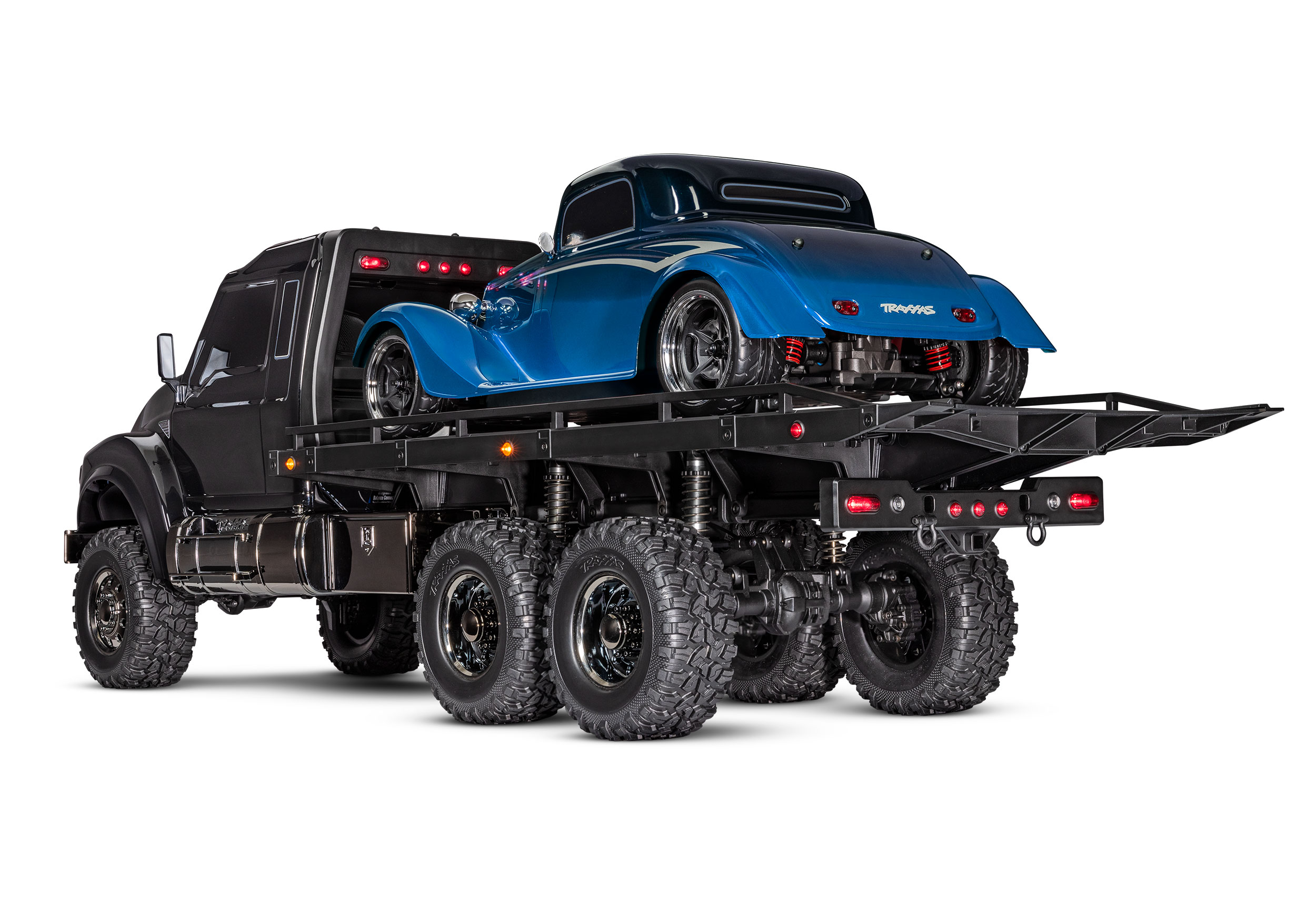

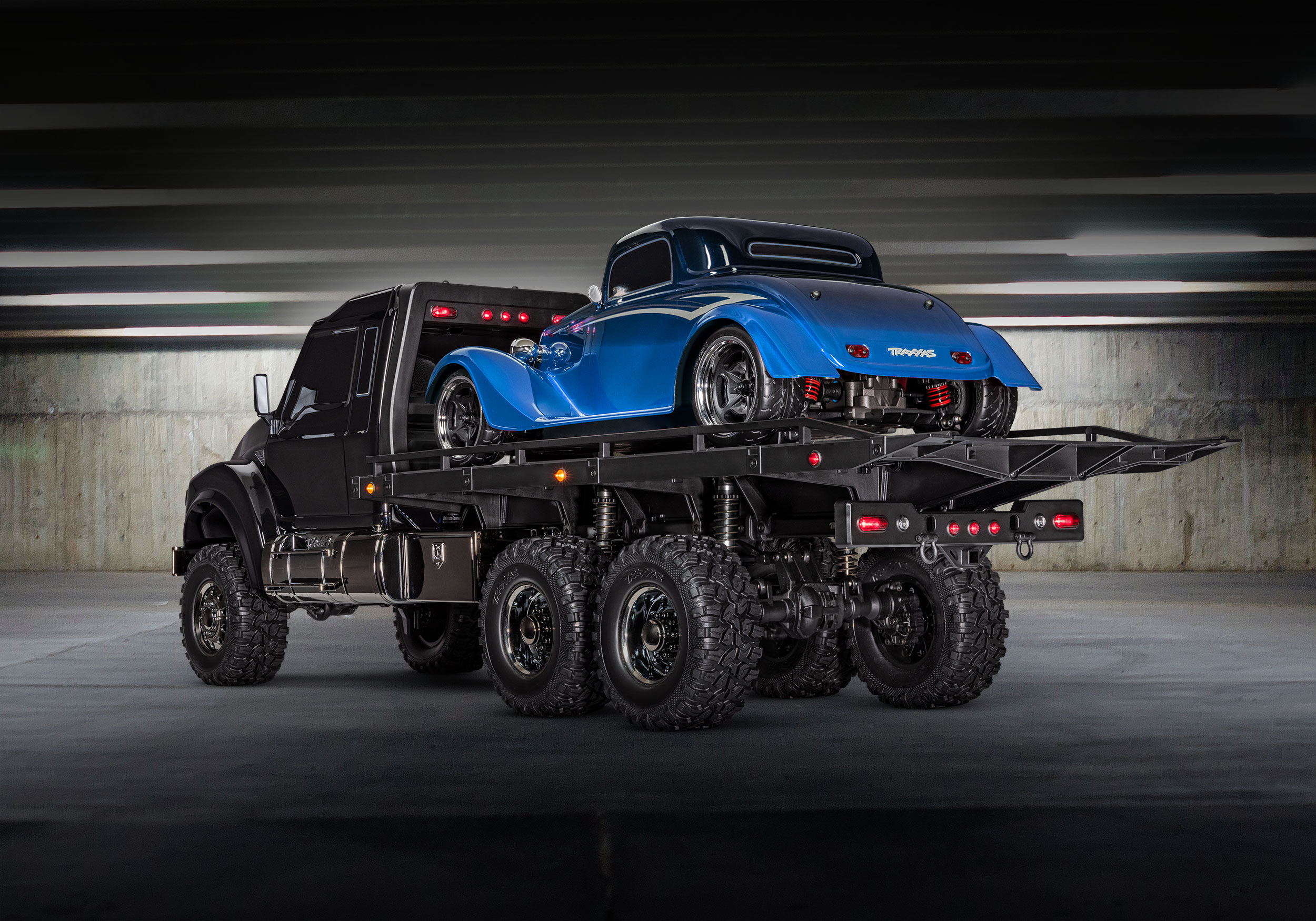

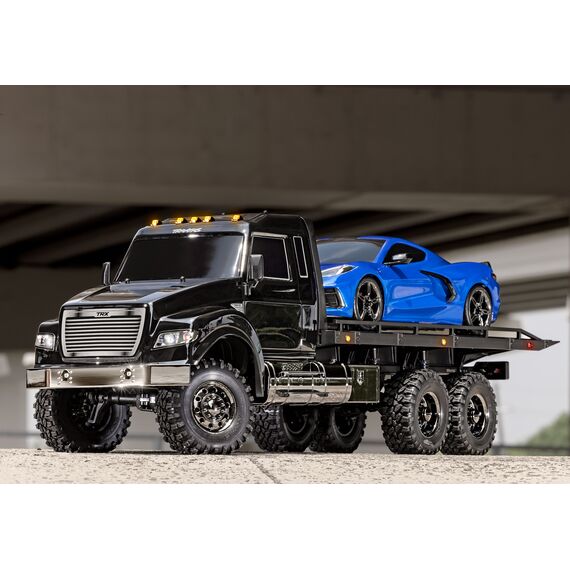

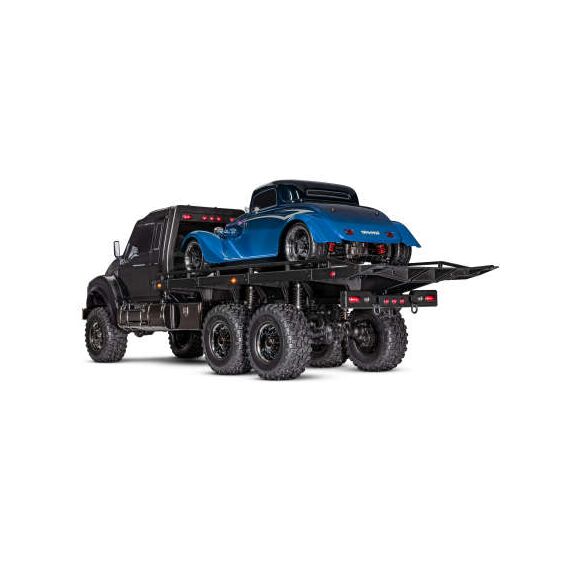

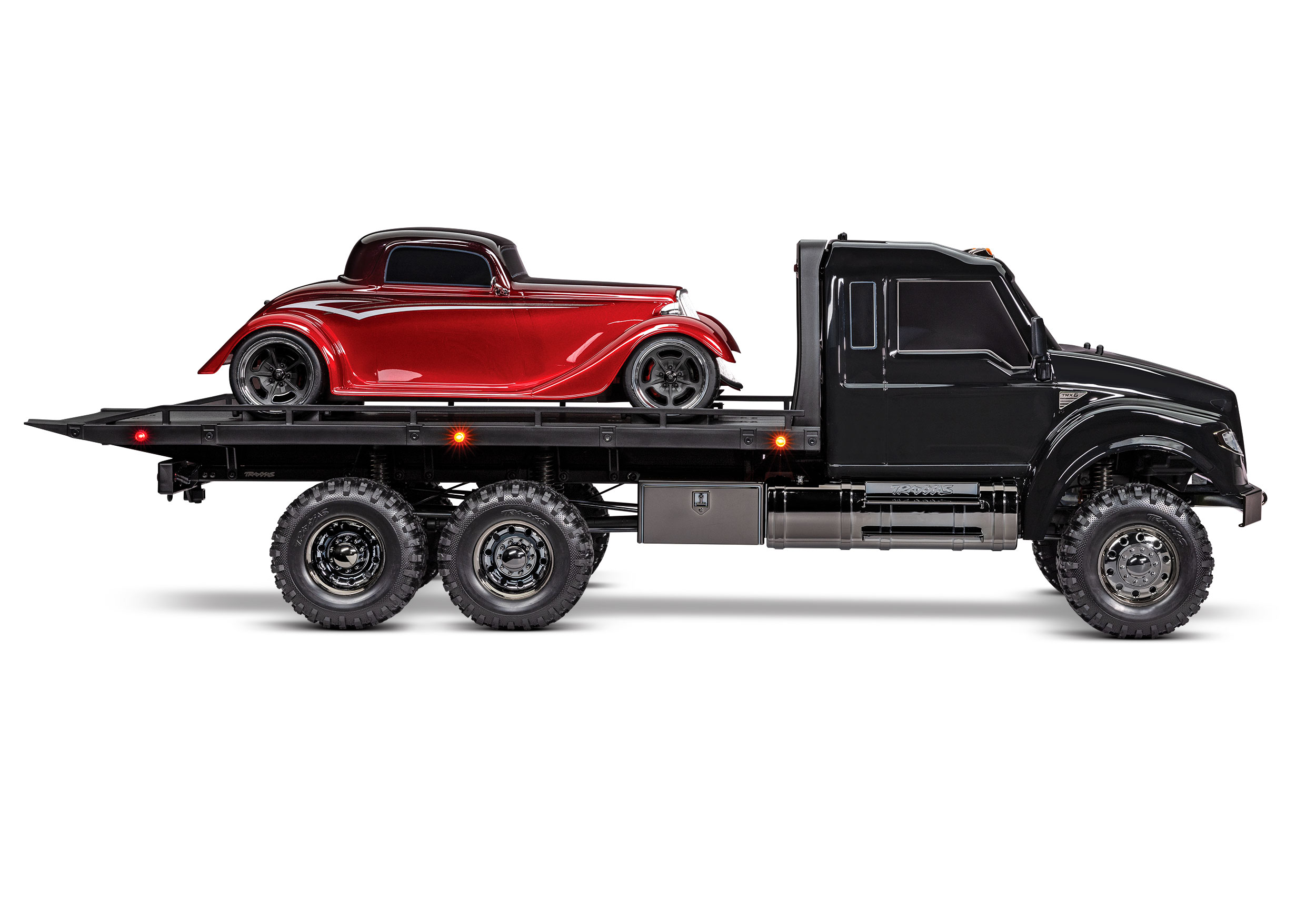

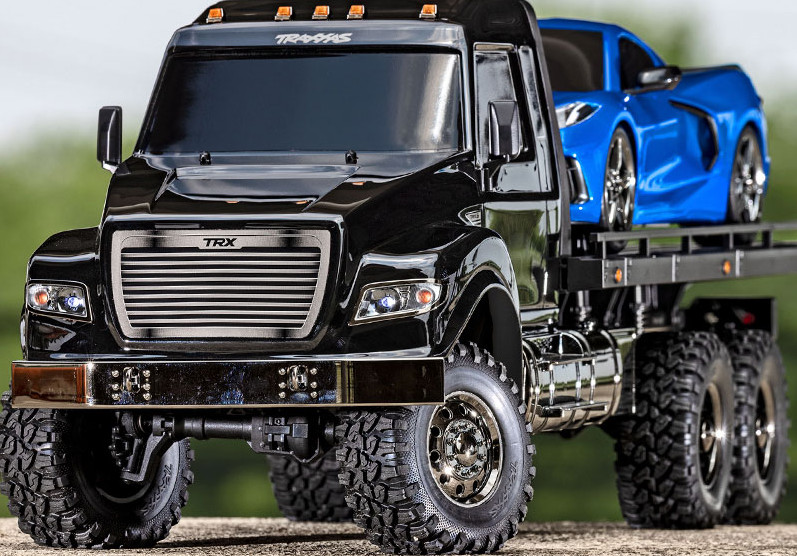

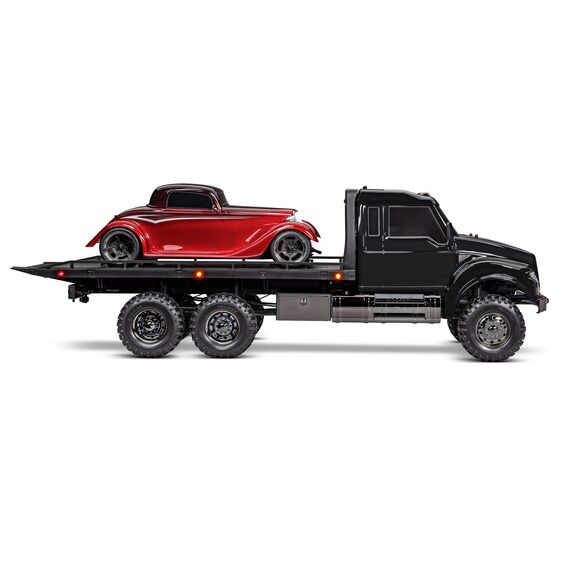

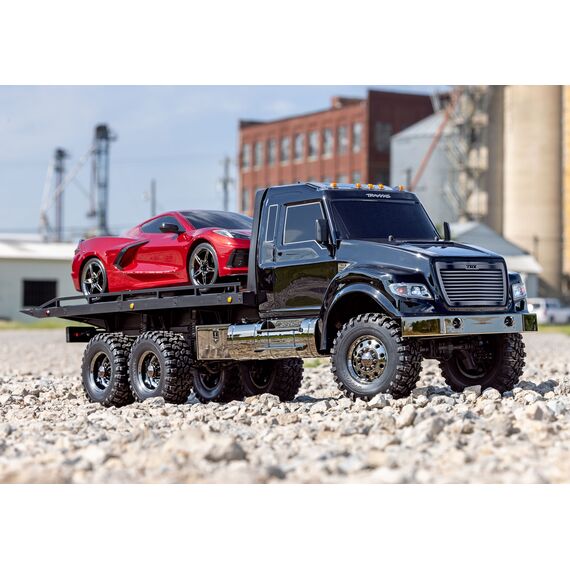

The Ultimate RC Hauler is the largest TRX-6® model with an extra long 23.7" (603mm) wheelbase and oversize bed to haul your 4-Tec models in style. The highly detailed truck features deep gloss black paint over molded black chrome body accessories for an intimidating look to match its big rig attitude.

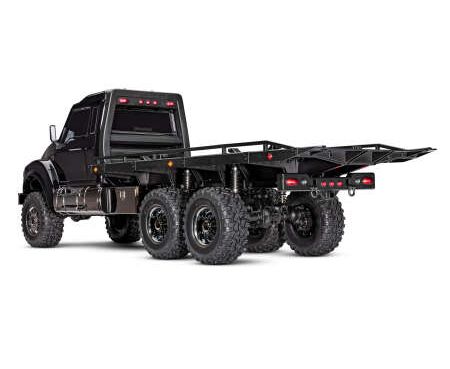

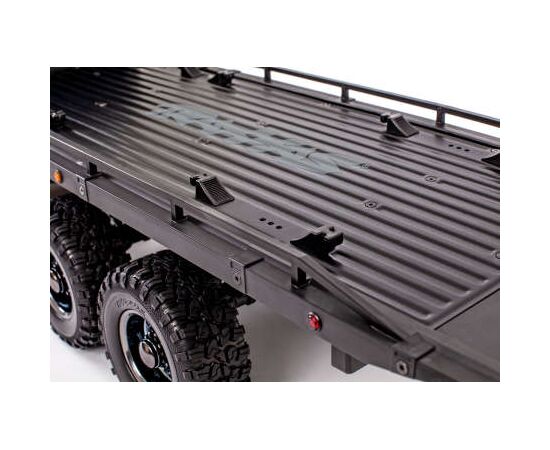

Detailed Bed and Lights

DETAILED BED AND LIGHTS

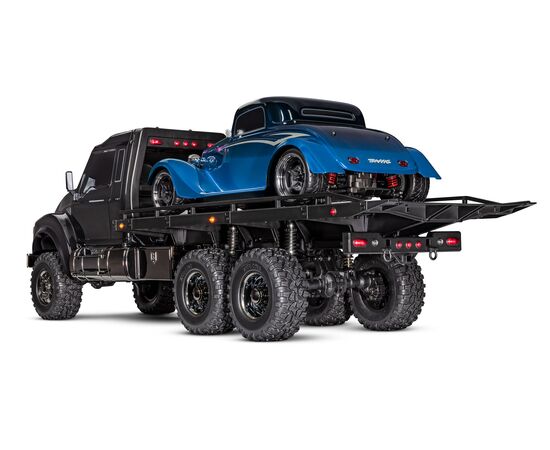

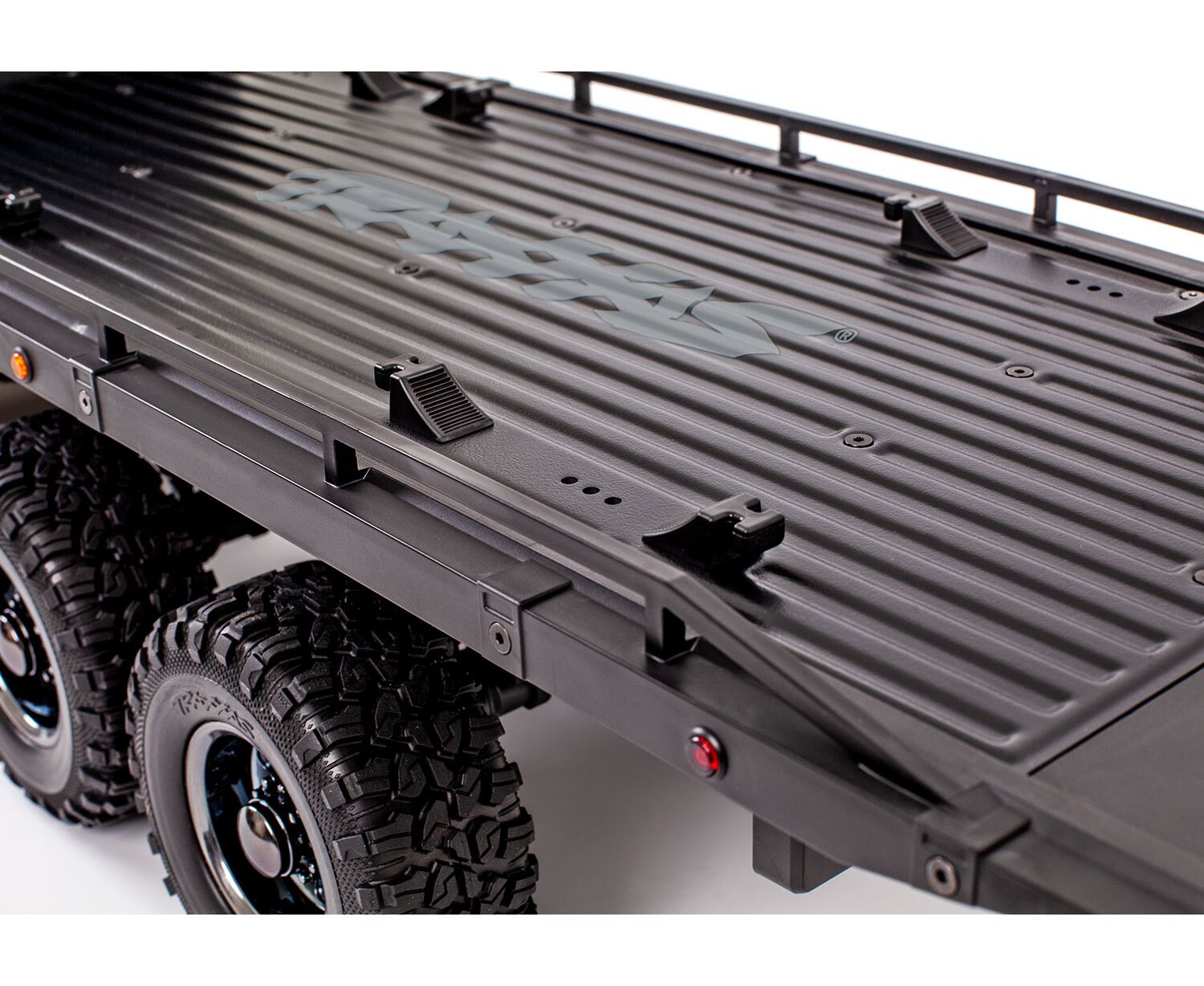

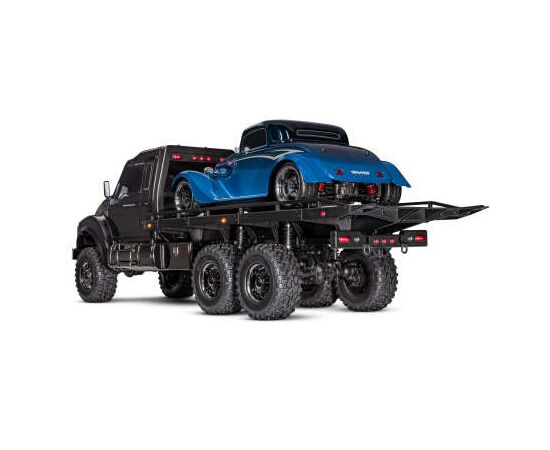

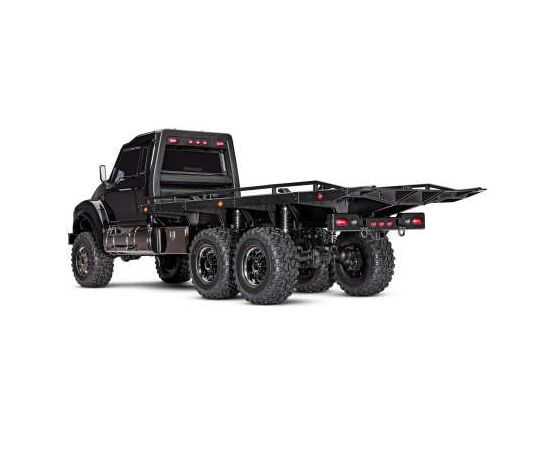

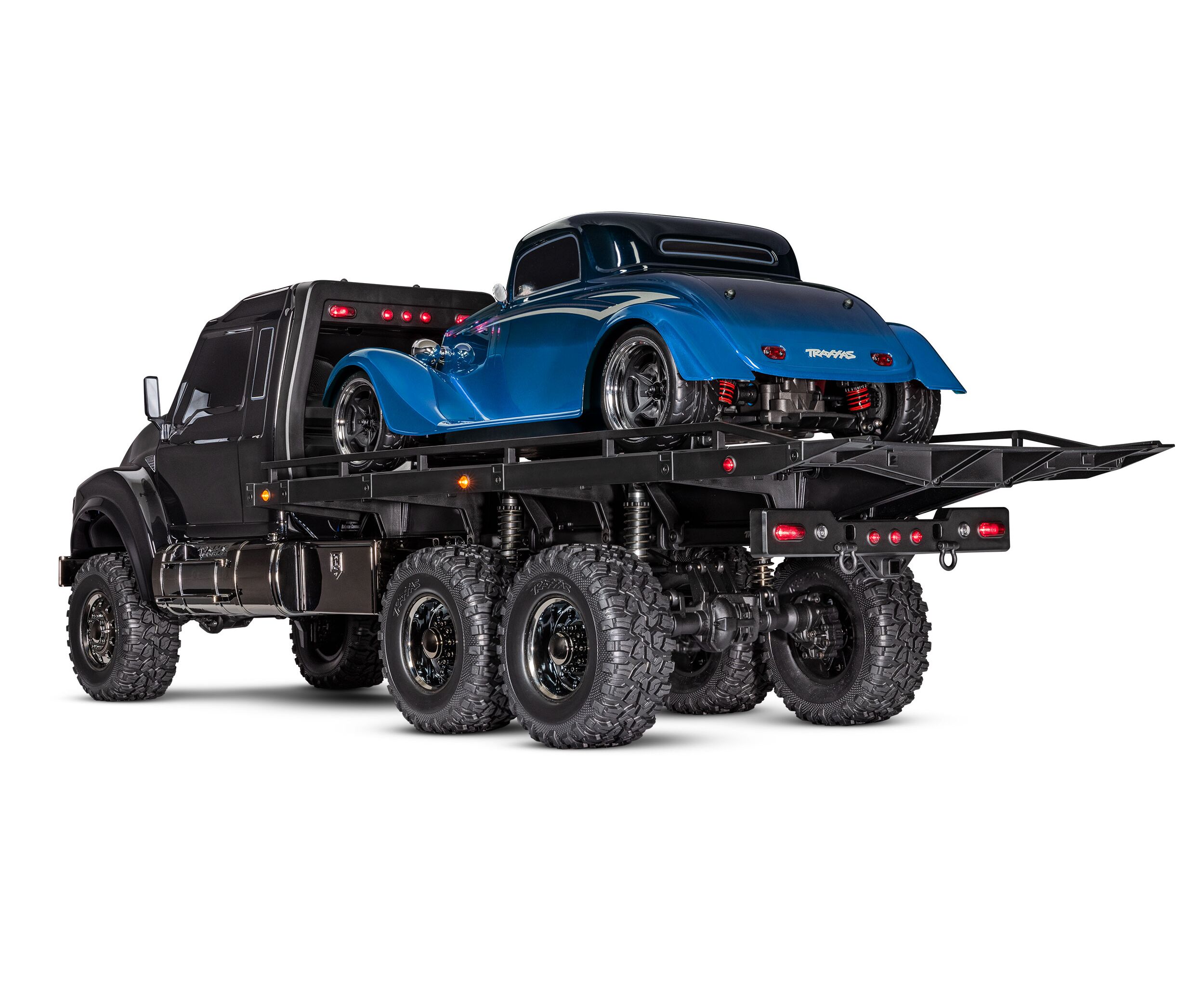

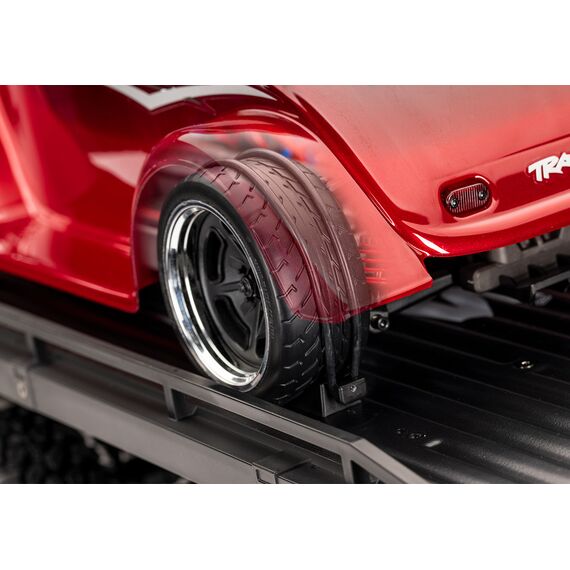

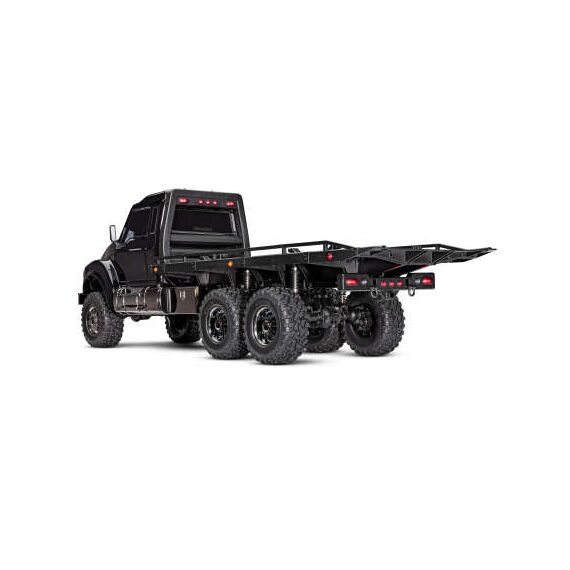

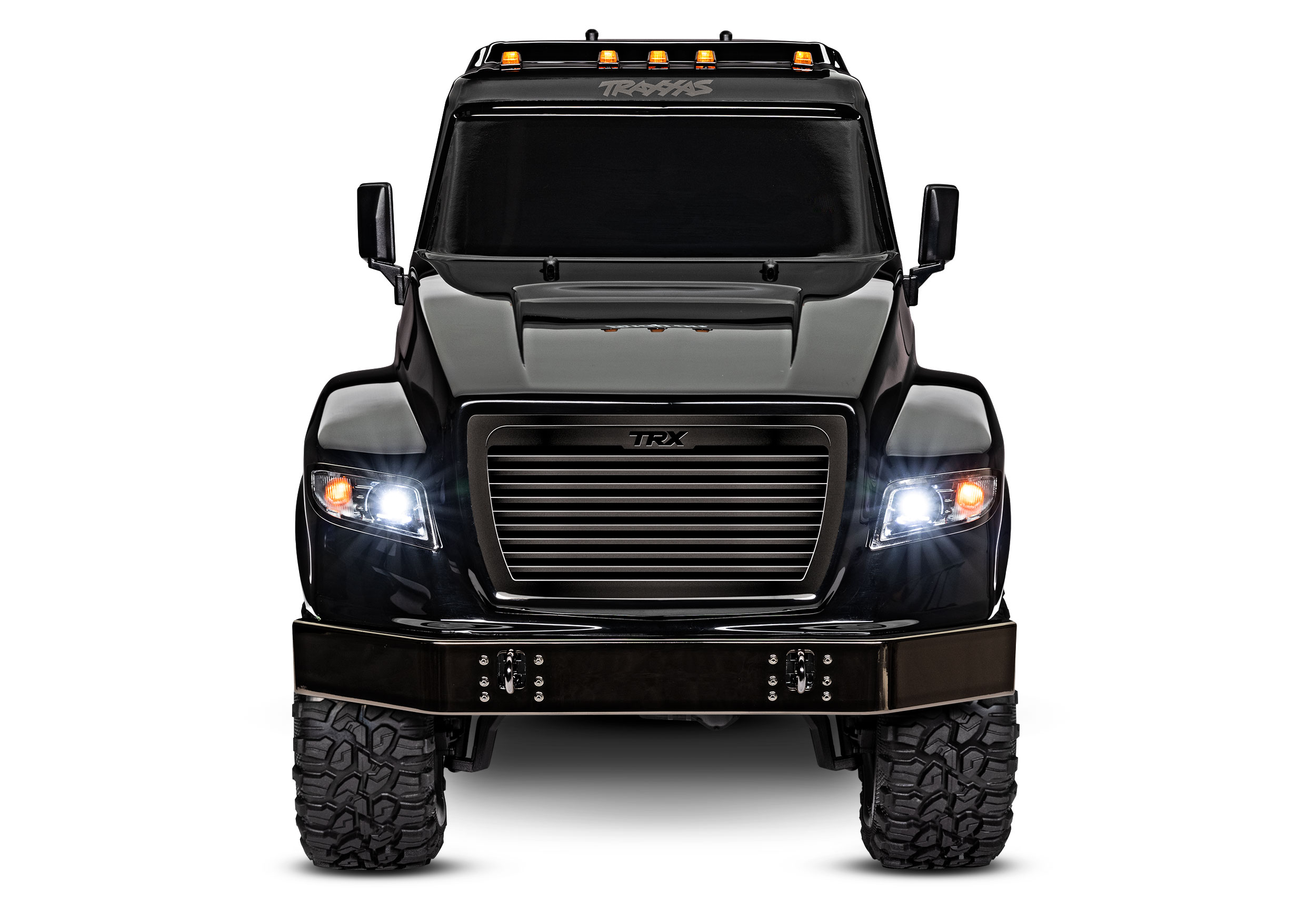

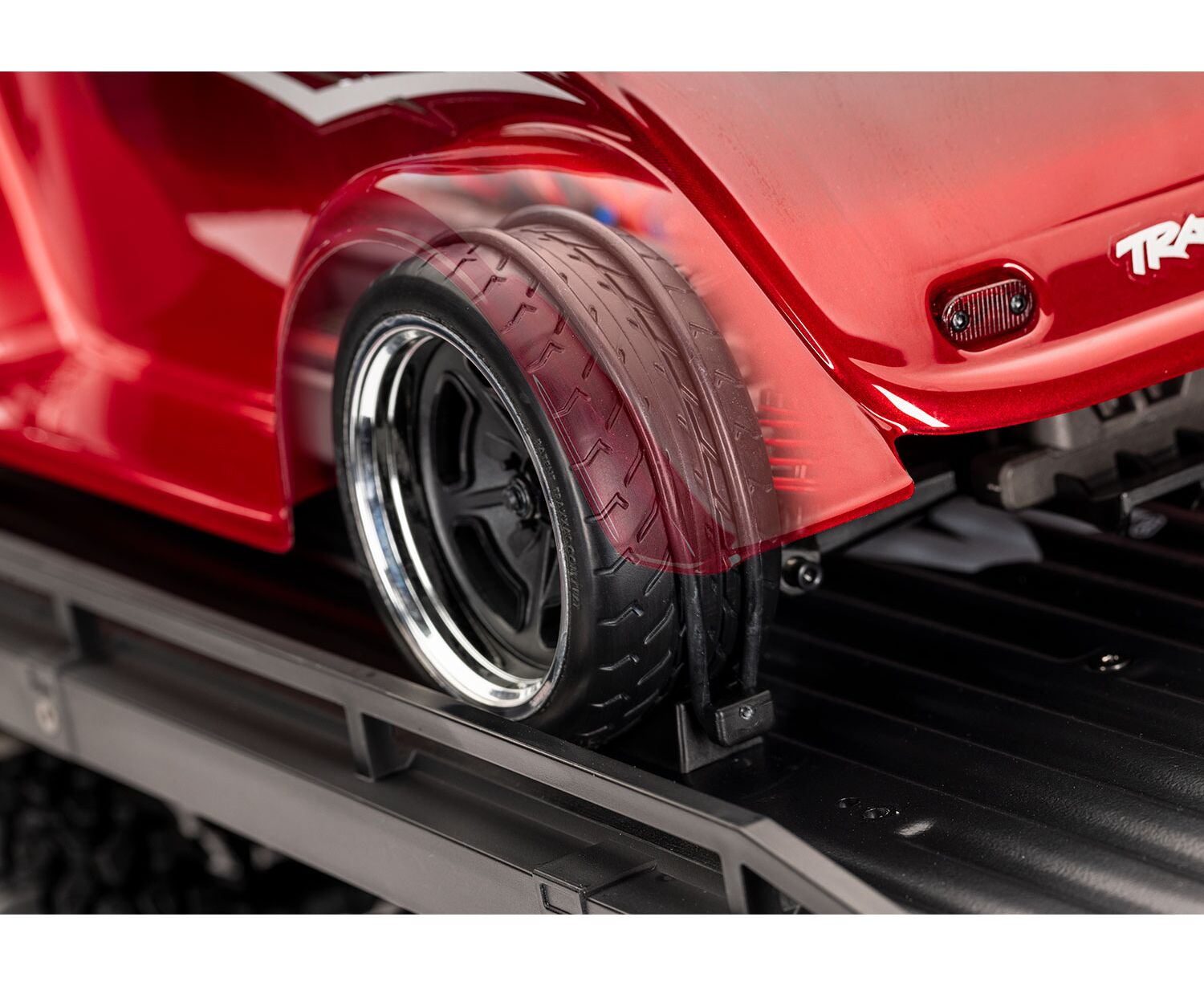

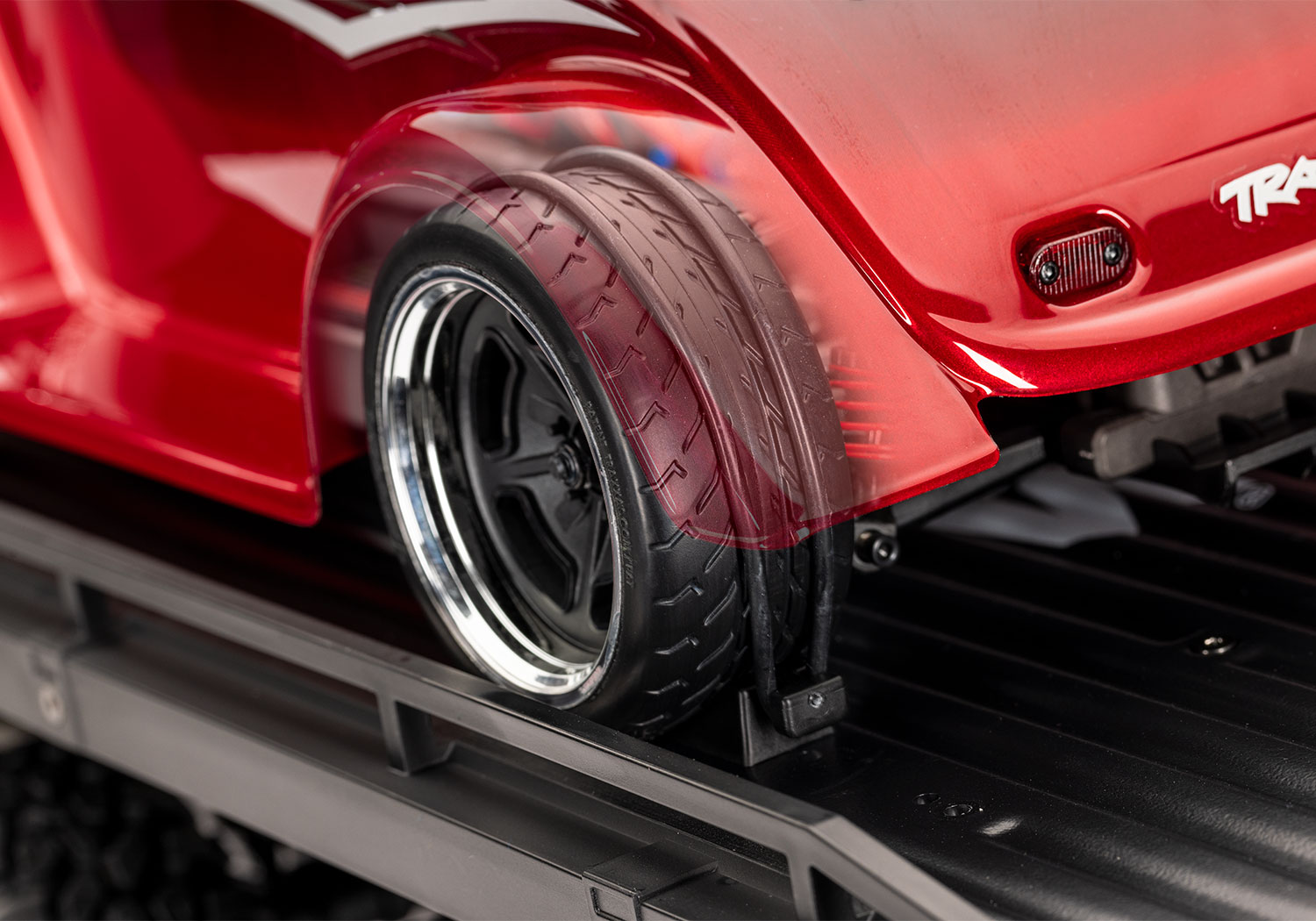

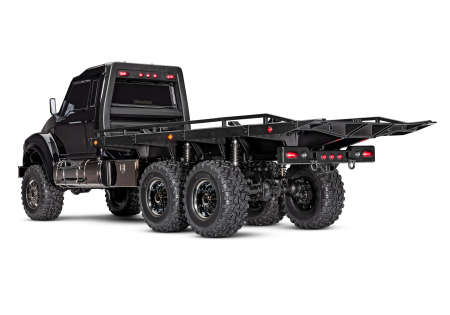

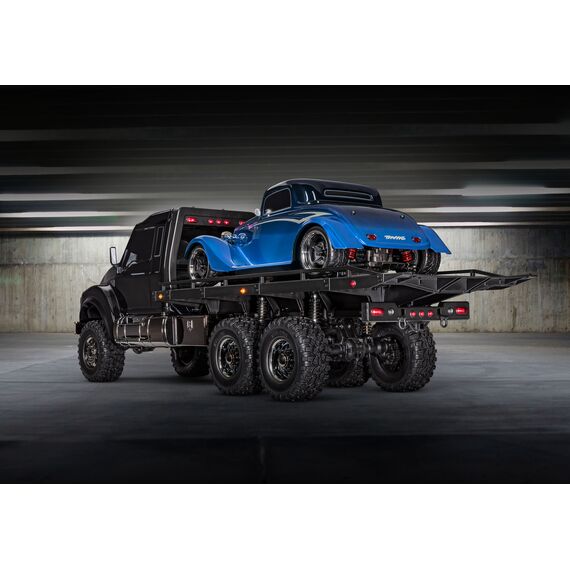

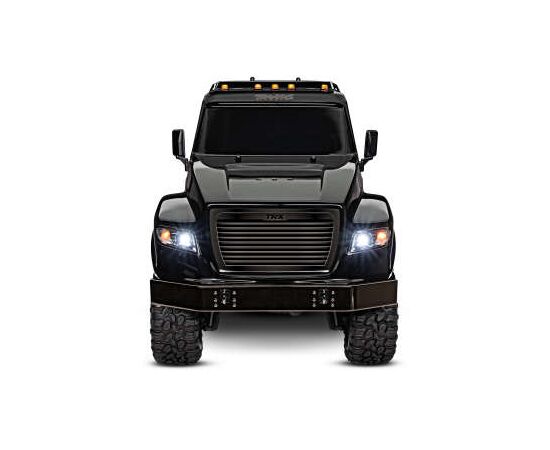

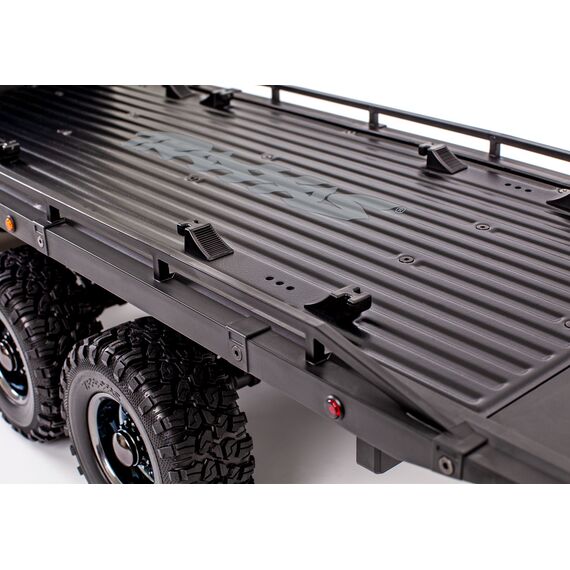

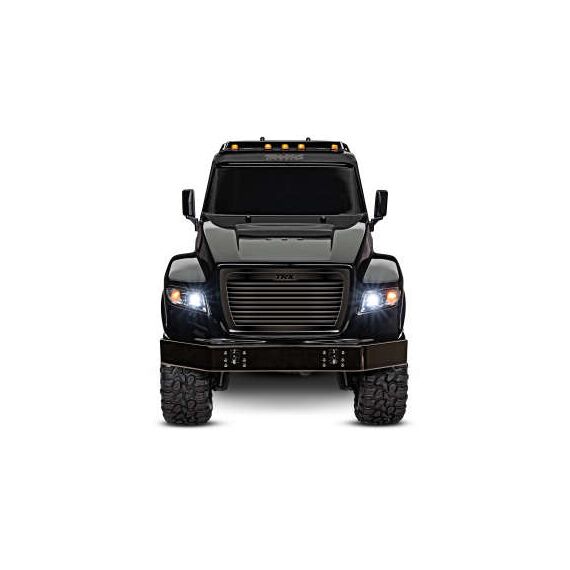

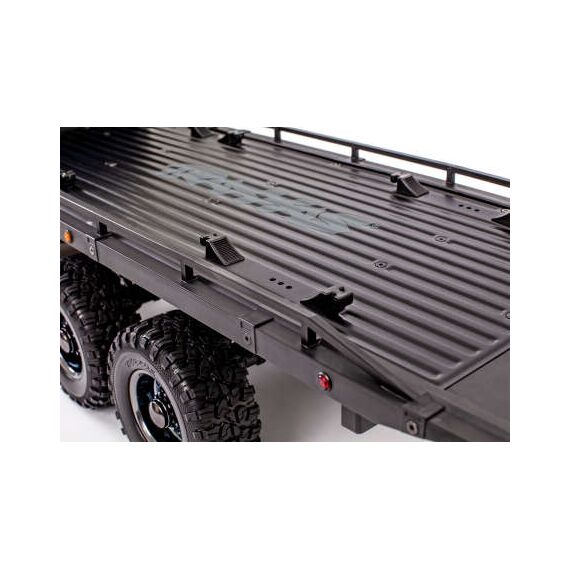

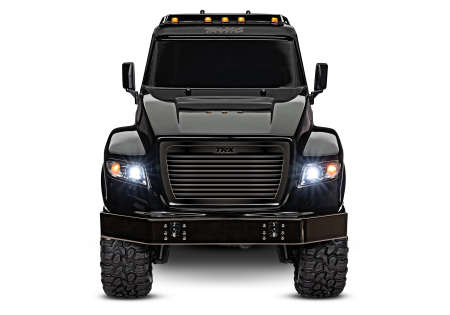

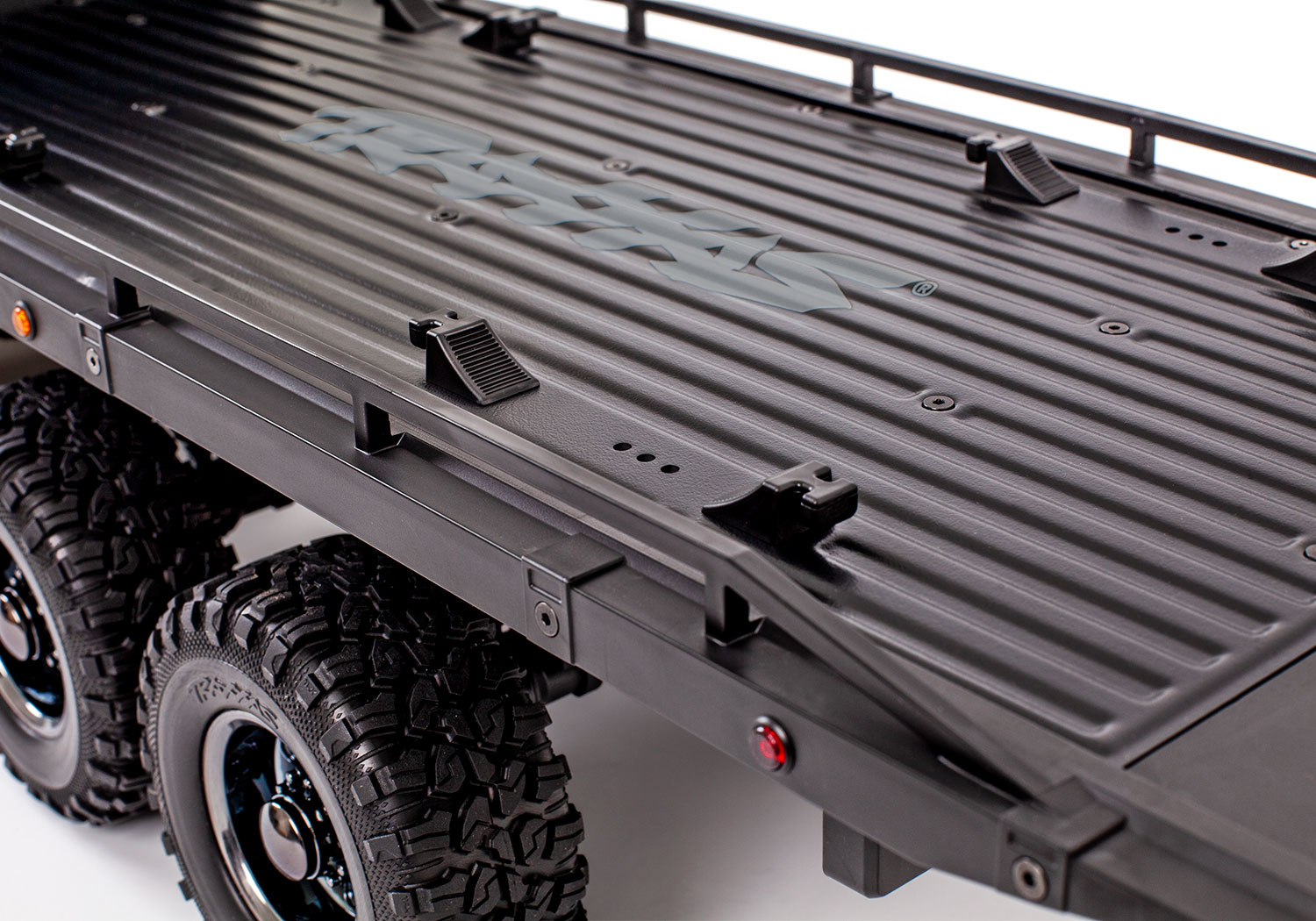

Adjustable wheel chocks with tie-down bands on the Ultimate Hauler’s tow bed accommodate any 4-Tec 2.0 or 3.0 model and keep precious cargo secure. A powerful and true-to-scale LED lighting system with 25 individual lights makes twilight adventures a reality.

TRX-6 Capability

TRX-6 CAPABILITY

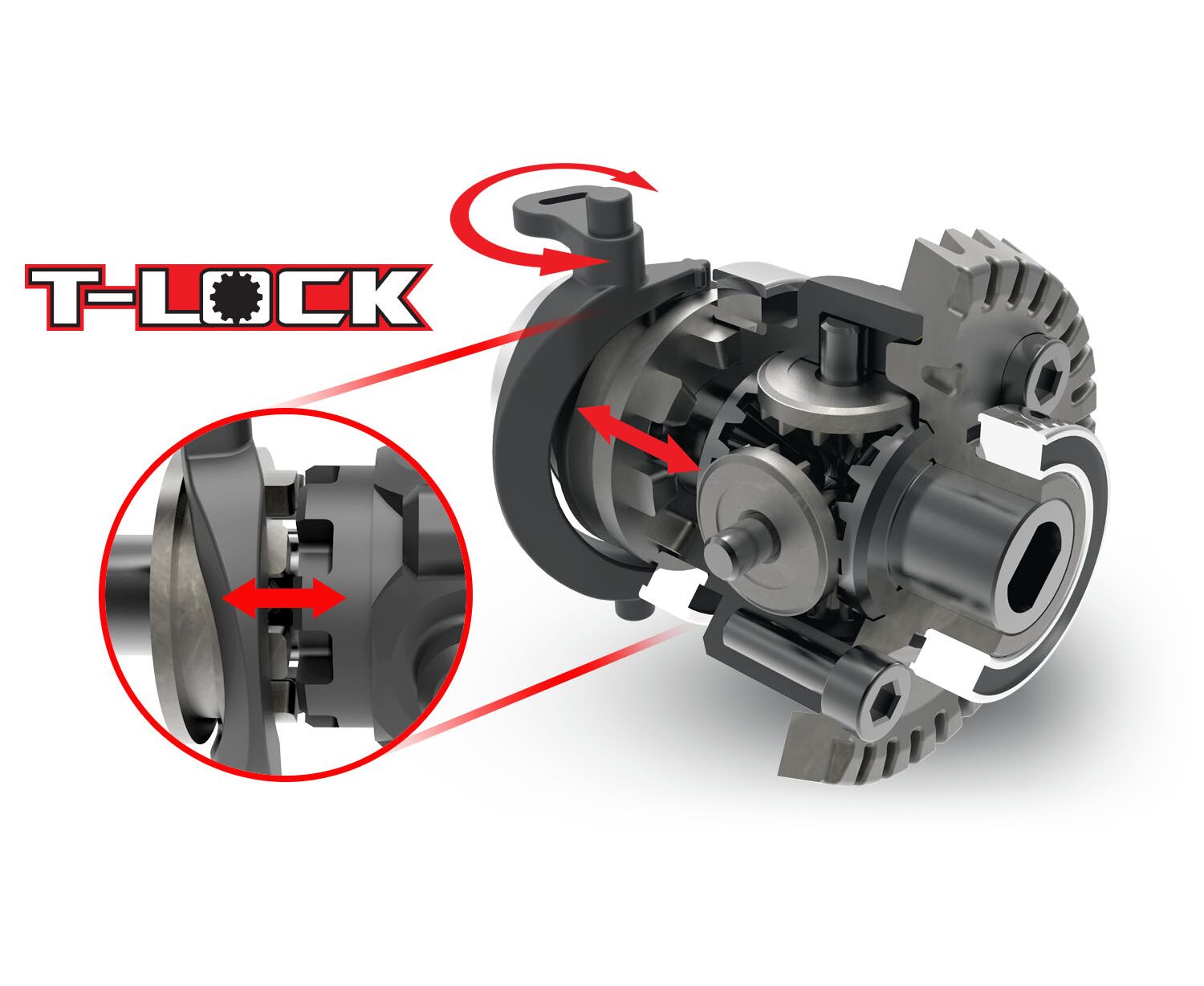

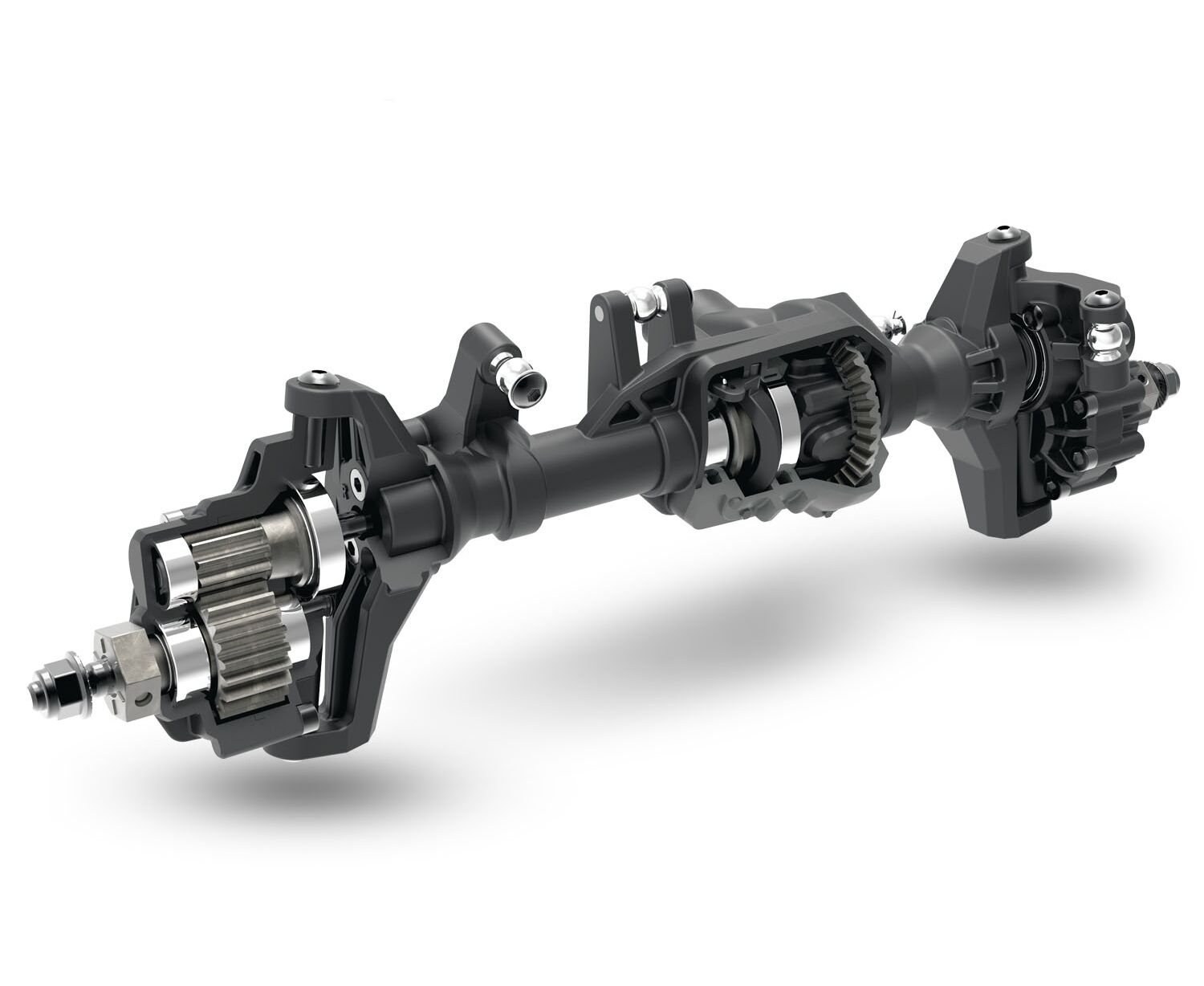

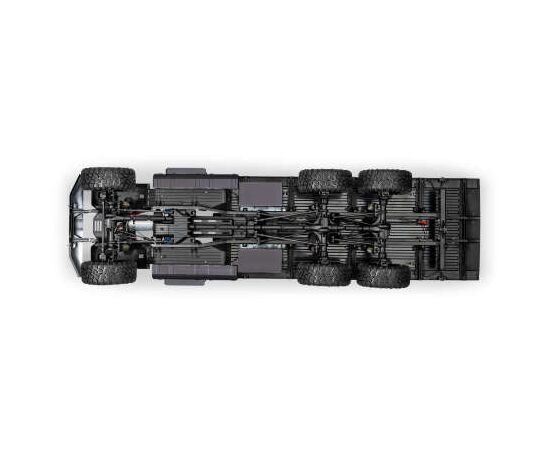

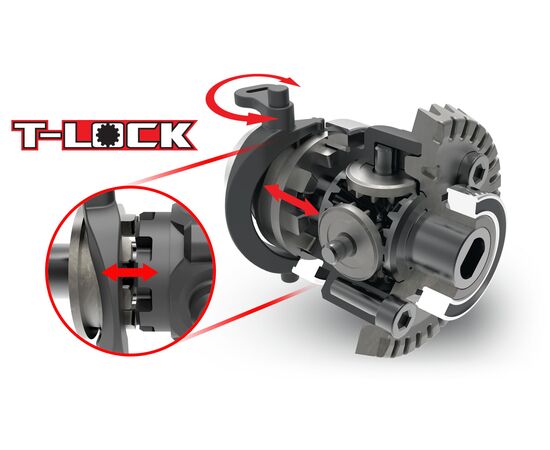

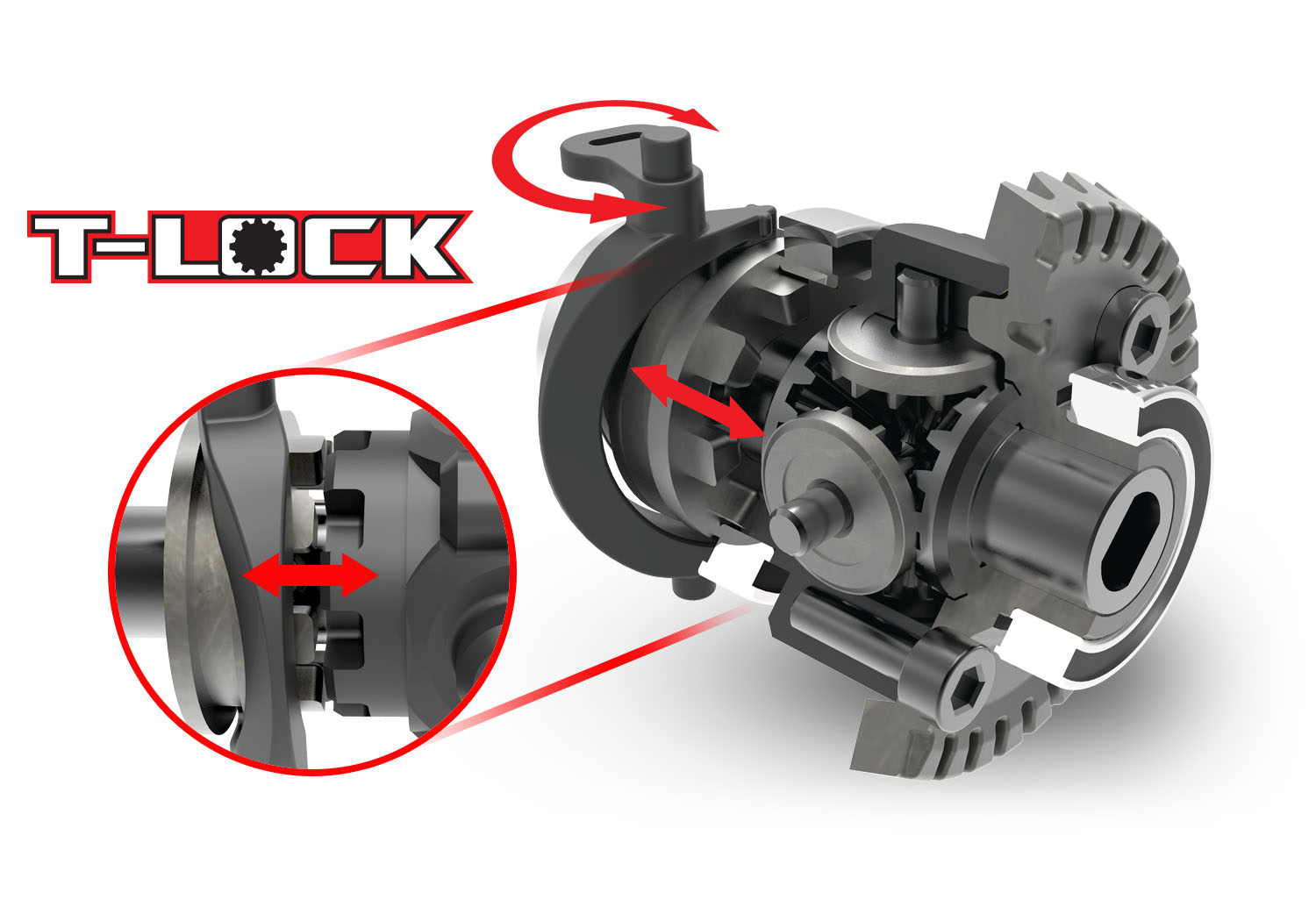

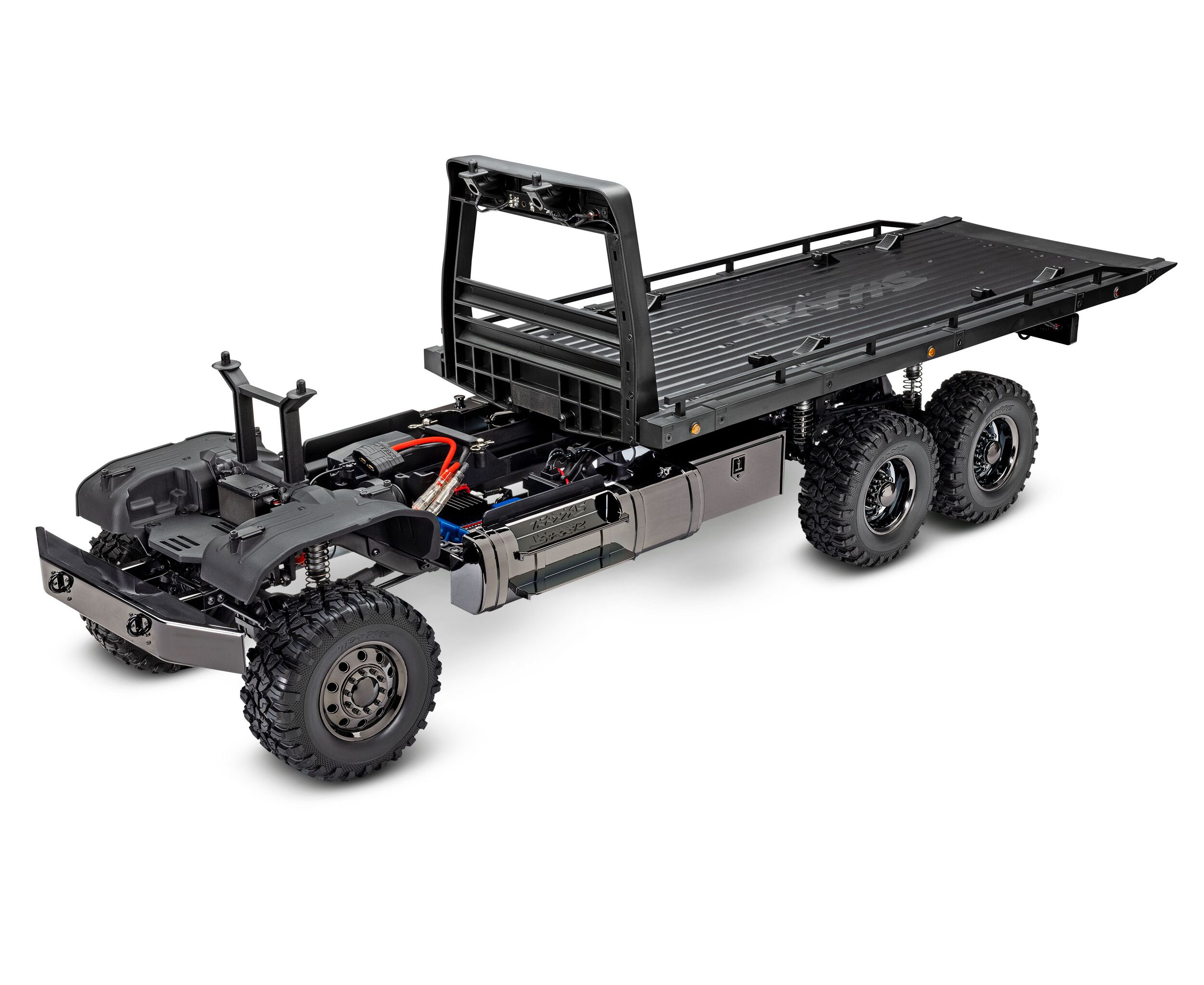

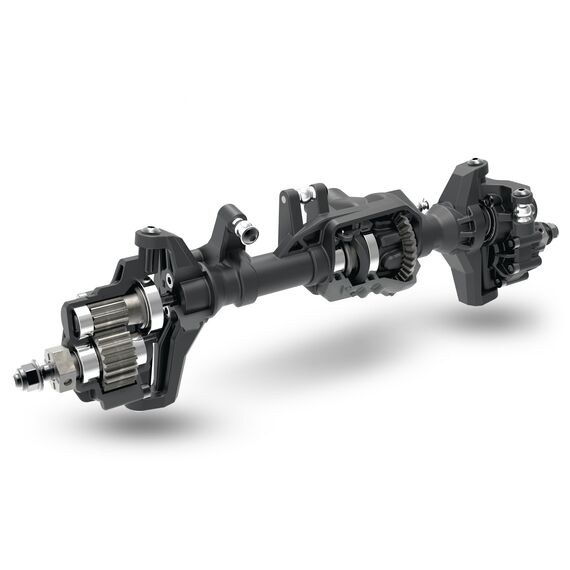

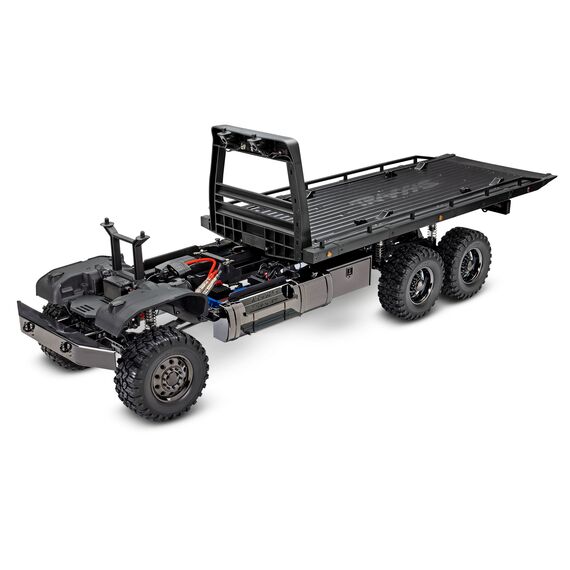

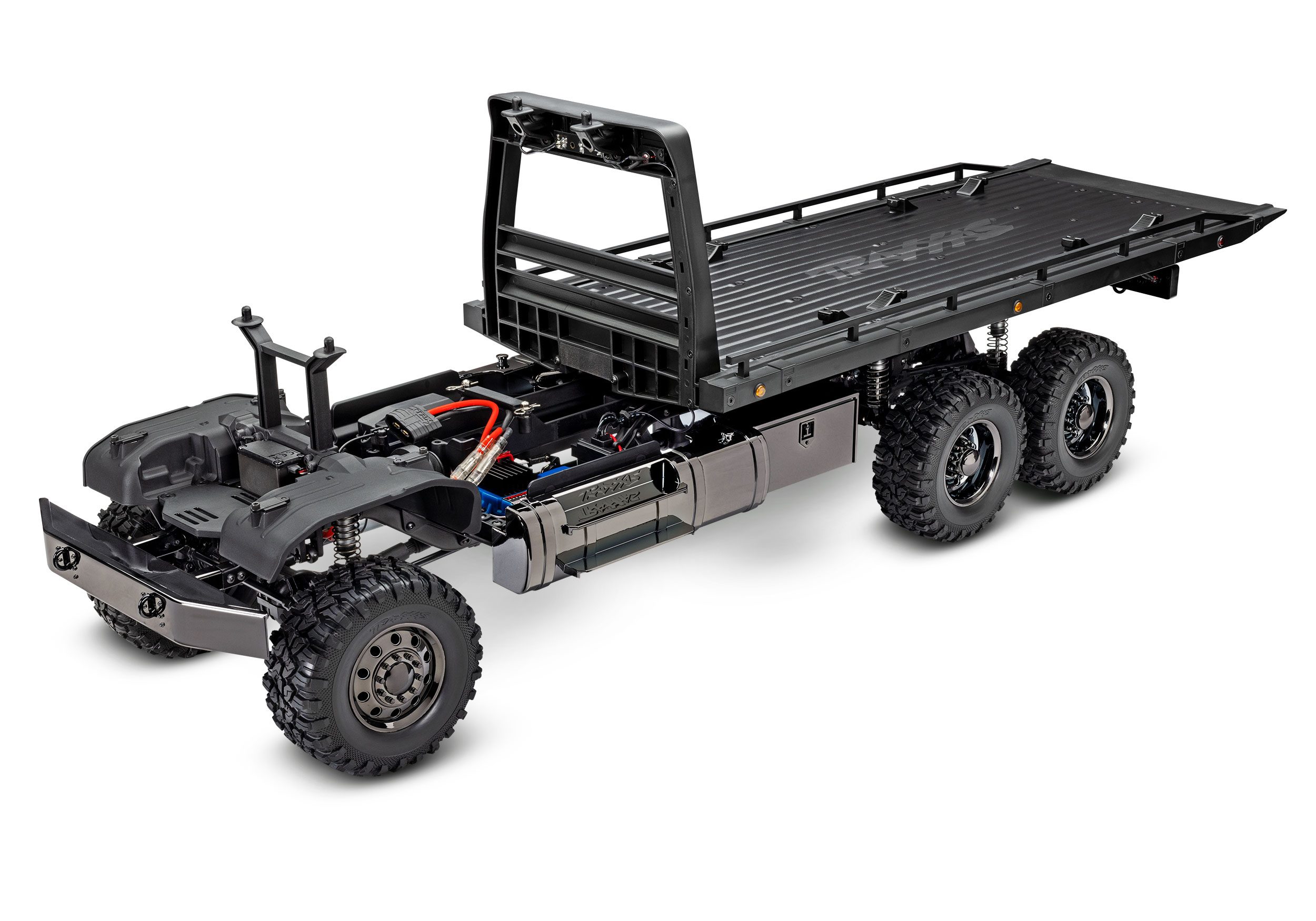

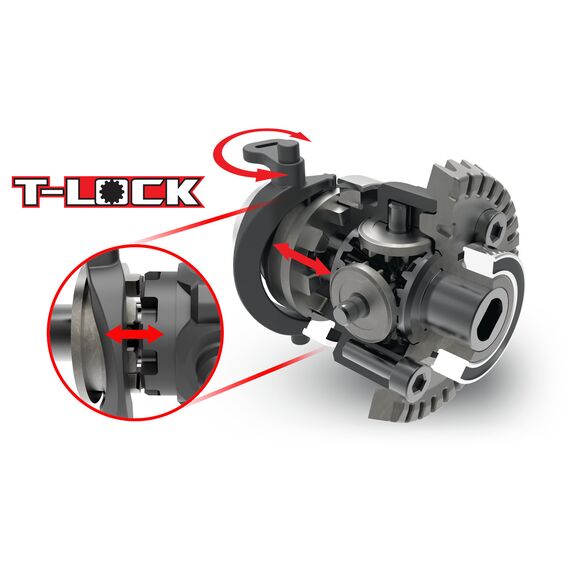

Built on the supremely capable TRX-6 platform, the Ultimate RC Hauler uses six drive wheels to get into the action with trail-conquering grip of three remote-locking T-Lock differentials to get back out. A remote-shifting high/low range transmission amplifies the motor’s torque down low to move heavy loads while still providing ample cruising speed when unloaded.


INNOVATION

The Ultimate RC Hauler combines proven TRX-6 technology with detailed scale elements to create a whole new way to enjoy the RC experience.

SCALE DETAILS

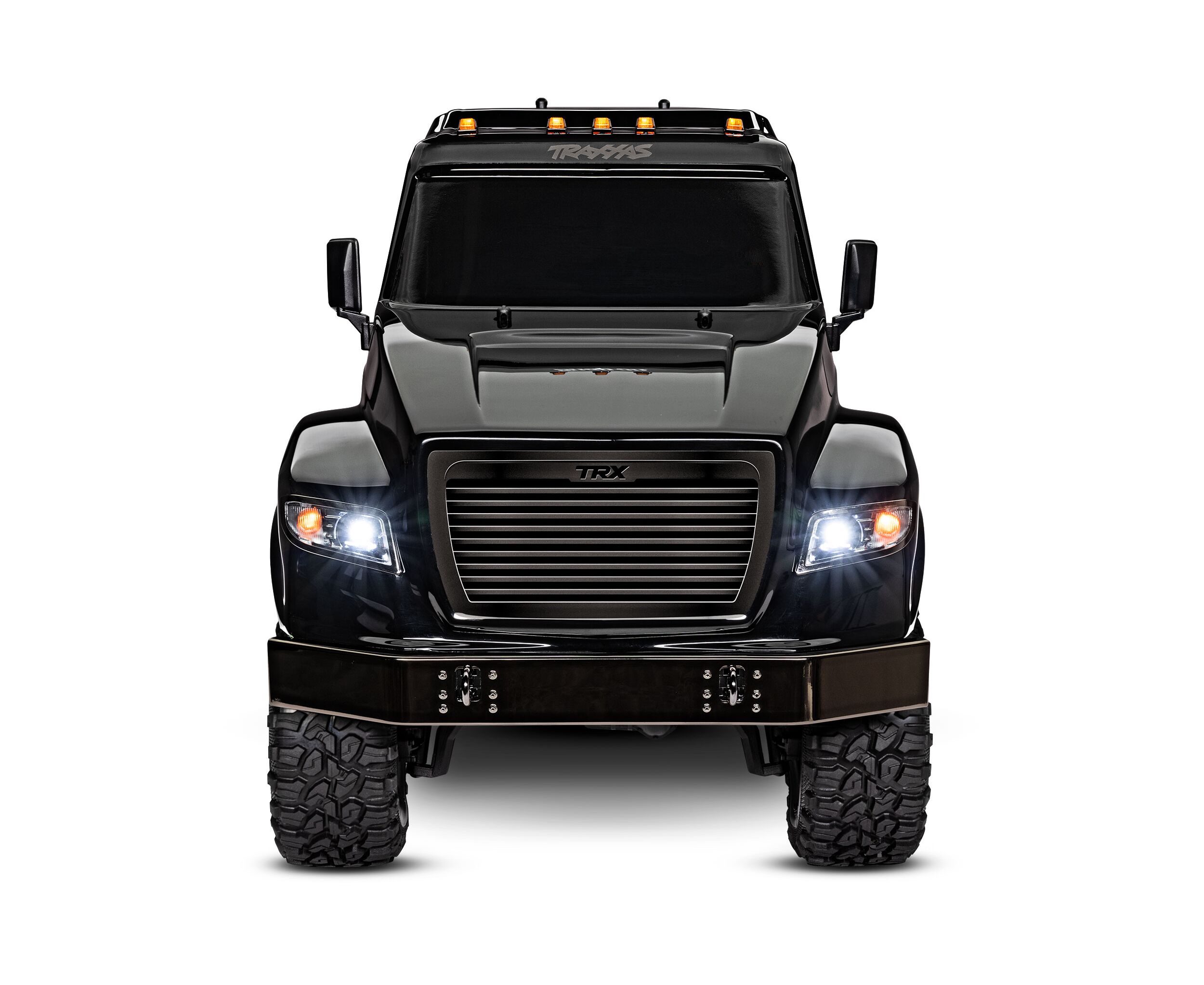

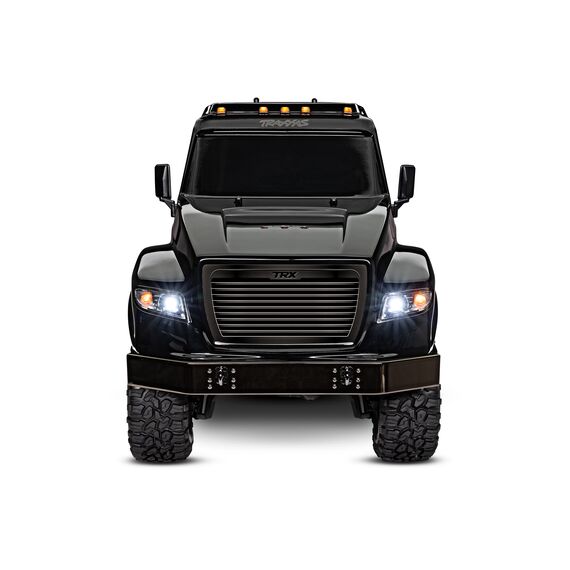

  • The Ultimate RC Hauler checks all the boxes with molded side mirrors, unique bumpers, gas tanks, and big rig wheels. LED lighting on the cab and tow bed score extra detail points whether you’re cruising unloaded or carrying your prized 4-Tec.
  • DETAILS

Get a closer look at the technology and detail that put the Ultimate RC Hauler in a class of its own.

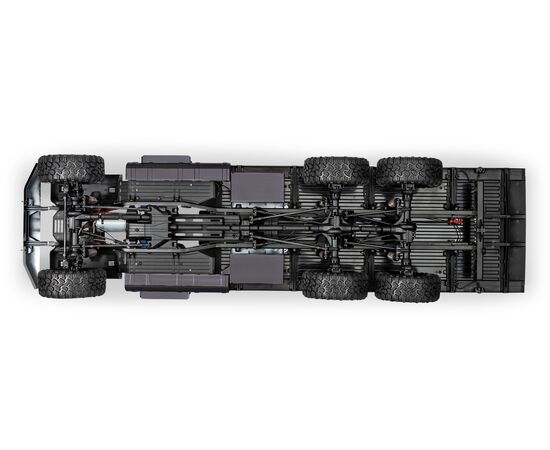

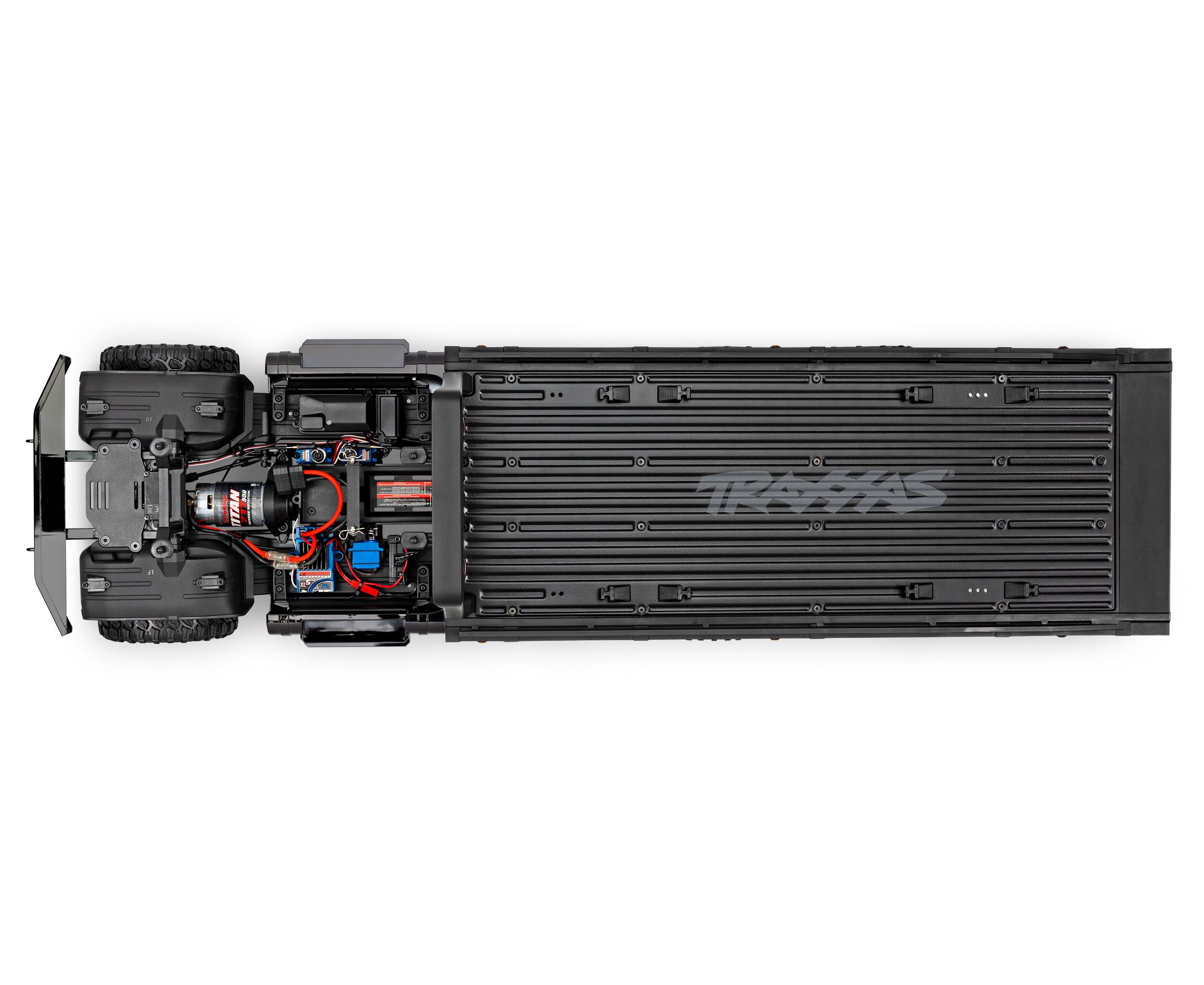

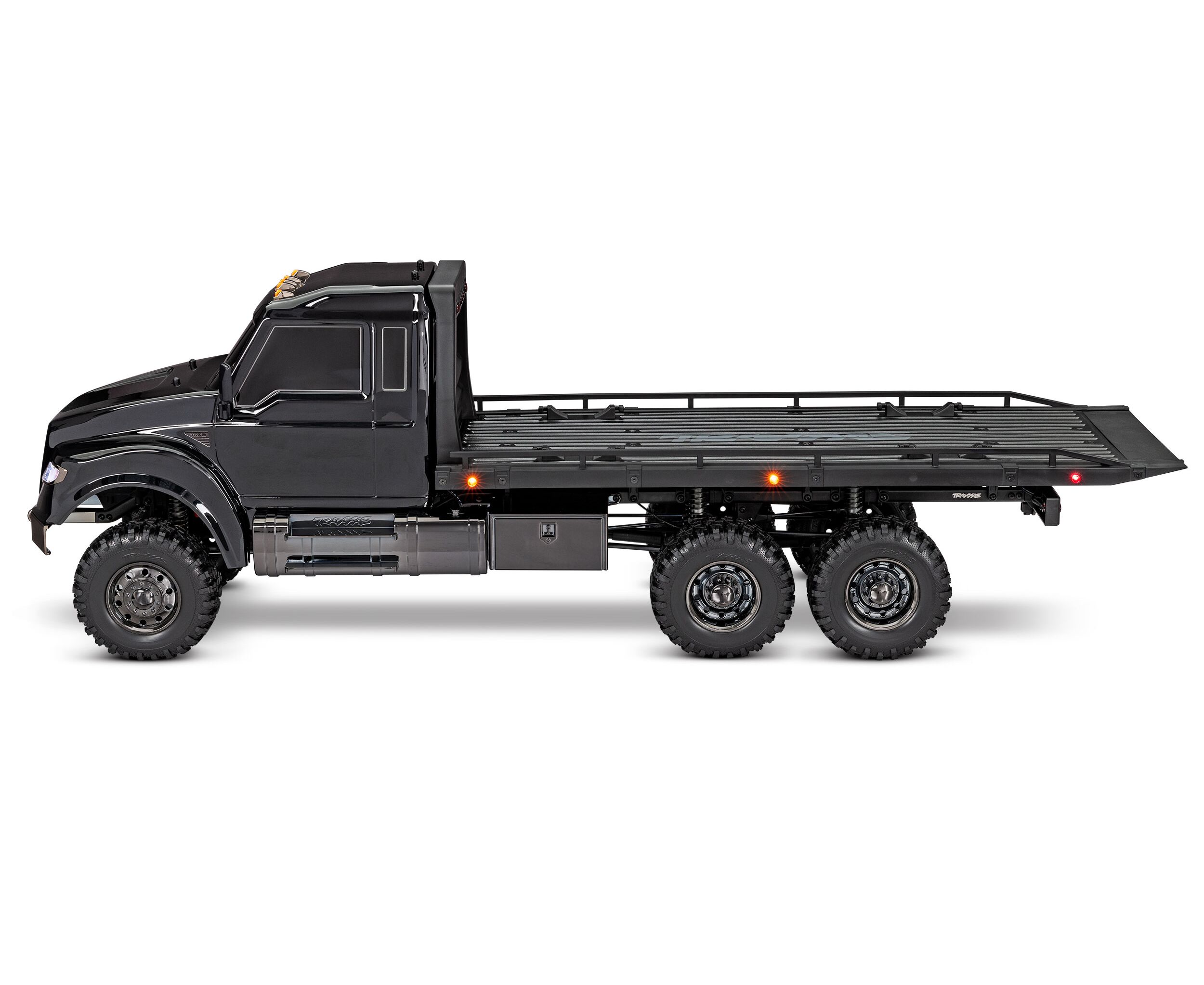

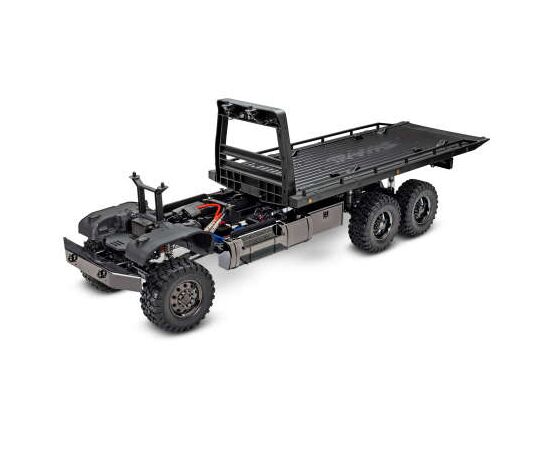

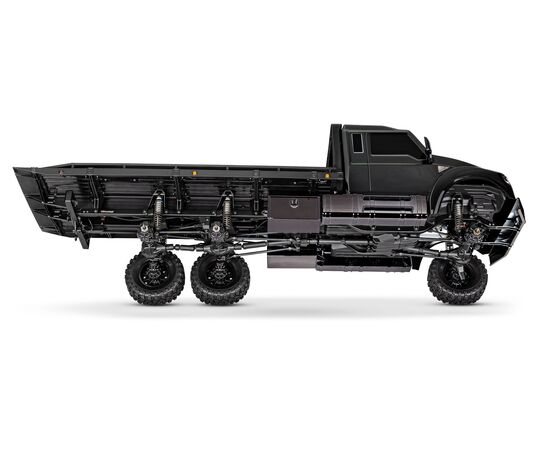

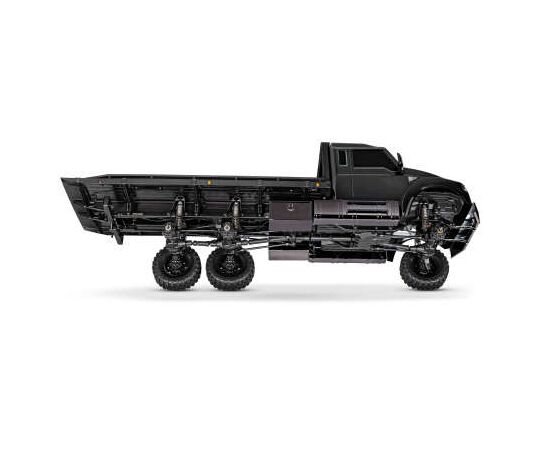

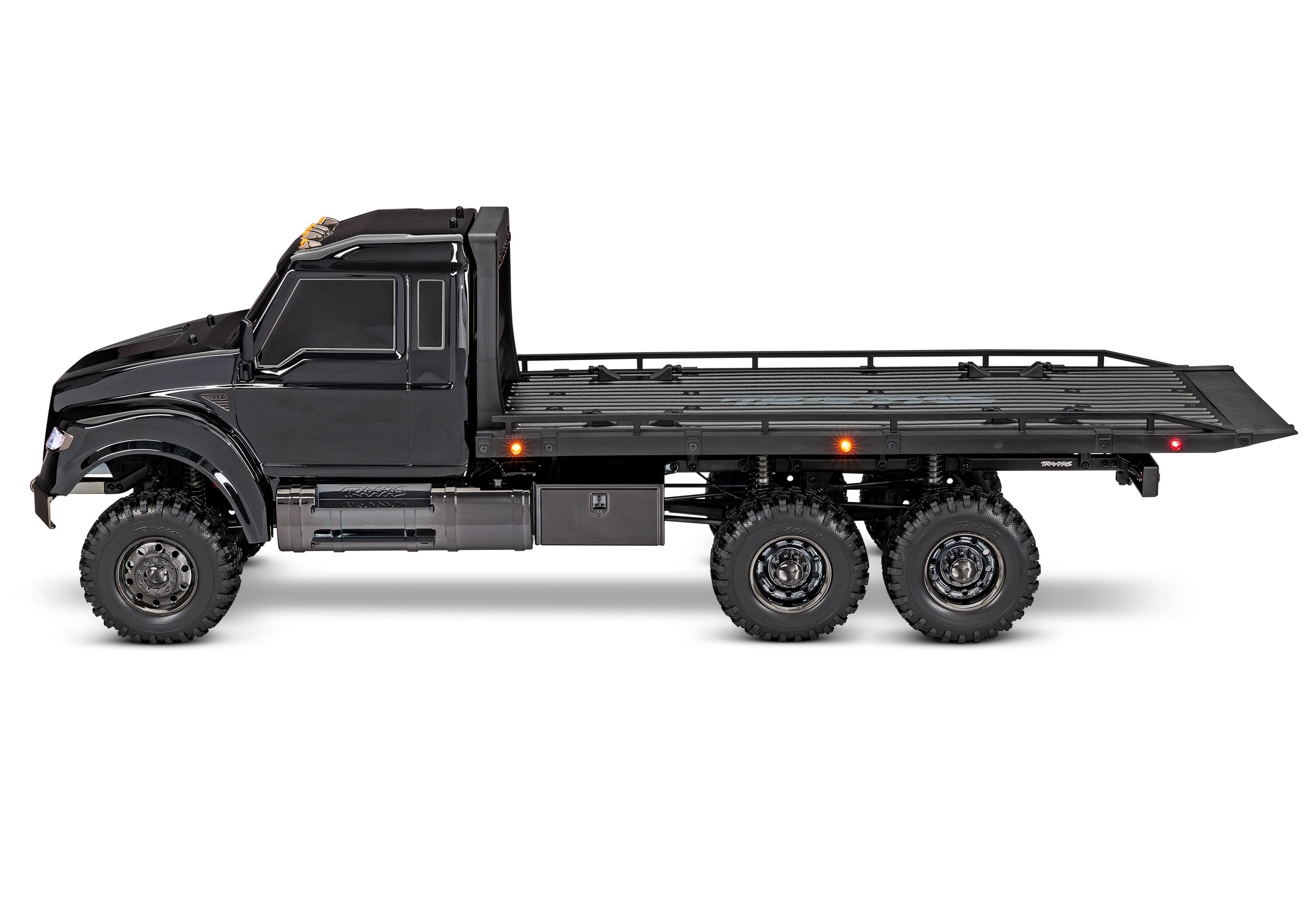

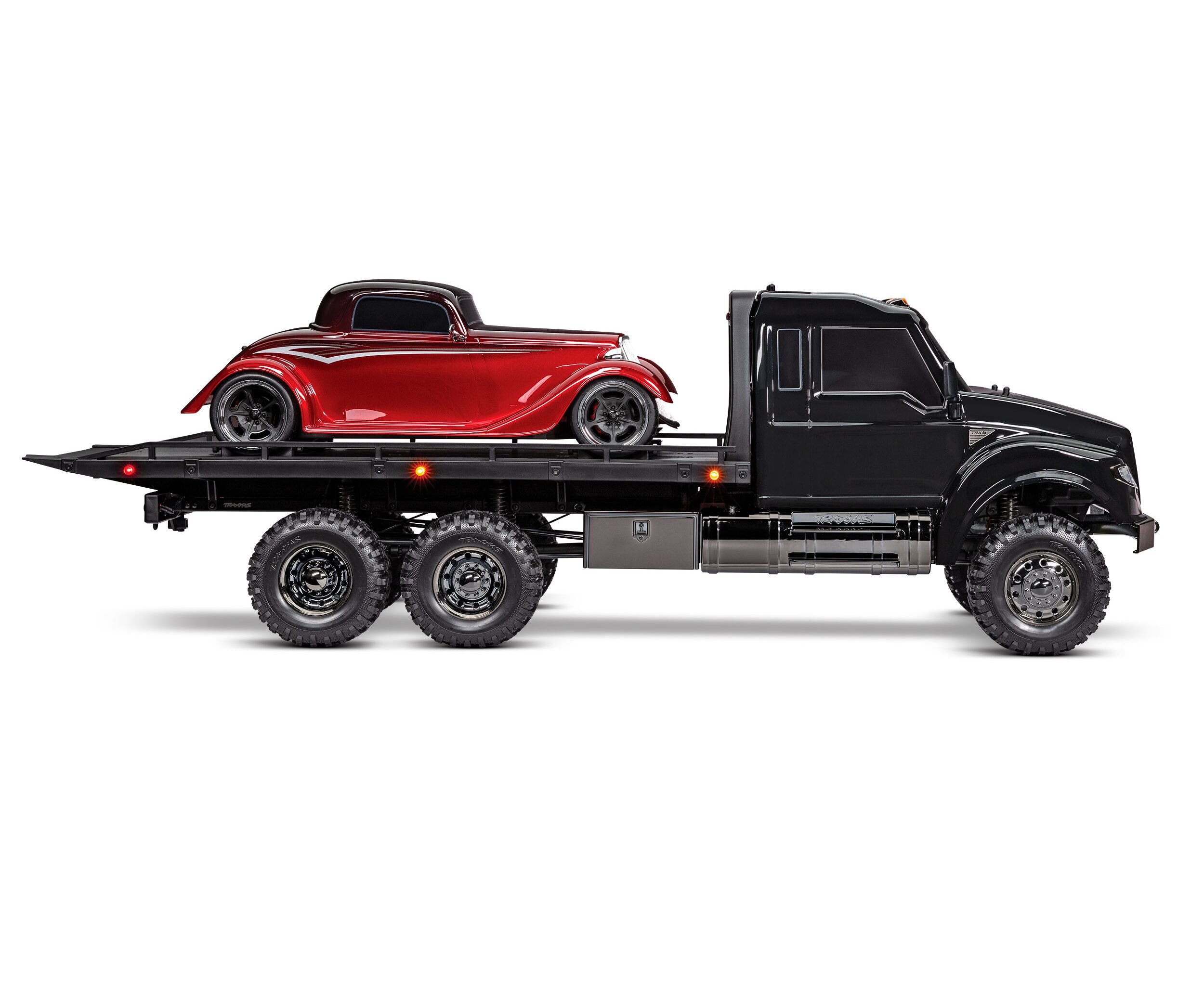

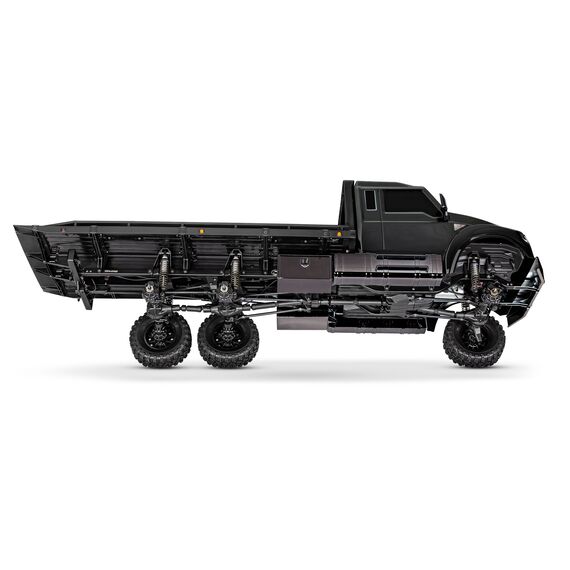

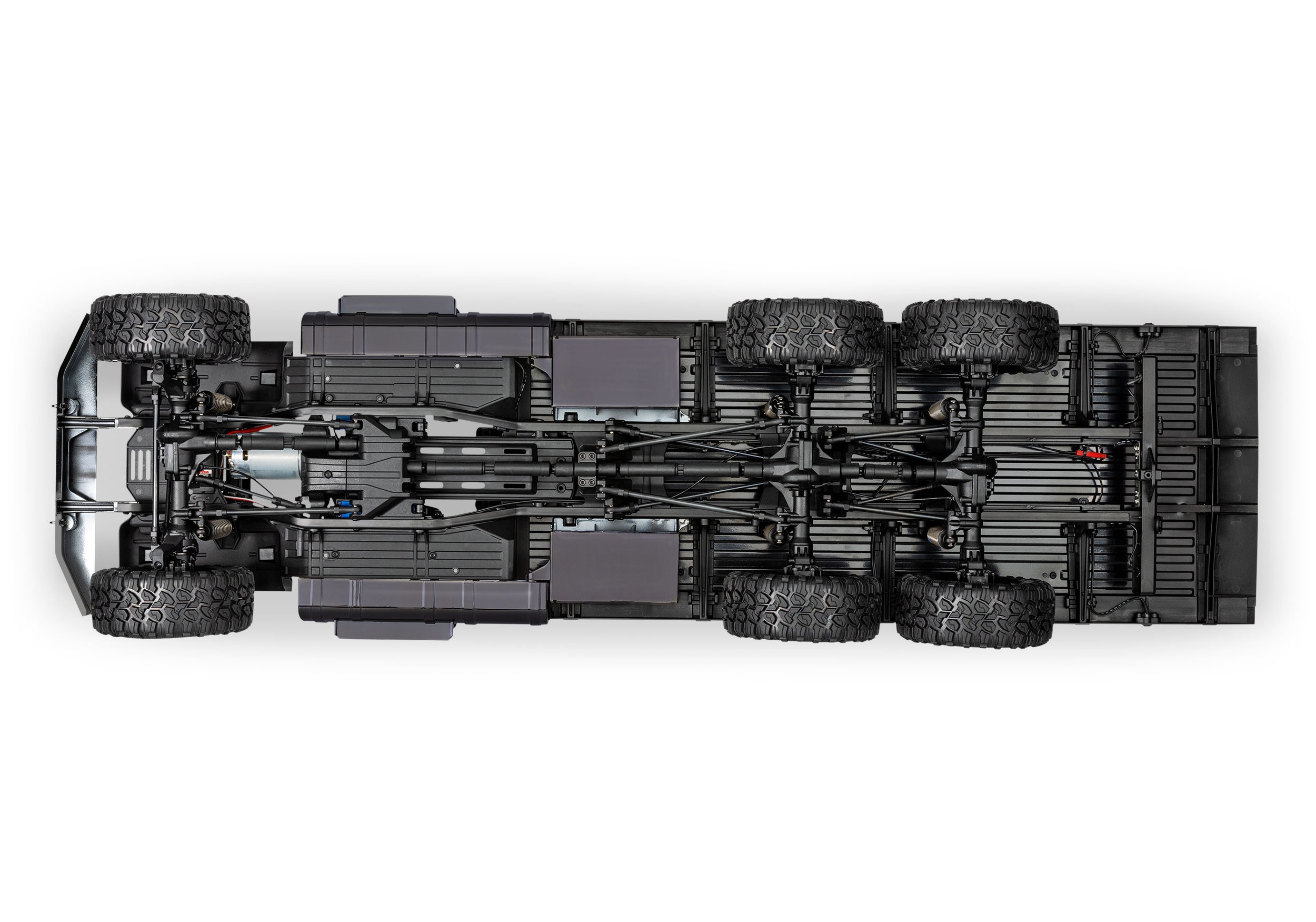

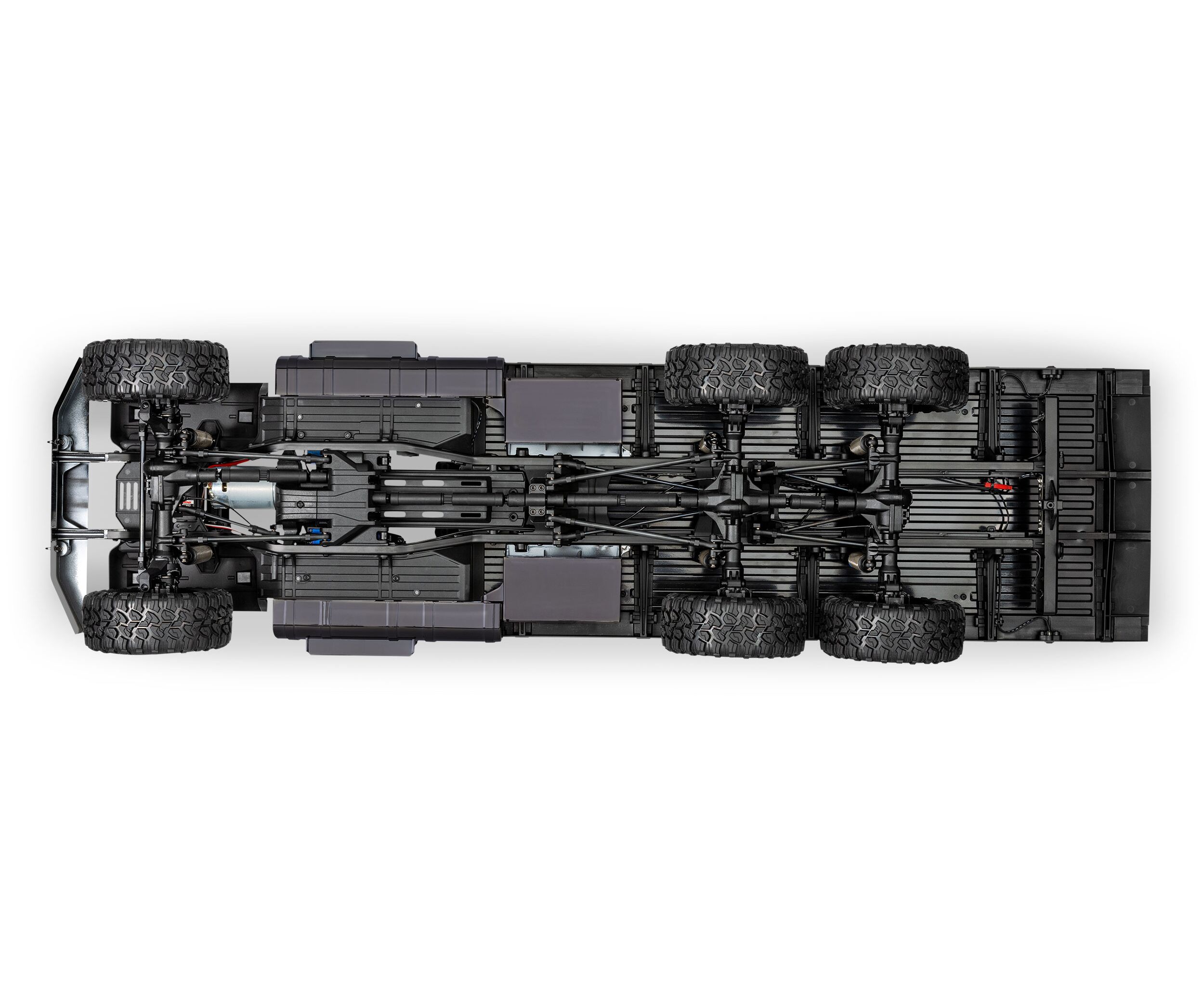

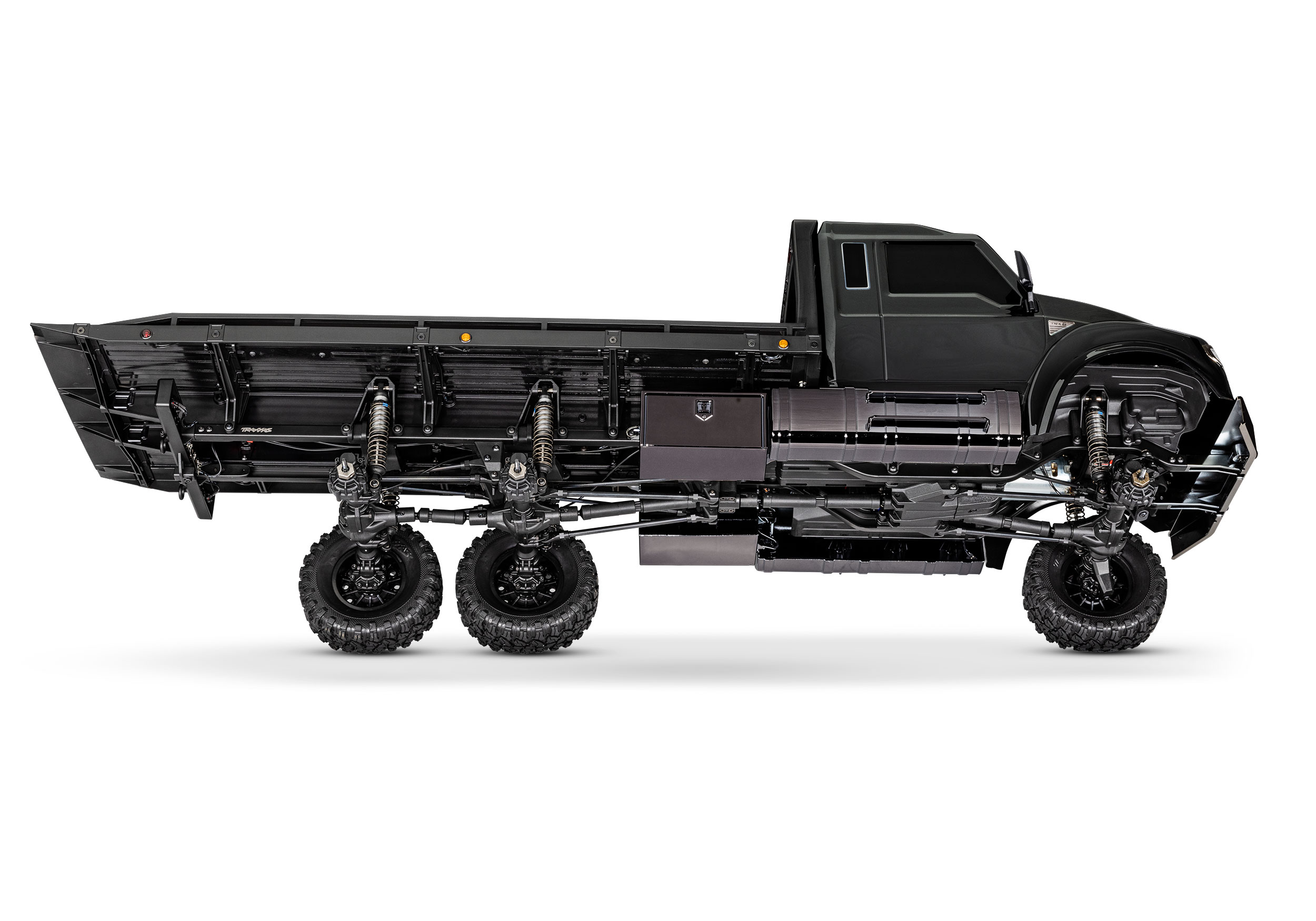

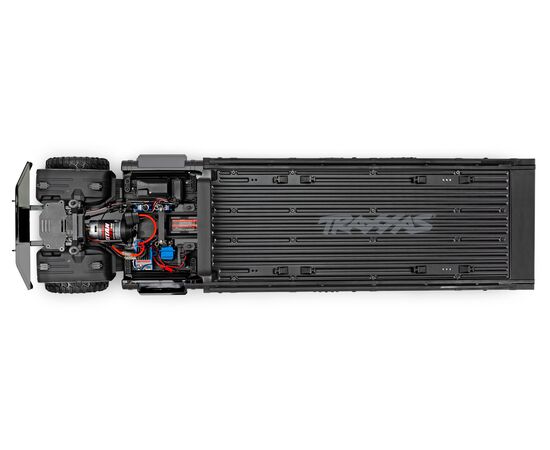

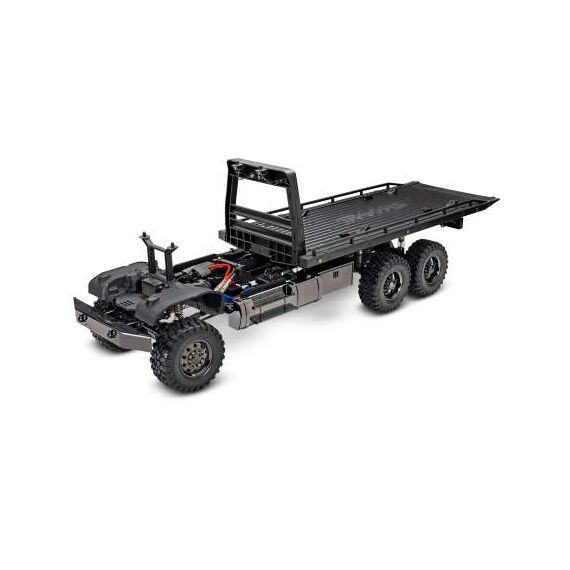

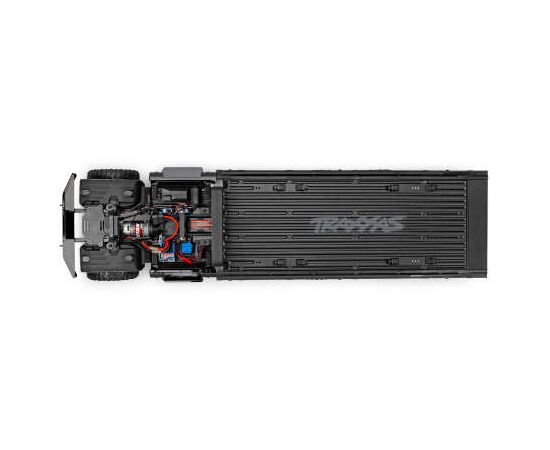

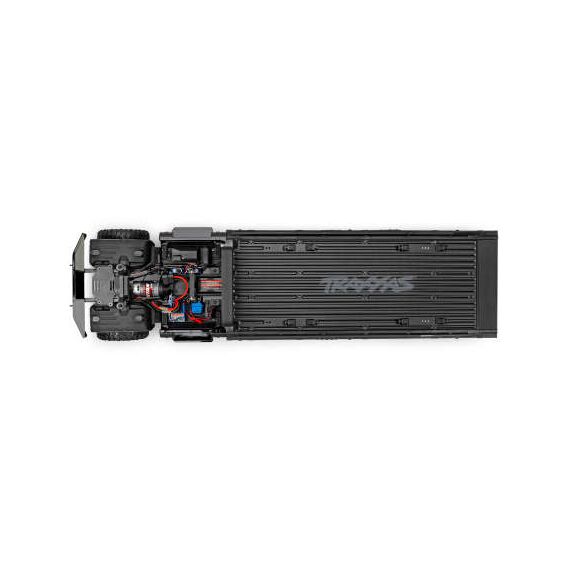

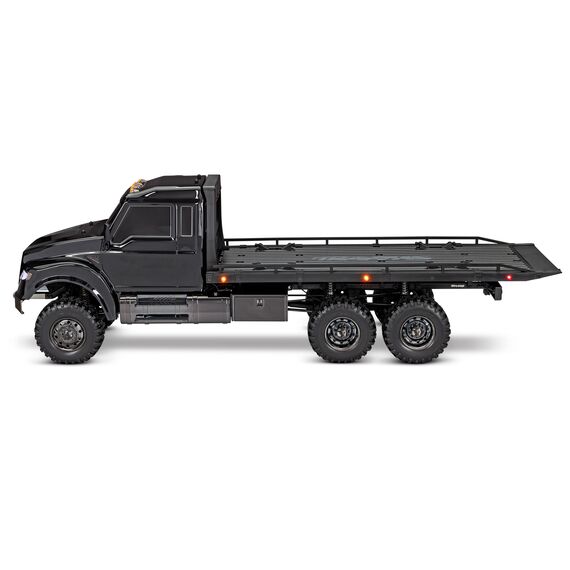

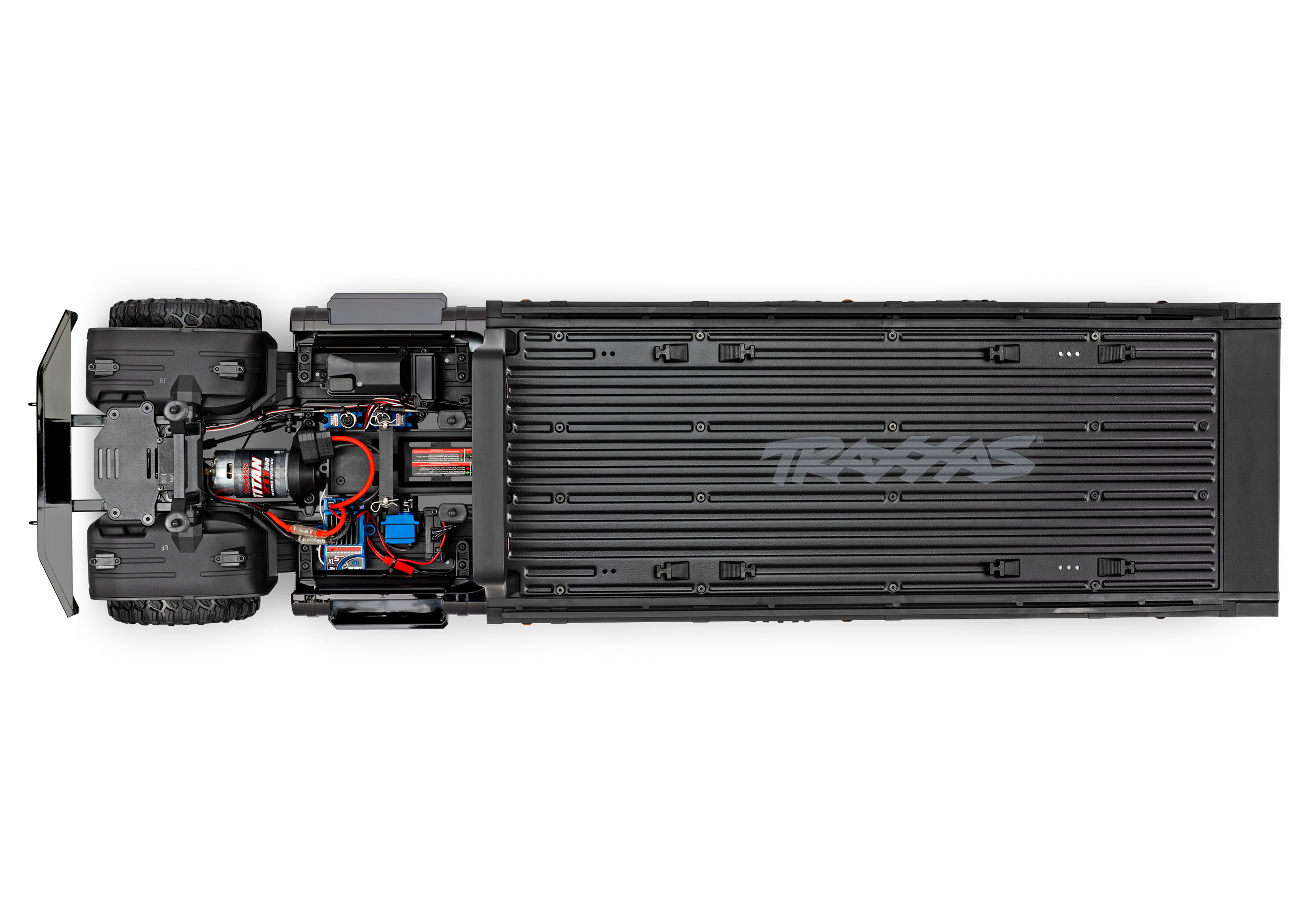

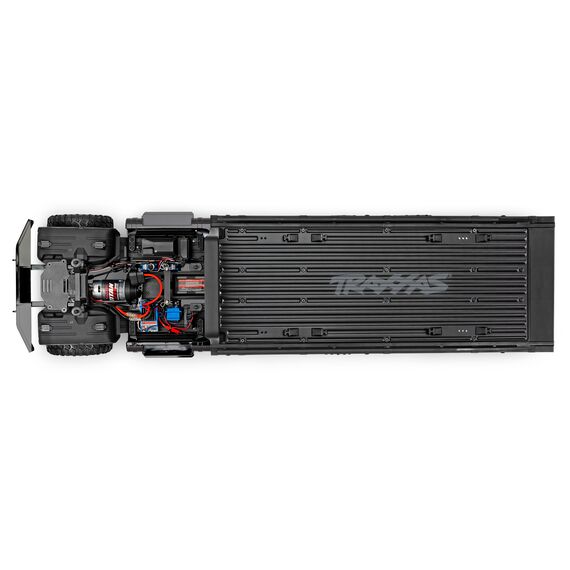

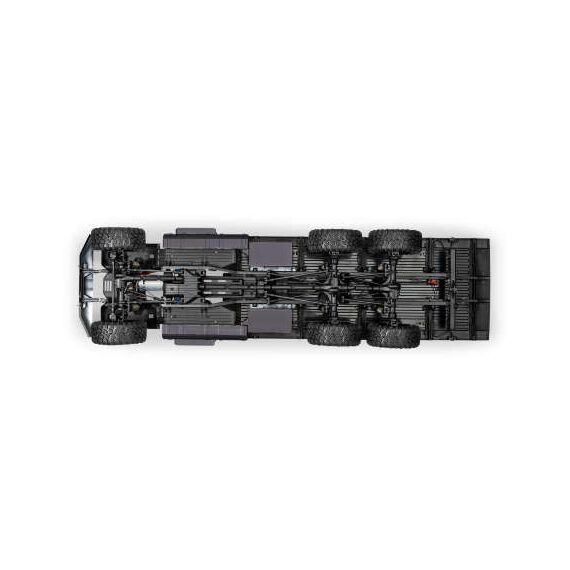

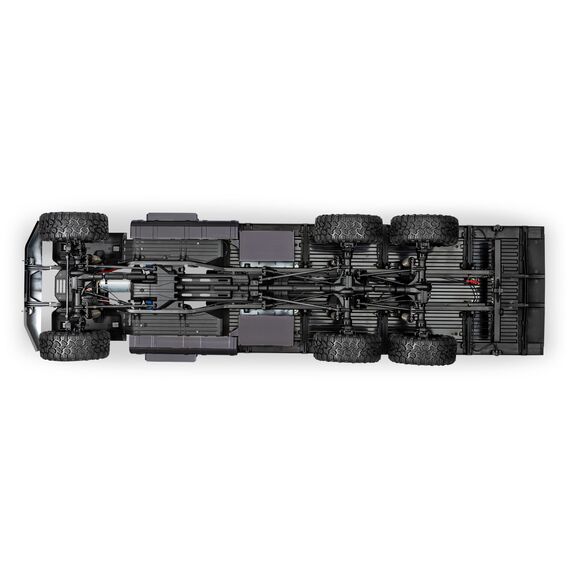

TRX-6 Flatbed Hauler - Side Chassis

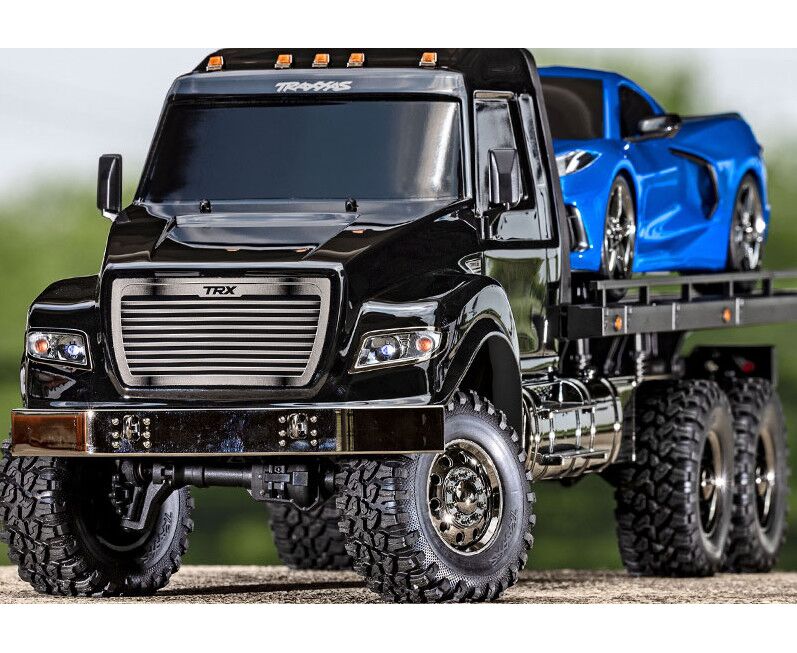

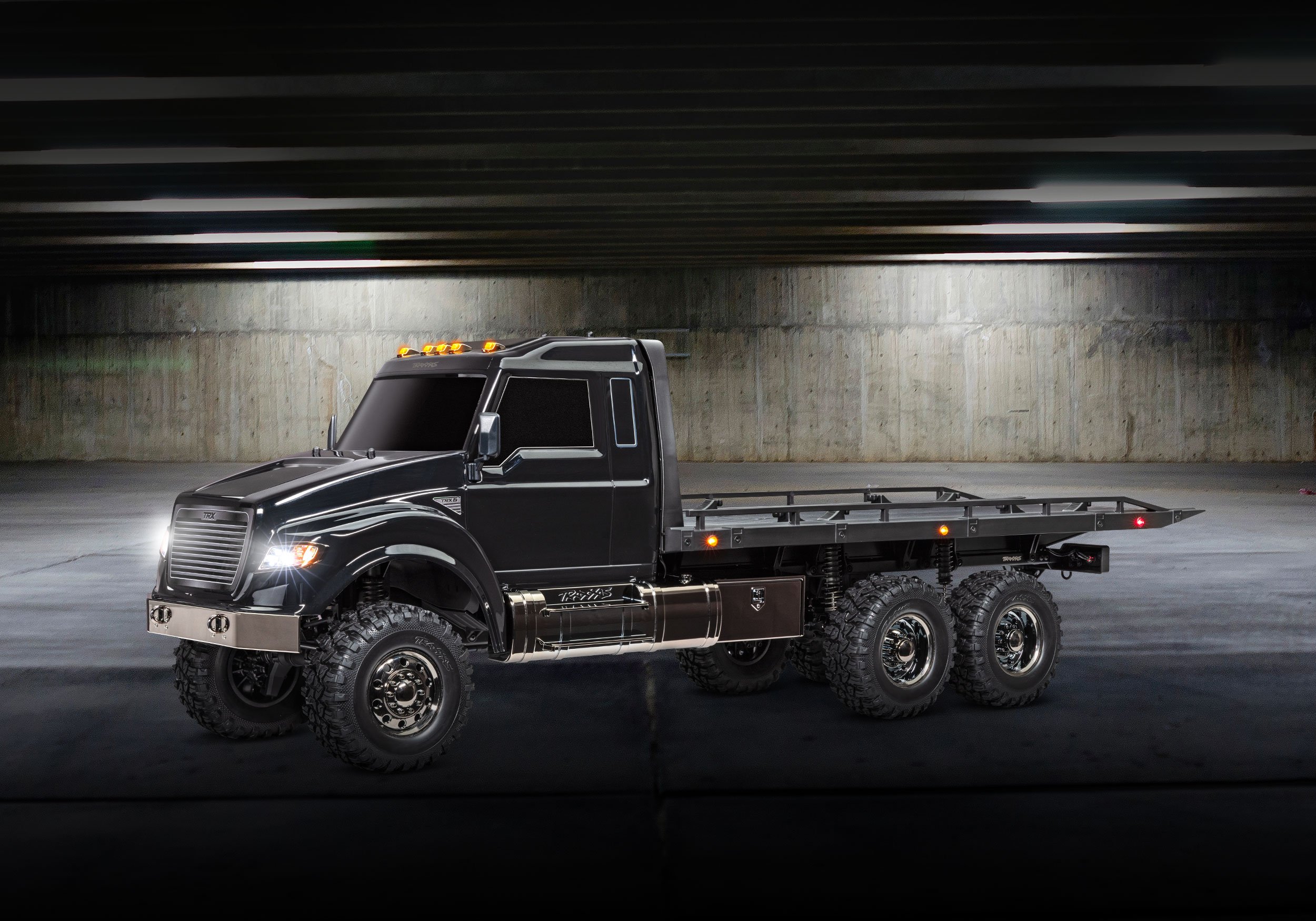

Detailed Truck Body

Detailed Truck Body

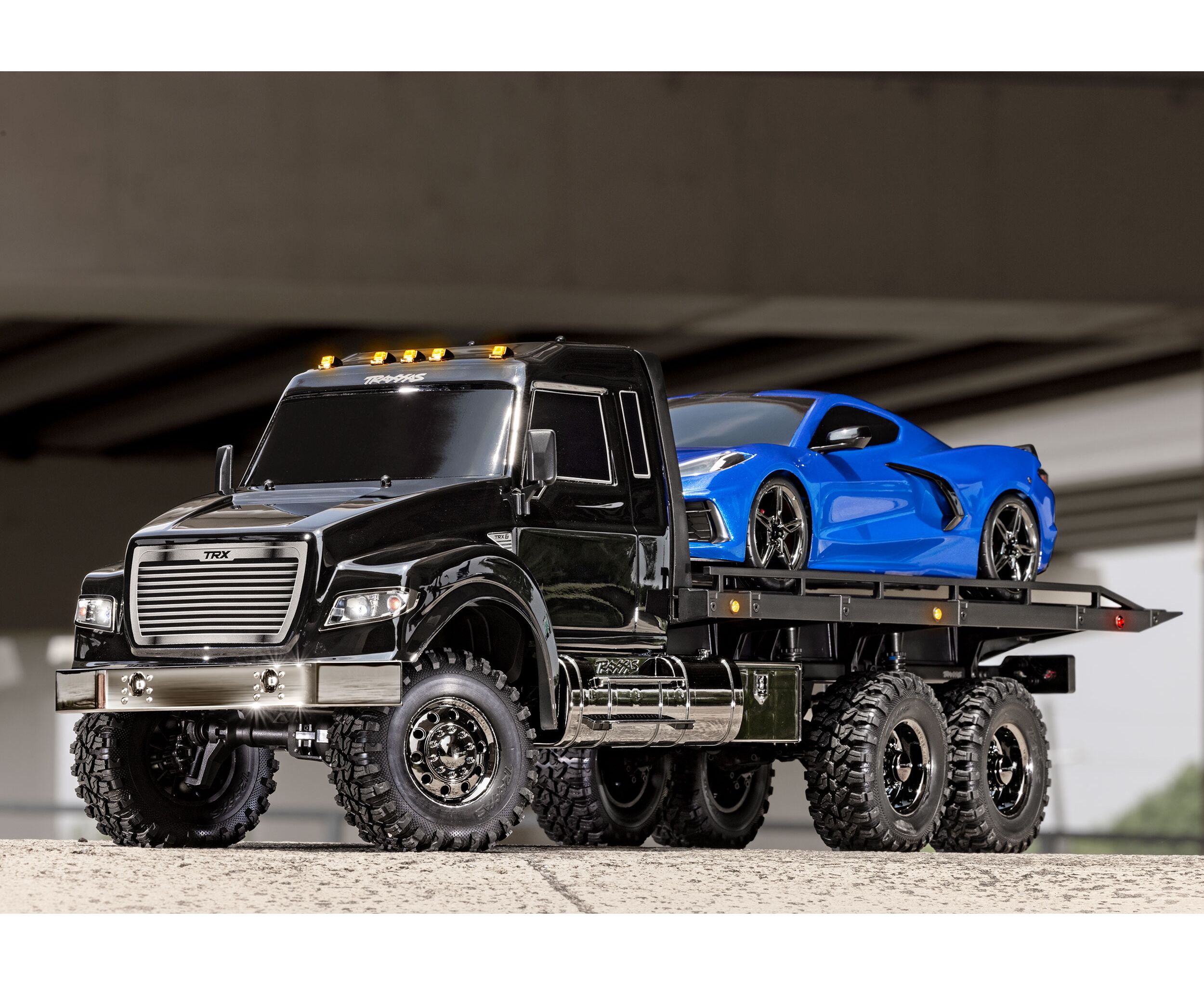

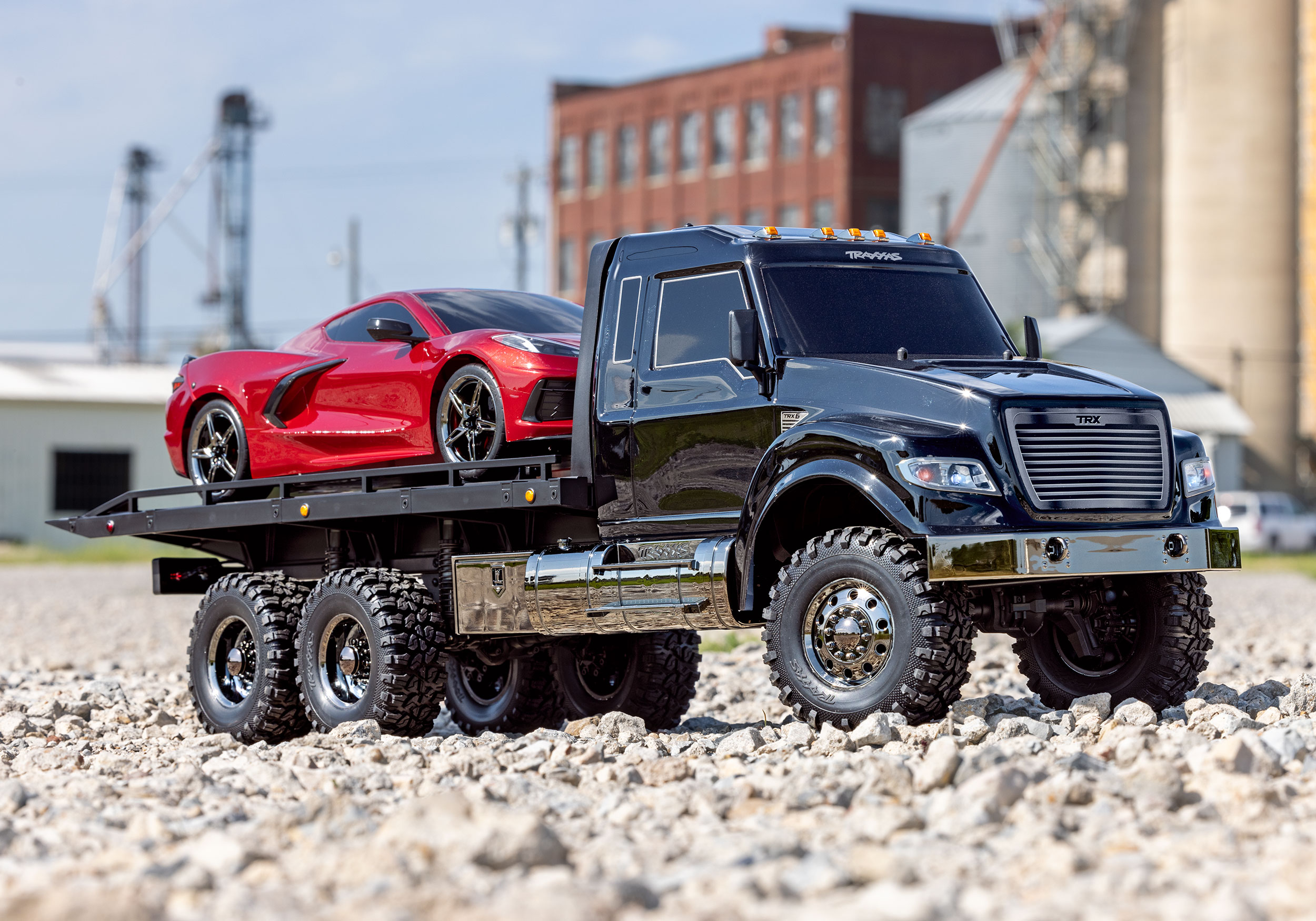

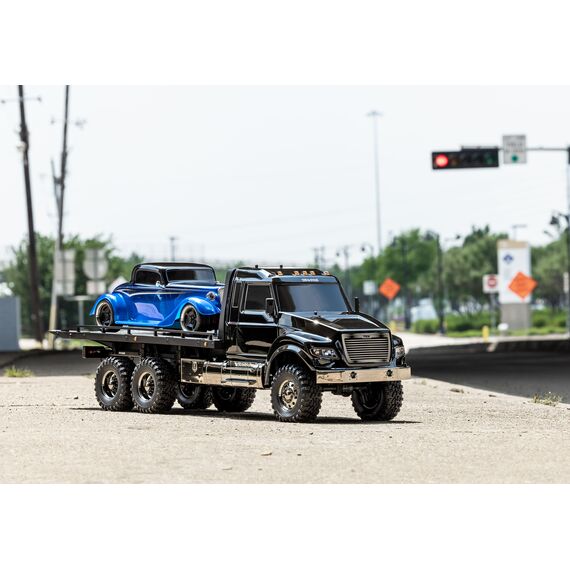

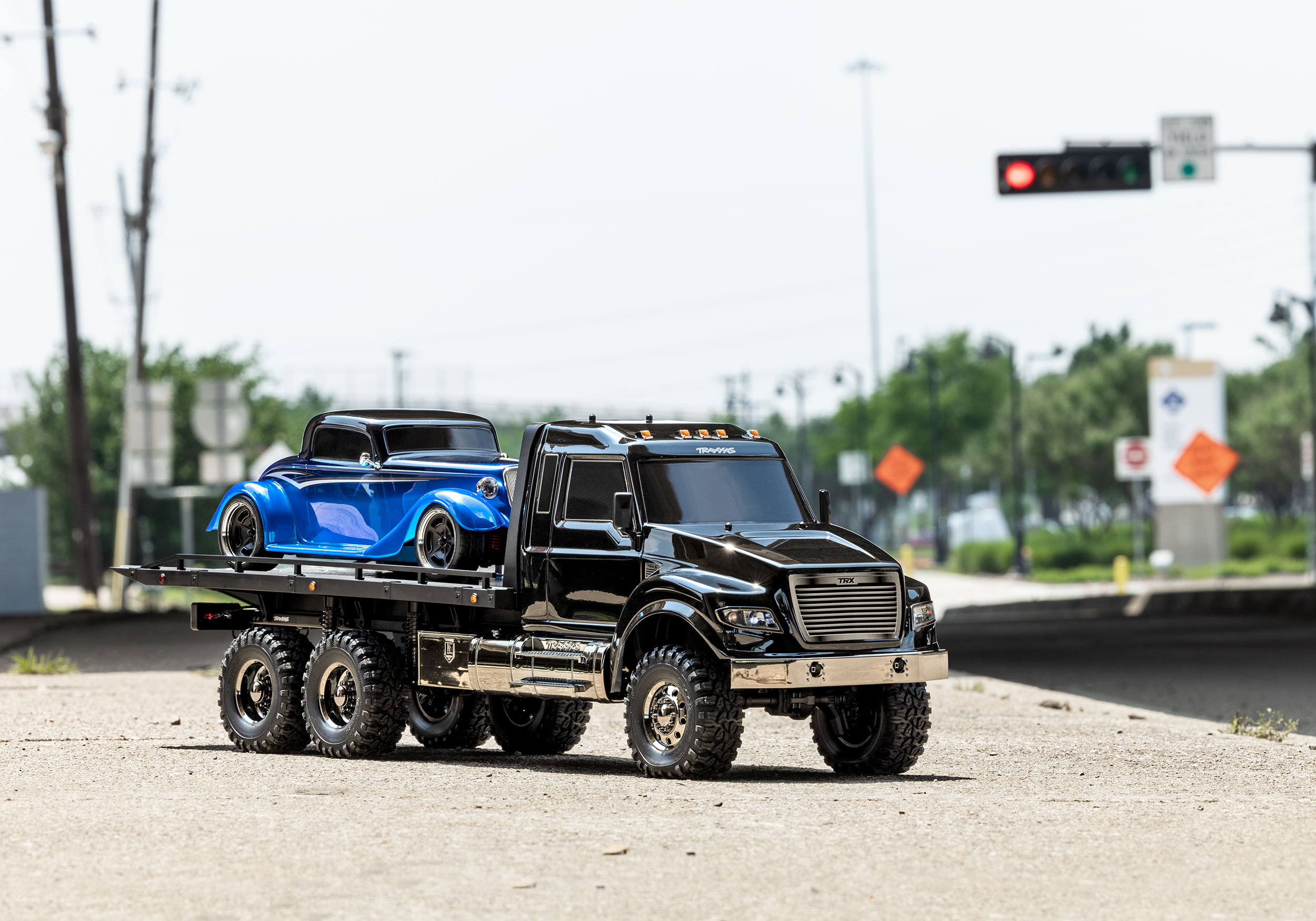

The Ultimate RC Hauler transports your 4-Tec in style with scale looks to match its rugged performance. Whether you’re cruising down the road or blazing an off-road trail, the RC Hauler gets there in style.

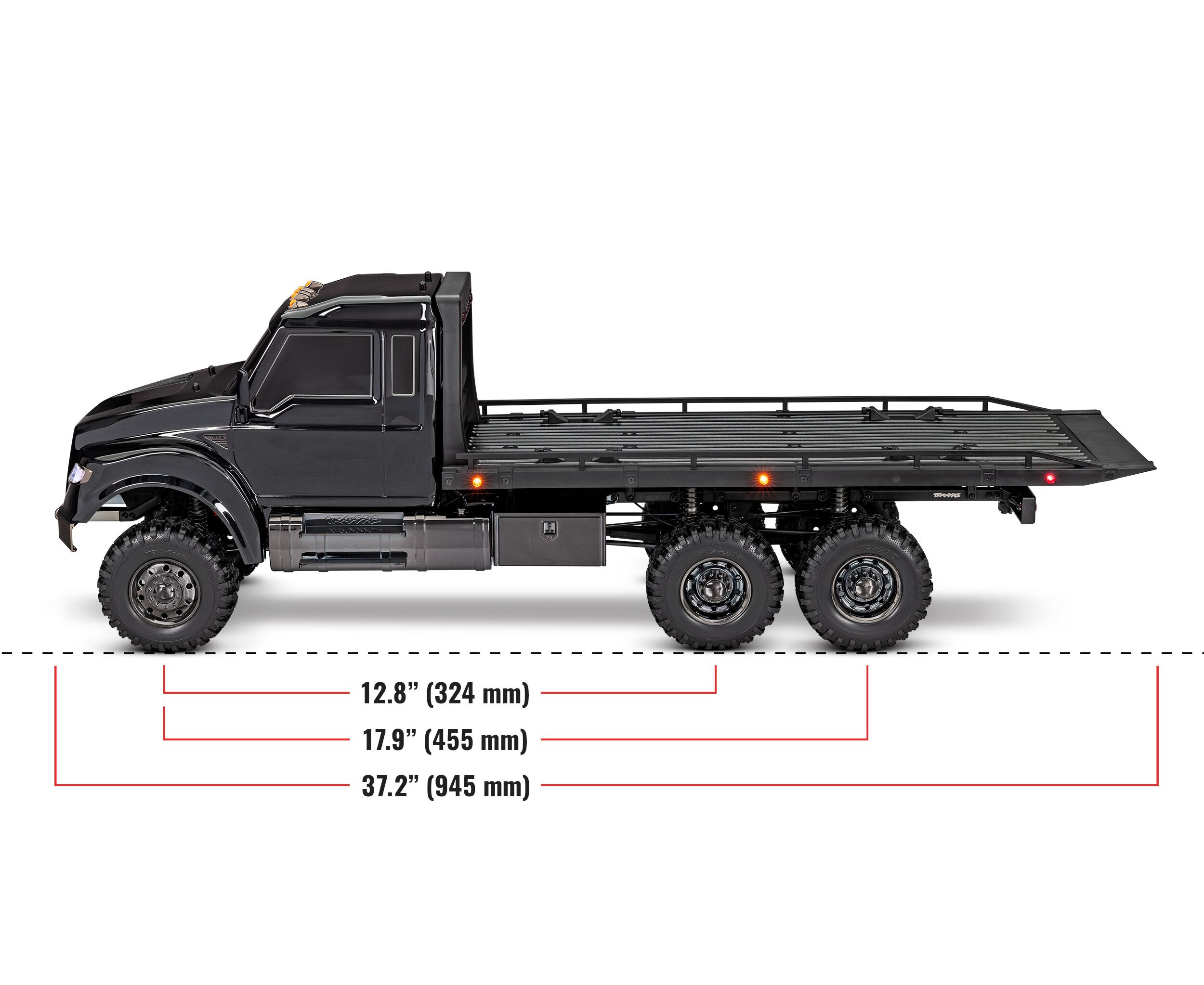

Specs - TRX-6 Flatbed Hauler (#88086-4)
Specs - TRX-6 Flatbed Hauler (#88086-4)

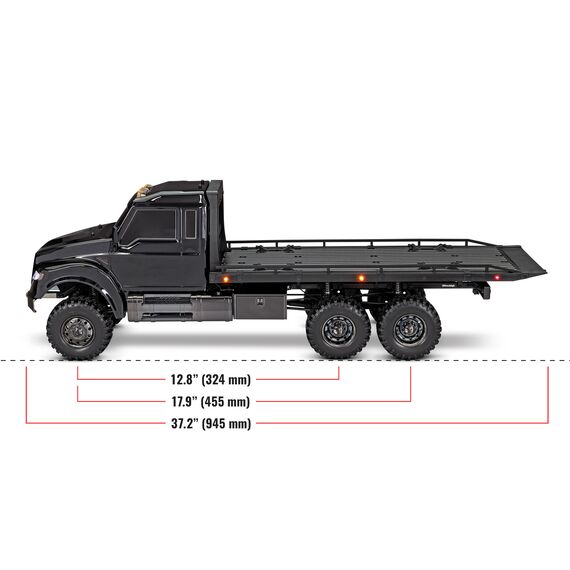

Length (overall): 37.5 inches (953 mm)
Length (chassis): 34.0 inches (863 mm)
Front Track: 9.8 inches (245 mm)
Rear Track: 9.8 inches (249 mm)
Ground Clearance: 3.14 inches (80 mm)
Weight: 10.7 pounds (4.83 kg)
Height (overall): 11.9 inches (303 mm)

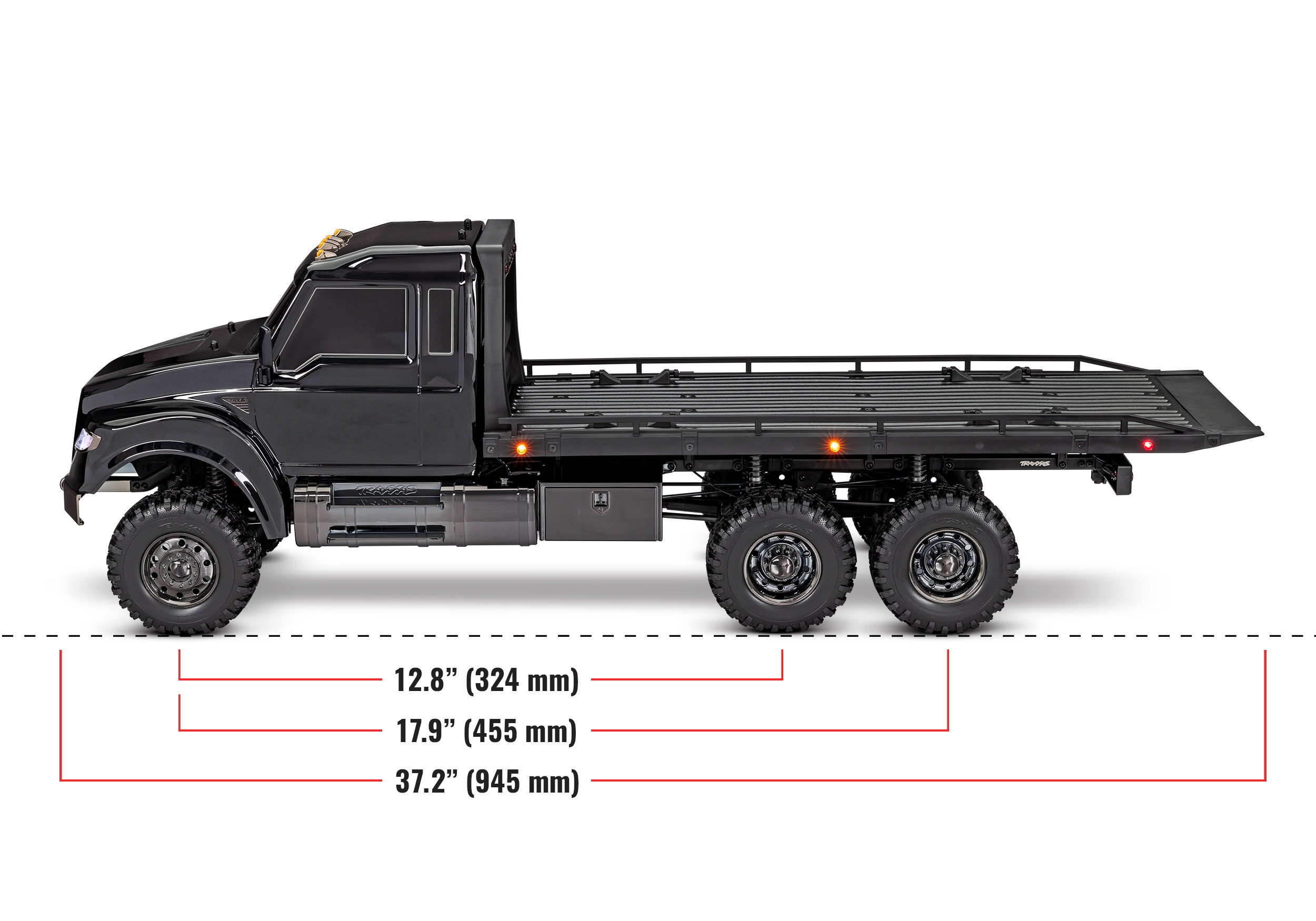

Wheelbase
(front & intermediate axle): 18.6 inches (471 mm)
Wheelbase
(front & rear most axle): 23.7 inches (603 mm)
Approach Angle: 60°
Departure Angle: 55°
Breakover Angle: 57°
Front Shock Length: 3.54 inches (90 mm)
Rear Shock Length: 3.54 inches (90 mm)
Front Wheels: 2.2 x 1.02 inches (56 x 26 mm)
Rear Wheels: 2.2 x 1.02 inches (56 x 26 mm)
Battery Tray: 158.75 L x 47 W x 23/26 mm H
Front Tires: 4.64 x 1.89 inches (118 x 48 mm)
Rear Tires: 4.64 x 1.89 inches (118 x 48 mm)
Hex Size: 12 mm
Speed Control: XL-5 HV
Motor (electric): Titan® 21T Reverse Rotation
Transmission: 2-speed High/Low, Remote Shifting
Gear Pitch: 32P
Differential Type: 4 Gear, Remote Locking

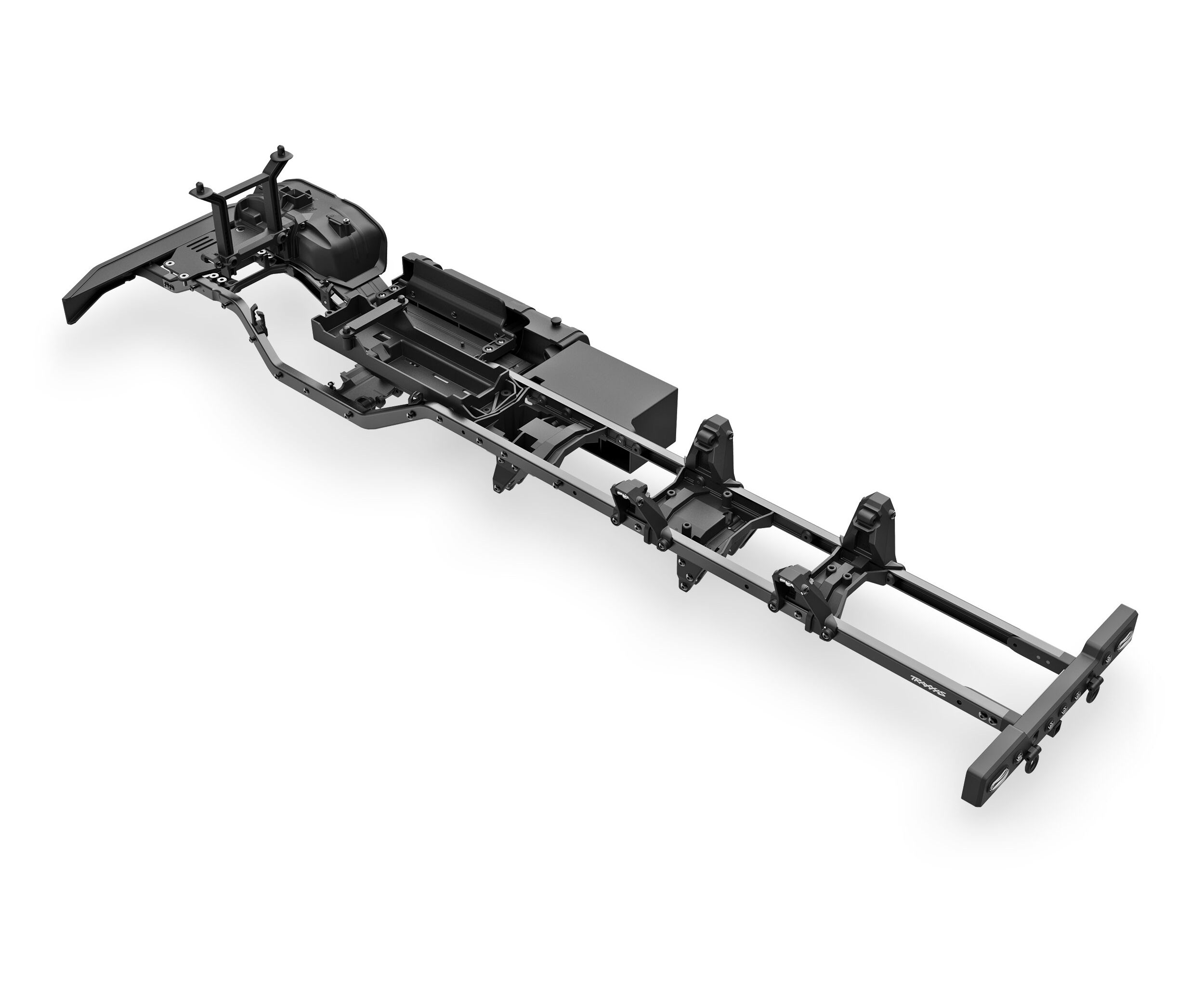

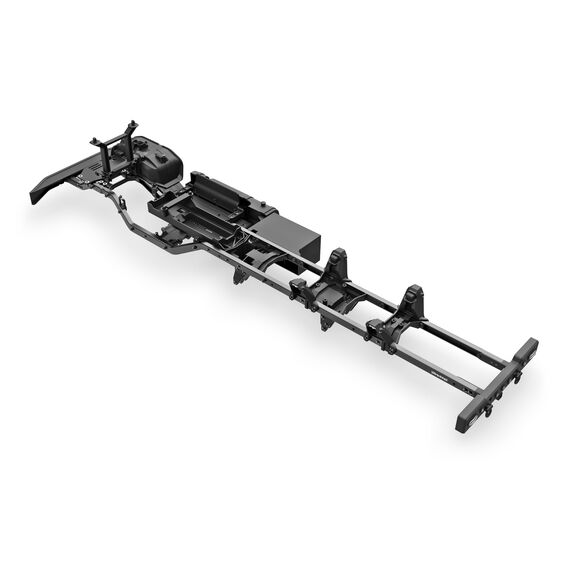

Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft-Driven 6WD
Steering: Chassis Mounted Servo

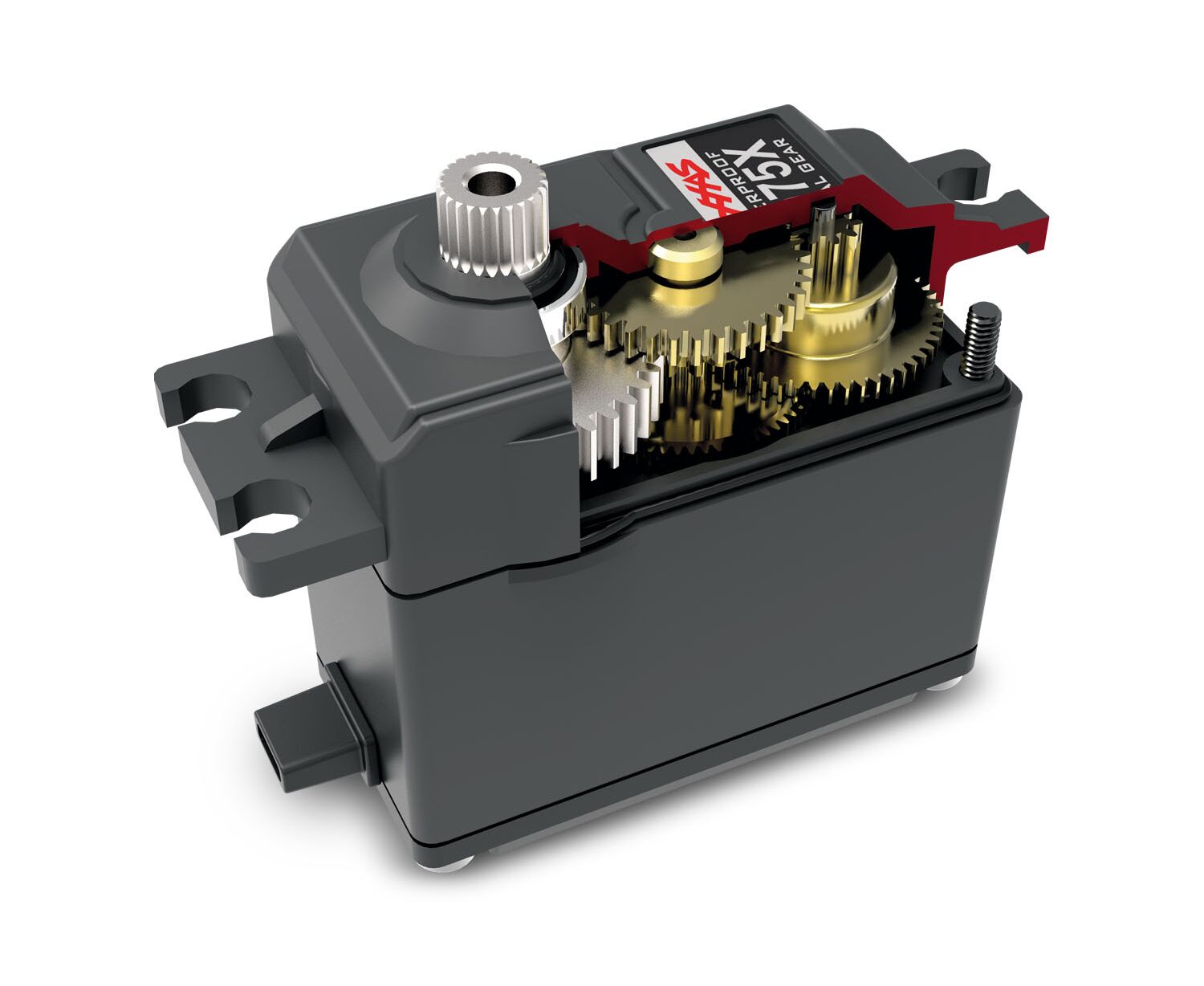

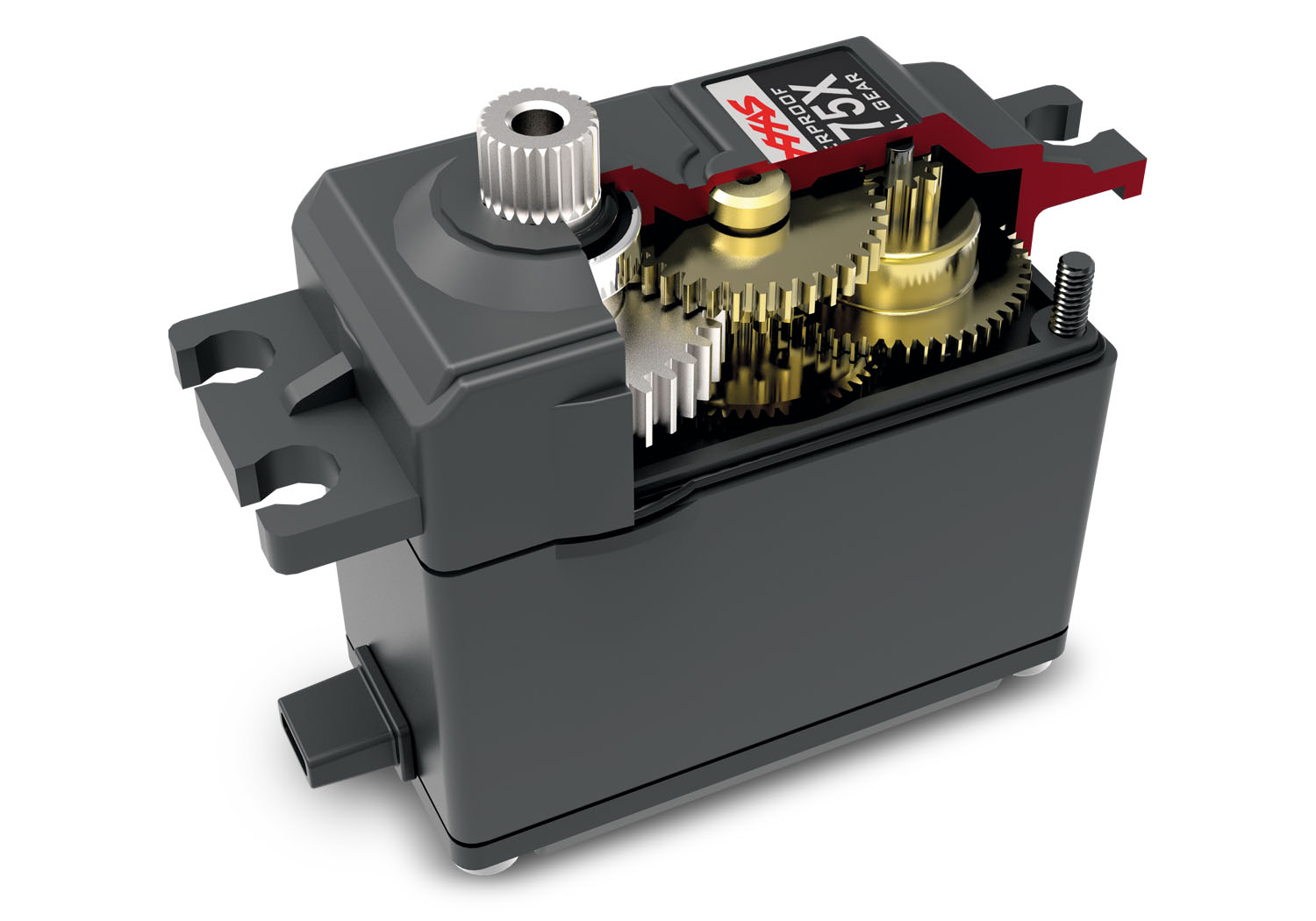

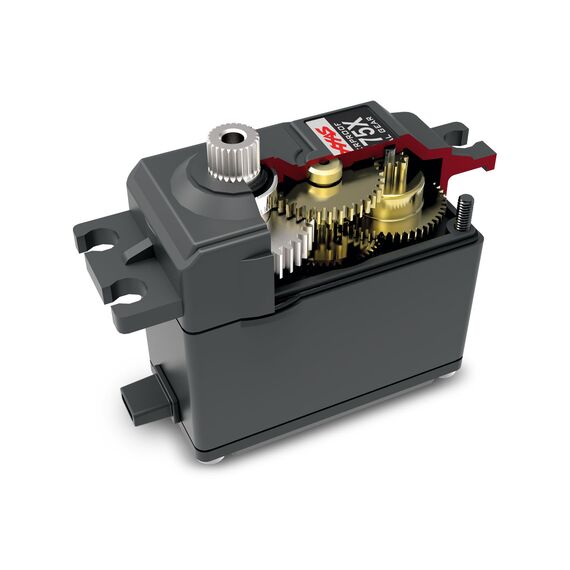

Servo: 2075X Metal Gear
Transmitter: TQi™ 2.4GHz 4-Channel Transmitter
Receiver: 6533
Skill Level: 1ULTIMATE RC HAULER



General
Massstab
1:10
Motor / Antrieb
  • Elektro Bürstenmotor
Einsatz
  • Crawler/Scaler
  • Off-Road
Anspruch
  • Anfänger/Einsteiger
Fertigungsgrad
RTR (ready to run)
Max. Geschwindigkeit
10-20 km/h
Hersteller
Traxxas
Finde Vergleichbares

Infos (31_88086-4BK_INFO_EN.pdf, 14,287 Kb) [Herunterladen]

Anleitung (31_88086-4BK_MANUAL_DE.pdf, 13,101 Kb) [Herunterladen]

Ersatzteile (31_88086-4BK_PARTS_EN.pdf, 666 Kb) [Herunterladen]

Explosionszeichnung (31_88086-4BK_VIEW_EN.pdf, 9,720 Kb) [Herunterladen]
