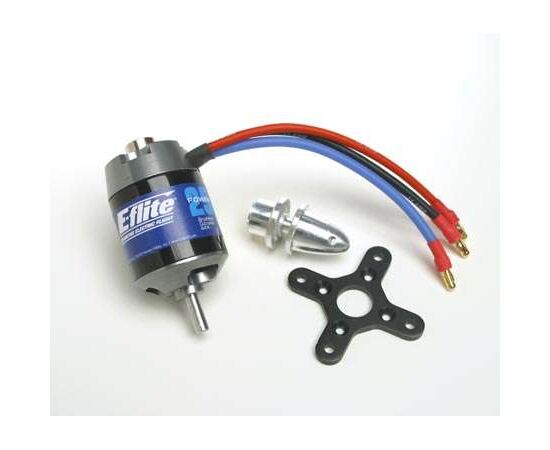

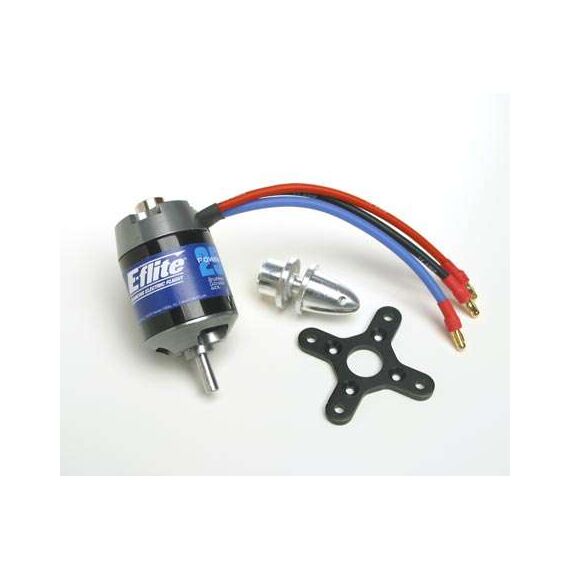

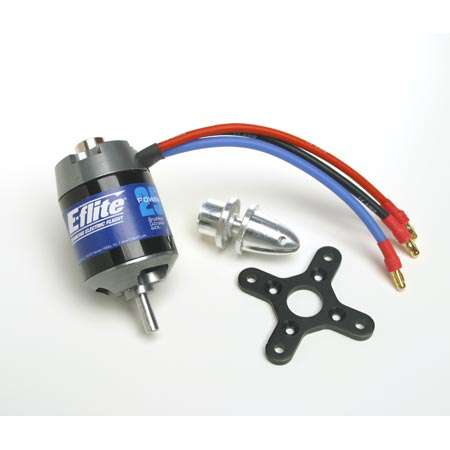

MOTOR Power 25 Out.Brushless 870Kv
Equivalent to a 25-size glow engine for sport and scale airplanes weighing 3-5.5 lb (1.4-2.5 kg)
Ideal for 15-size 3D airplanes up to 3.5 pounds (1.6 kilograms)
Ideal for models requiring up to 600 watts of power

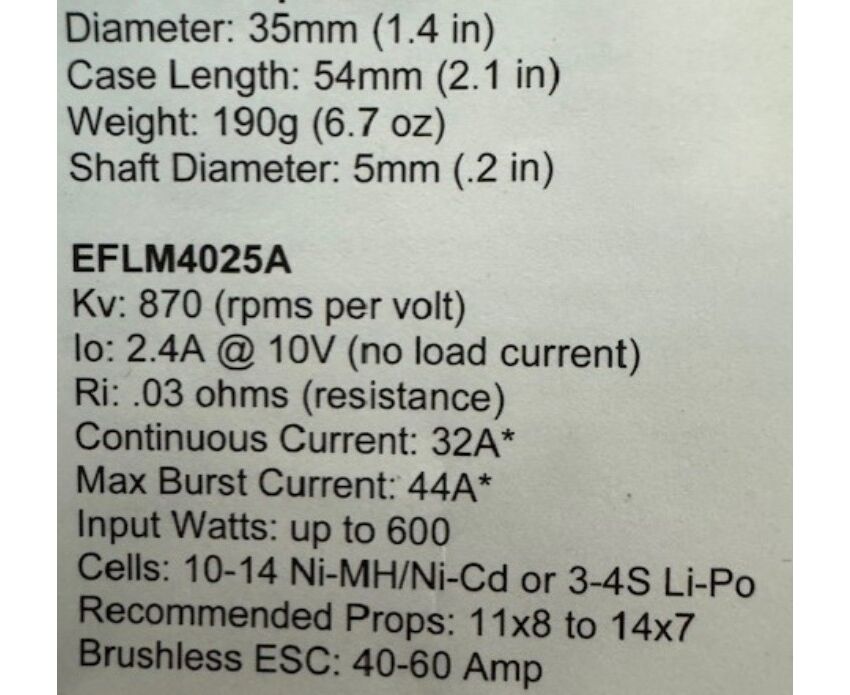

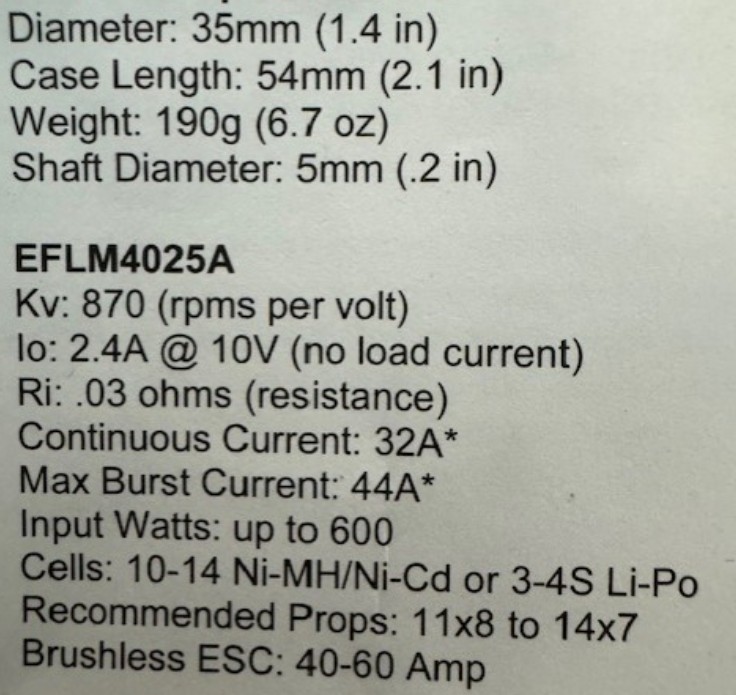

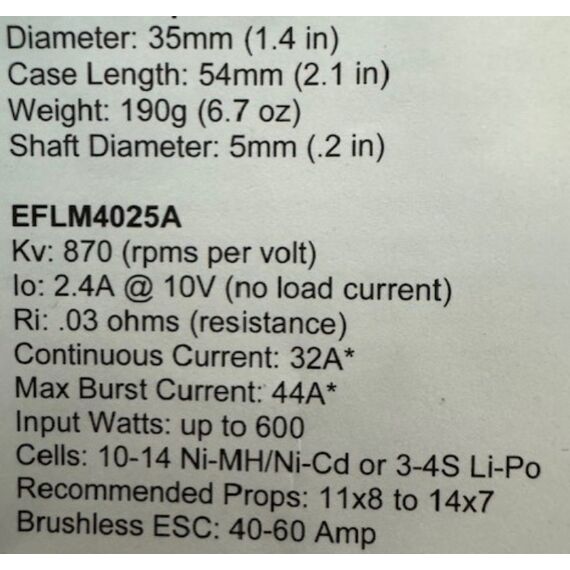

Type: Brushless outrunner
Size: Replacement for 25-size glow engine
Bearings or Bushings: One 5 x 14 x 5mm Bearing, and Two 5 x 11 x 4mm Bearings
Wire Gauge: 14
Recommended Prop Range: 11x8 to 14x7
Voltage: 12-16.8
RPM/Volt (Kv): 870
Resistance (Ri): .03 ohms
Idle Current (Io): 2.40A @ 10V
Continuous Current: 32A
Maximum Burst Current: 44A (15 sec)
Cells: 3S-4S Li-Po or 10-14 Ni-MH/Ni-Cd
Speed Control: 40-45A brushless
Weight: 190 g (6.7 oz)
Overall Diameter: 35mm (1.40 in)
Shaft Diameter: 5mm (.20 in)
Overall Length: 54mm (2.10 in)
Ideal for 15-size 3D airplanes up to 3.5 pounds (1.6 kilograms)
Ideal for models requiring up to 600 watts of power
Type: Brushless outrunner
Size: Replacement for 25-size glow engine
Bearings or Bushings: One 5 x 14 x 5mm Bearing, and Two 5 x 11 x 4mm Bearings
Wire Gauge: 14
Recommended Prop Range: 11x8 to 14x7
Voltage: 12-16.8
RPM/Volt (Kv): 870
Resistance (Ri): .03 ohms
Idle Current (Io): 2.40A @ 10V
Continuous Current: 32A
Maximum Burst Current: 44A (15 sec)
Cells: 3S-4S Li-Po or 10-14 Ni-MH/Ni-Cd
Speed Control: 40-45A brushless
Weight: 190 g (6.7 oz)
Overall Diameter: 35mm (1.40 in)
Shaft Diameter: 5mm (.20 in)
Overall Length: 54mm (2.10 in)
General
Hersteller
E-flite
