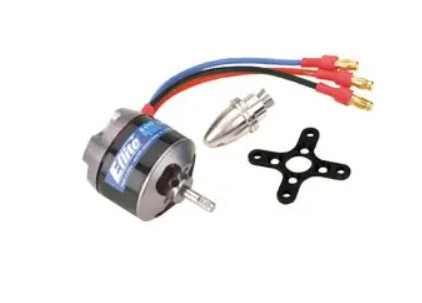

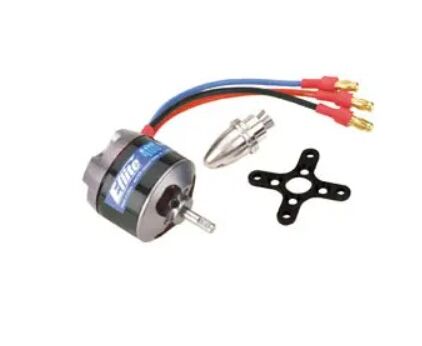

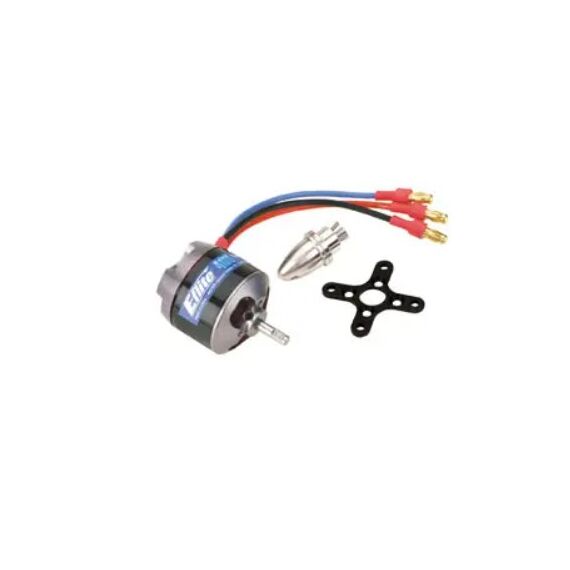

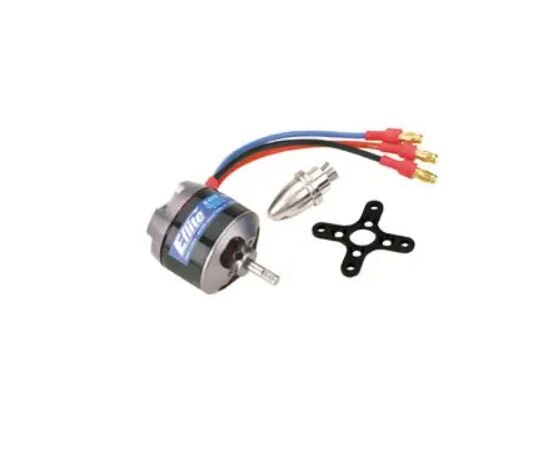

MOTOR Park 400 Out.Brushless 740Kv

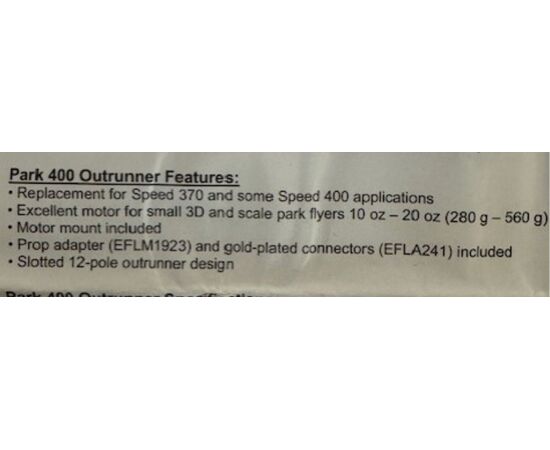

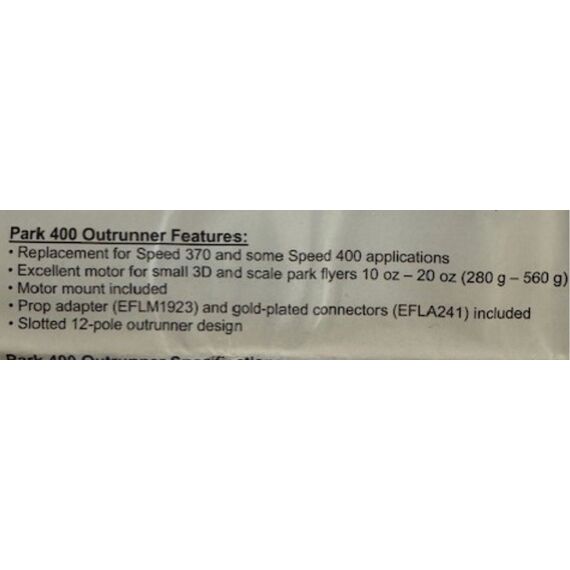

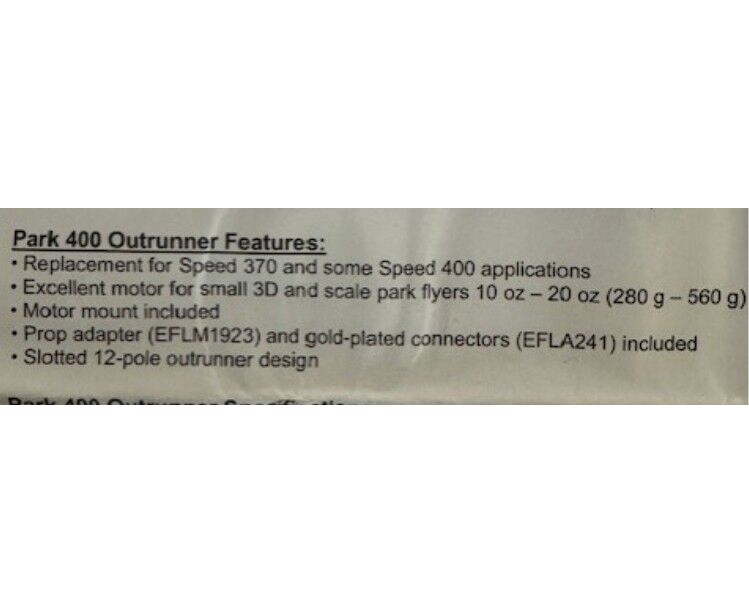

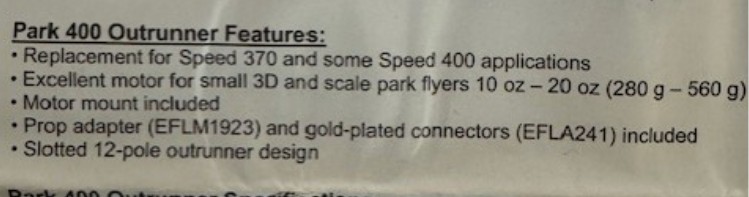

Excellent motor for small 3D and scale park flyers weighing 10-20 oz (280-560 g)
Motor mount included
Replacement for Speed 370 and Speed 400 applications

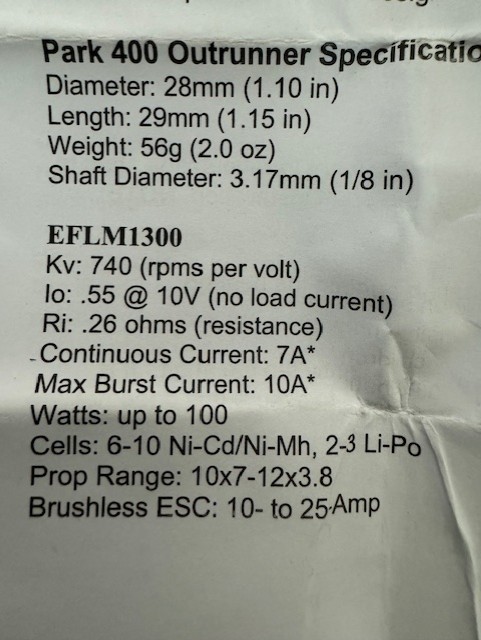

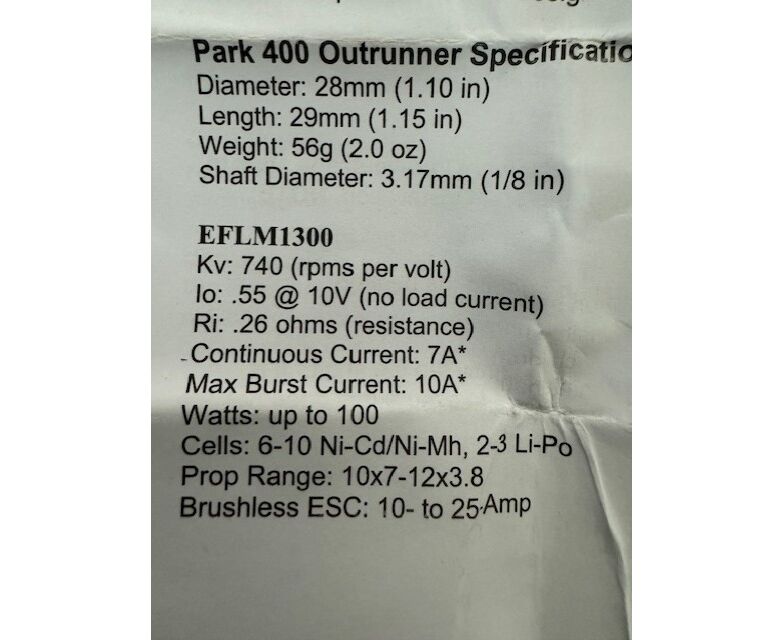

Type: Brushless
Size: Replacement for 370/400
Bearings or Bushings: One 3.175 x 7.94 x 3.6 Bearing, and One 3.175 x 9.525 x 3.97 Bearing
Recommended Prop Range: 10x4.7-12x3.8
Voltage: 7.2-12
RPM/Volt (Kv): 740 (rpms per volt)
Resistance (Ri): .26 ohms
Idle Current (Io): .55 @ 10V (no load current)
Shaft Diameter: 1/8 in (3.17mm)
Overall Length: 1.15 in (29mm)
Weight: 56 g (2.0 oz)
Overall Diameter: 1.10 in (28mm)
Diameter: 1.1 in (28mm)
Continuous Current: 7A
Maximum Burst Current: 10A
Cells: 6-10 Ni-Cd/Ni-MH or 2-3 Li-Po
Speed Control: 10-20 amp brushless
Motor mount included
Replacement for Speed 370 and Speed 400 applications
Type: Brushless
Size: Replacement for 370/400
Bearings or Bushings: One 3.175 x 7.94 x 3.6 Bearing, and One 3.175 x 9.525 x 3.97 Bearing
Recommended Prop Range: 10x4.7-12x3.8
Voltage: 7.2-12
RPM/Volt (Kv): 740 (rpms per volt)
Resistance (Ri): .26 ohms
Idle Current (Io): .55 @ 10V (no load current)
Shaft Diameter: 1/8 in (3.17mm)
Overall Length: 1.15 in (29mm)
Weight: 56 g (2.0 oz)
Overall Diameter: 1.10 in (28mm)
Diameter: 1.1 in (28mm)
Continuous Current: 7A
Maximum Burst Current: 10A
Cells: 6-10 Ni-Cd/Ni-MH or 2-3 Li-Po
Speed Control: 10-20 amp brushless
General
Hersteller
E-flite
