Mini-Z 4X4 MX-01 Jeep Wrangler Rubicon Punk'n Metalic (KT531P)
The combination of a high-detailed body and a completely redesigned 4x4 chassis that thoroughly pursues improved running performance opens up new frontiers of play.
The Rubicon boasts the strongest off-road performance in the Jeep® full-scale cross country model "Wrangler" lineup. The round headlights that are the identity of Jeep®, the black over fenders that enhance the wildness, the front grille with dark gray accents, and the black hardtop are reproduced in a palm-sized size that is suitable for the strongest name.
TECHNICAL DATA
■Overall length 202.0mm
■Overall width 95.0mm (both ends of tires)
■Overall height 96.0mm
■Chassis type MX-01
■Wheelbase 120mm
■Tread F/R: 77.0mm
■Gross weight 247.6g (not including battery)
■Motor/Engine 130 class
■Gear ratio 55.44:1/46.20:1/39.60:1 34.65
:1/30.80:1/27.72:1
■Front tire diameter Φ40.5mm
■Rear tire diameter Φ40.5mm
■Front tire width 18.0mm
■Rear tire width 18.0mm
■ Battery AAA alkaline x 4
■ Syncro KT-531P radio used
■ Speed about 2.7km/h - 5.4km/h (pinion gear 10T - 20T)
■ Running time about 60 minutes
KIT CONTENTS
●Completely assembled chassis with R/C unit installed
●Painted and marked completed body

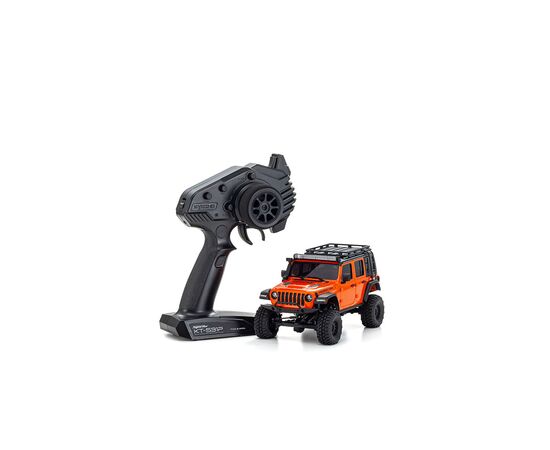

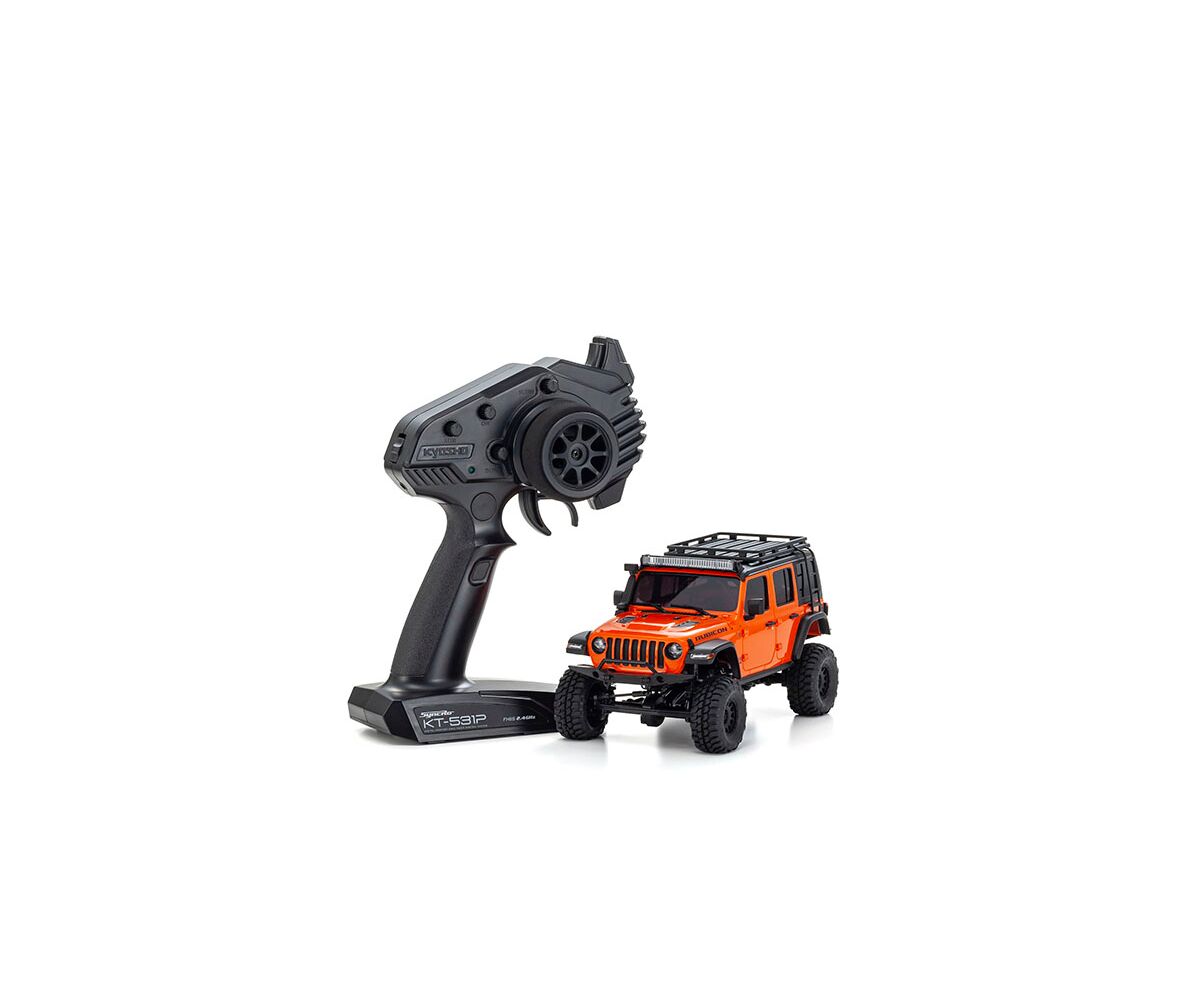

●KT-531P 2.4GHz transmitter
●Pinion gears (10T, 12T, 14T, 16T, 18T, 20T)
●Special pinion gear spacers 3 types
WHAT YOU NEED BEFORE RUNNING
● 4 AAA batteries for transmitter
● 4 AAA batteries for running (alkaline or nickel metal hydride)
