Boomracing KUDU Löthilfe Multifunktional

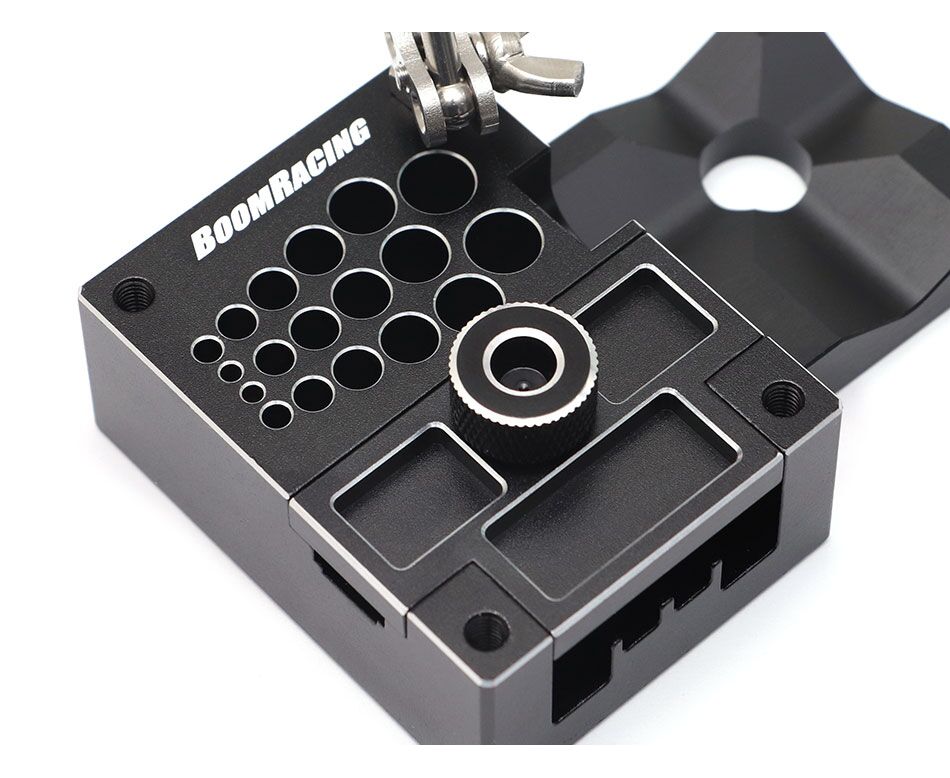

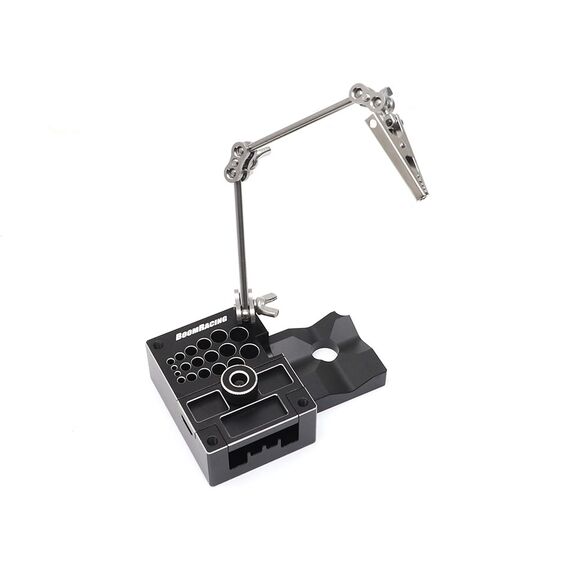

Designed from the ground up, the Boom Racing KUDU™ Multifunctional Soldering Jig is a beautifully crafted high-end billet aluminum and steel tool set for your R/C applications.

Being an R/C car manufacturer and hobbyists ourselves we solder many things on a consistent basis. One of the frequent pain points while soldering wires is not having a motor stand with the soldering jig. Having the motor roll around while soldering can be a time-consuming and unpleasant experience. We spoke to other hobbyists and found that they too experience the same issues. We went further by gathering their requirements and expectations to design an all-in-one solution.

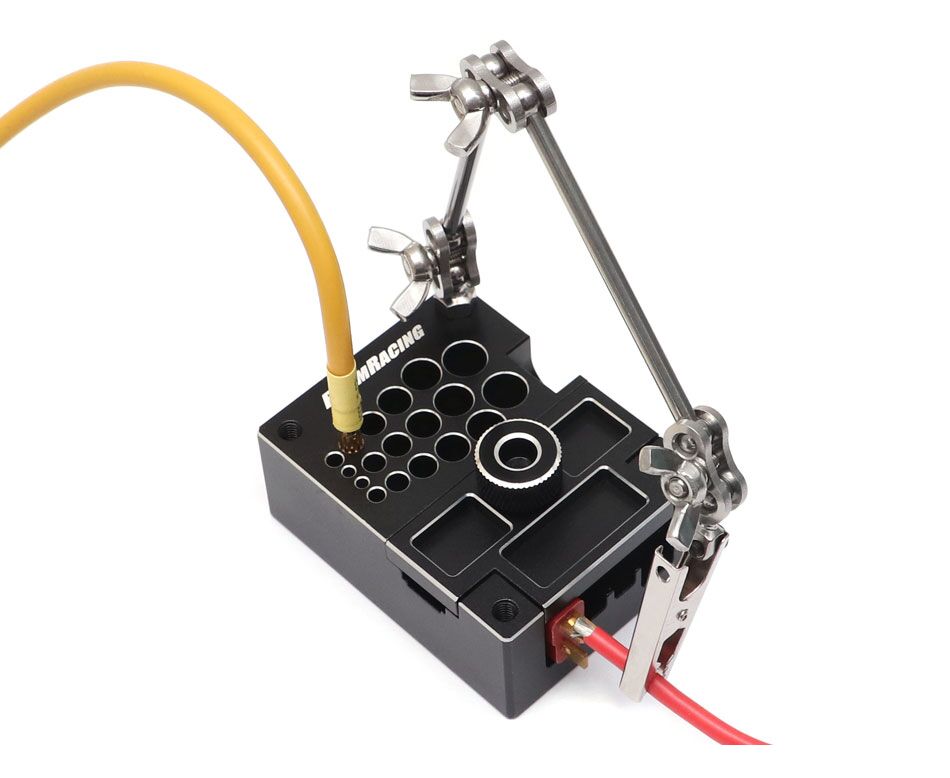

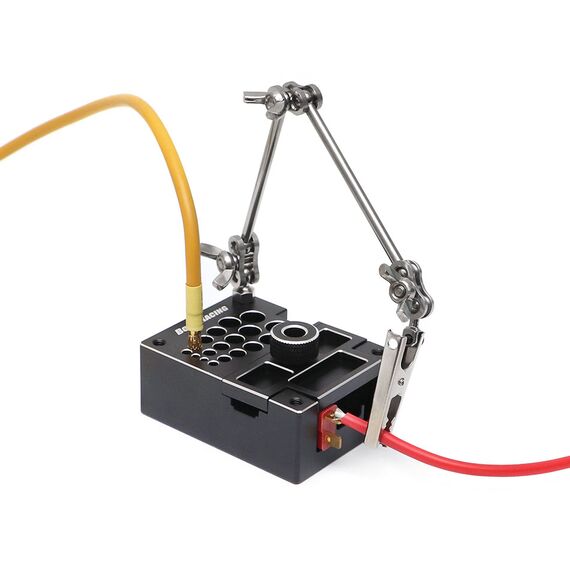

The jig is ideal for soldering all types of R/C connectors, especially for R/C cars with the built-in steel electric motor stand. It works with many of the common types of R/C connectors and gives you the freedom to move to get the best soldering angles, with a sturdy base and compact design.

Features:

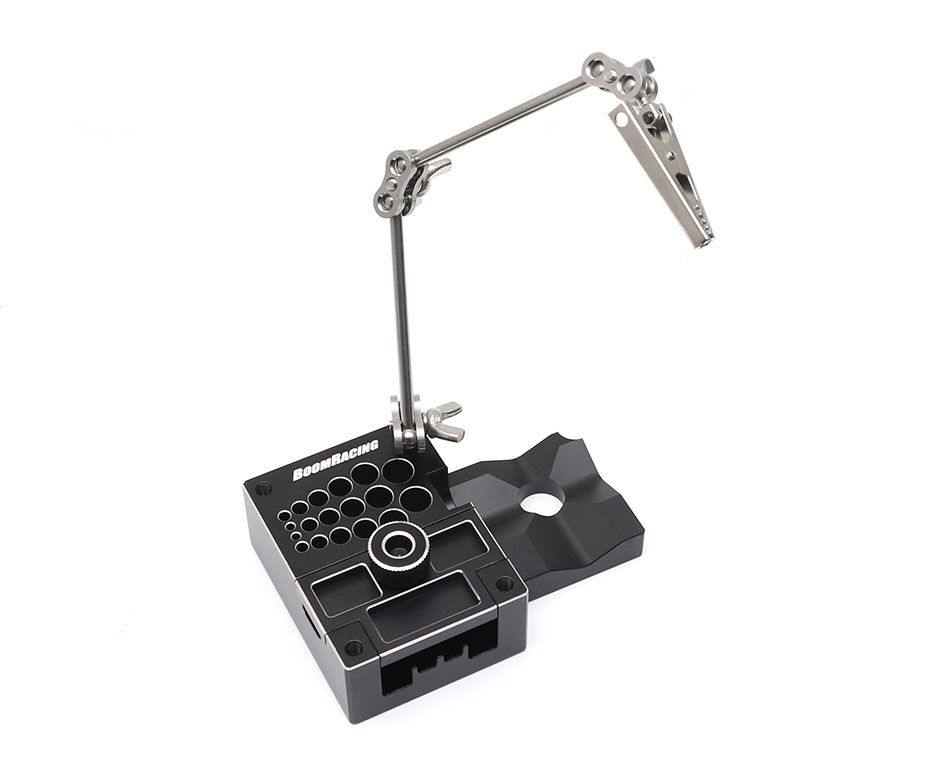

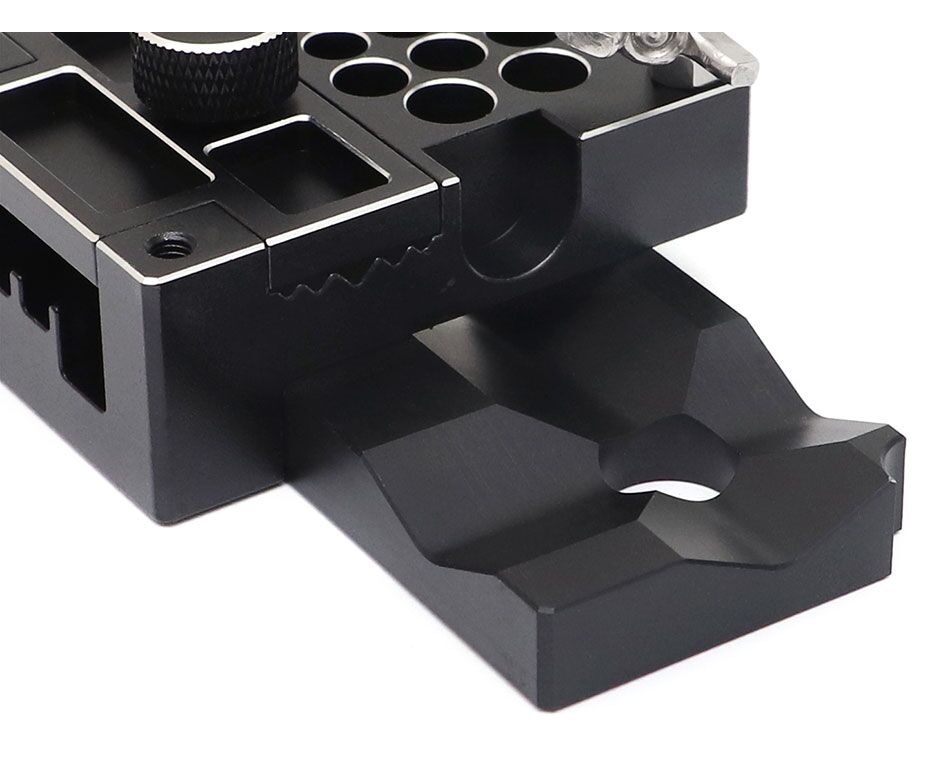

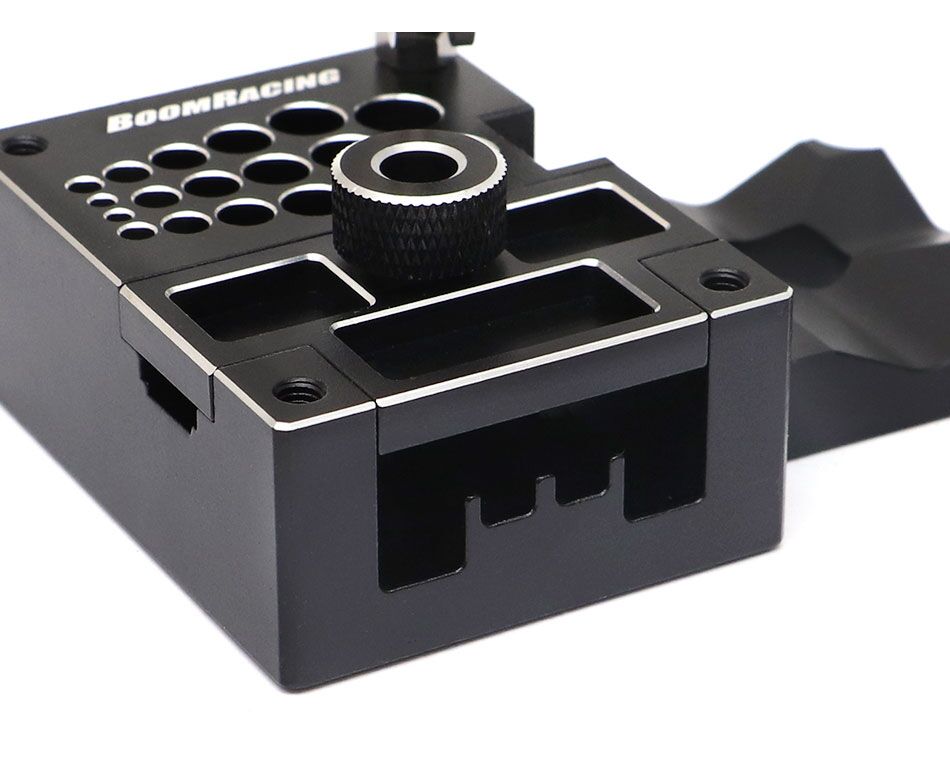

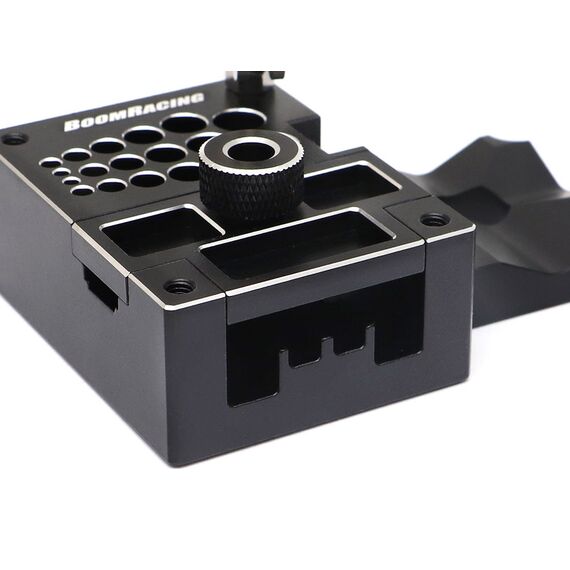

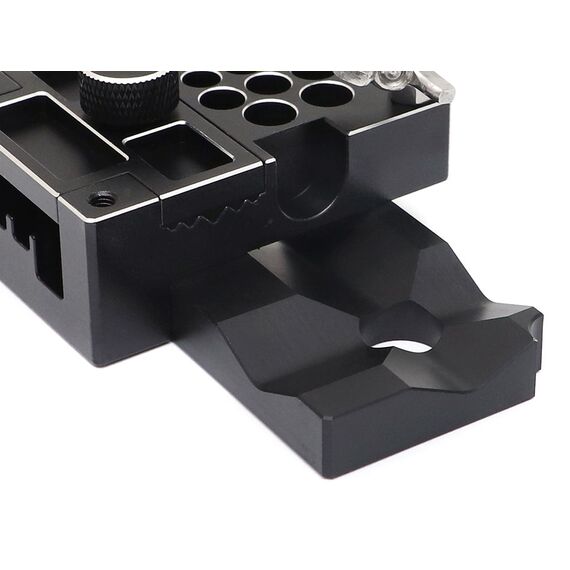

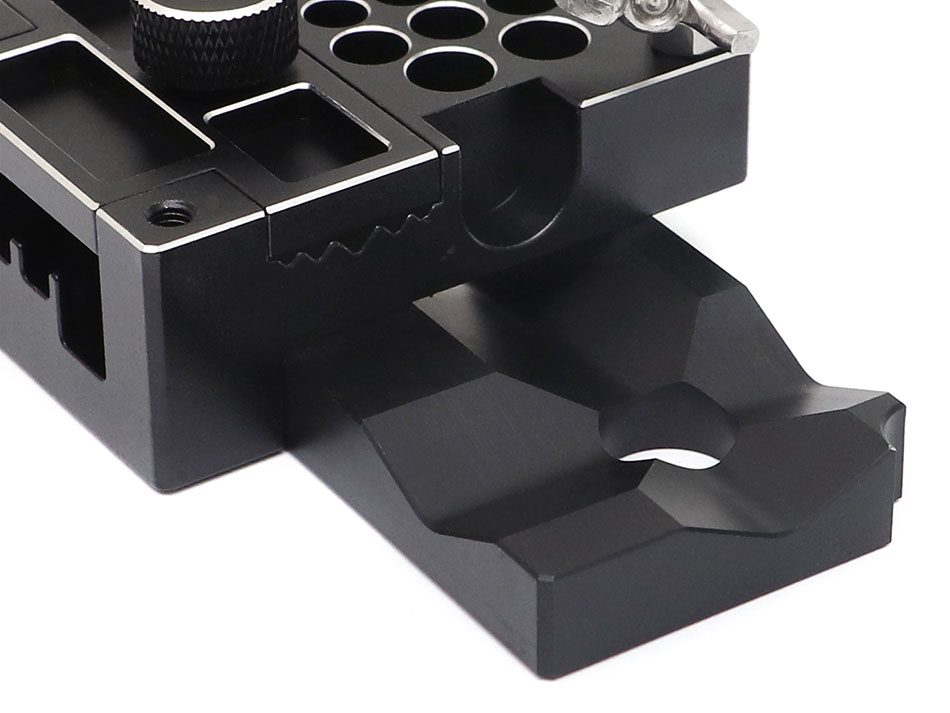

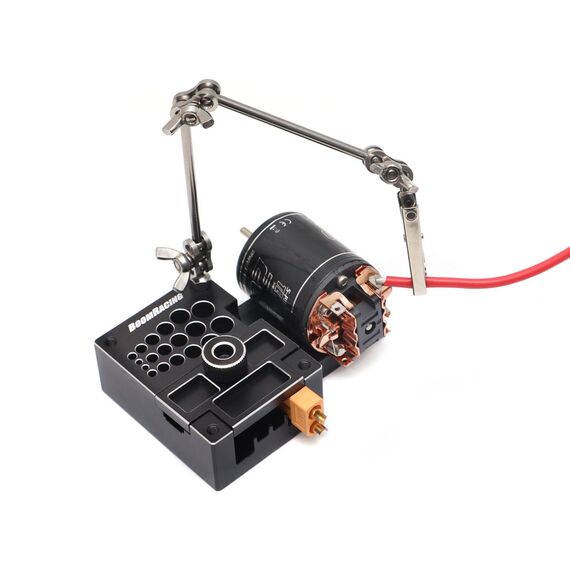

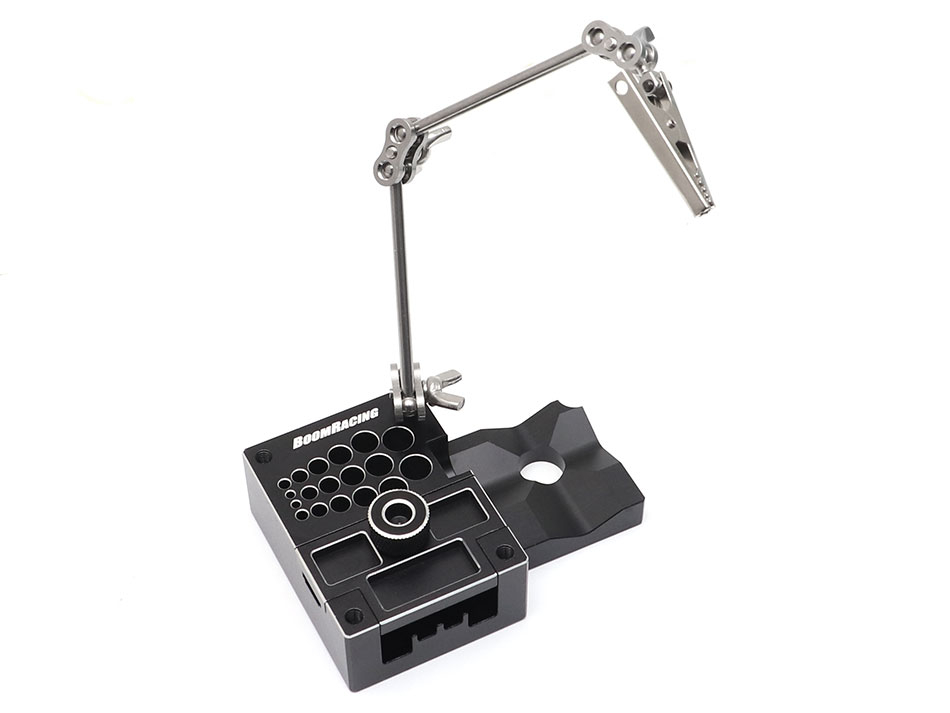

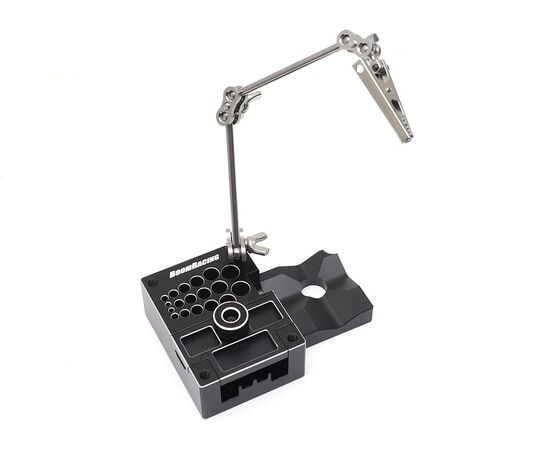

Flip-open steel base with V-groove for electric motors

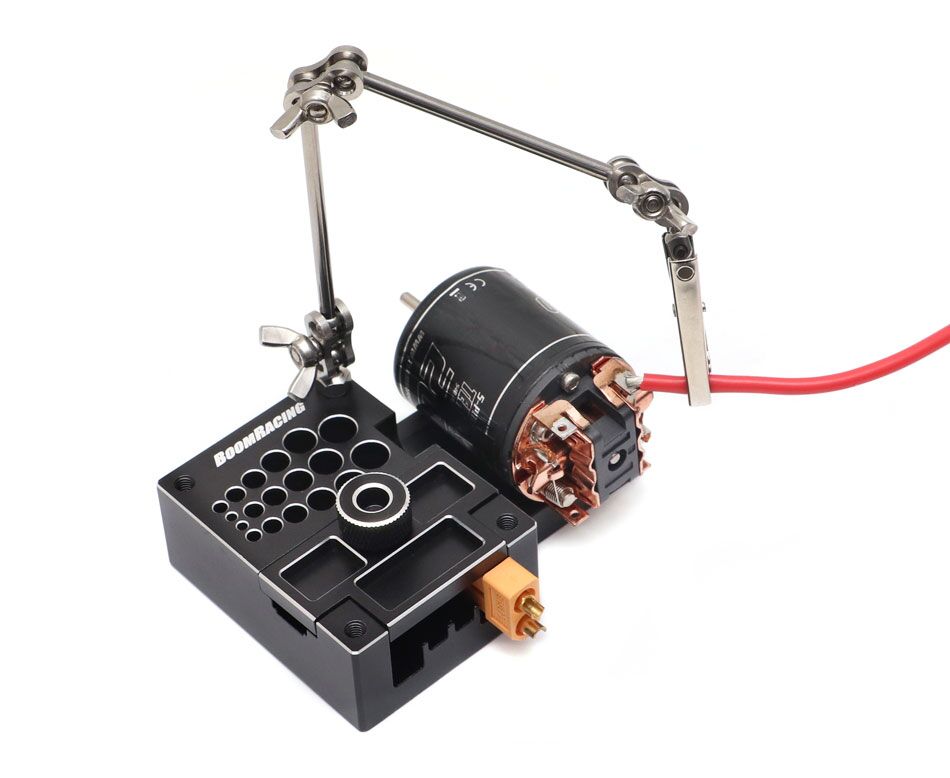

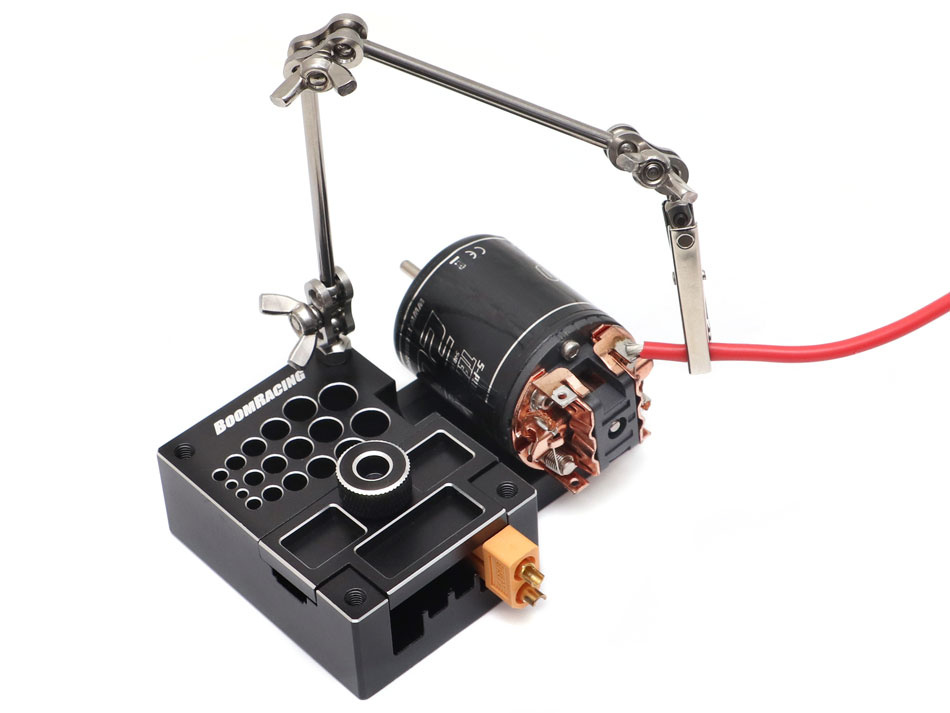

Brushed motors will magnetize to the steel base and hold themselves in place

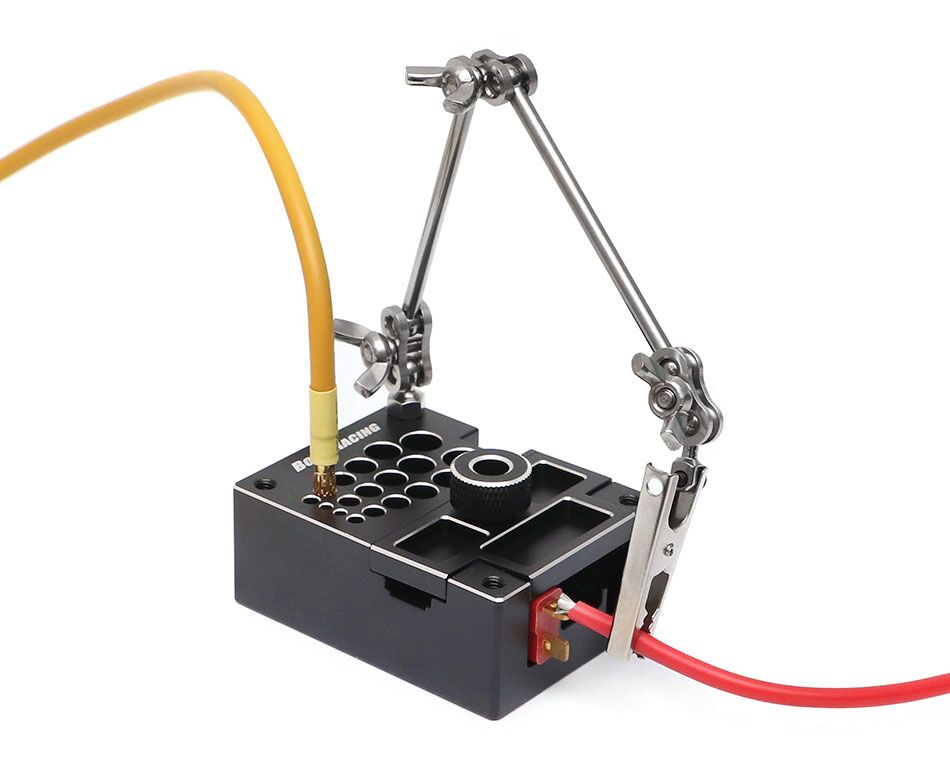

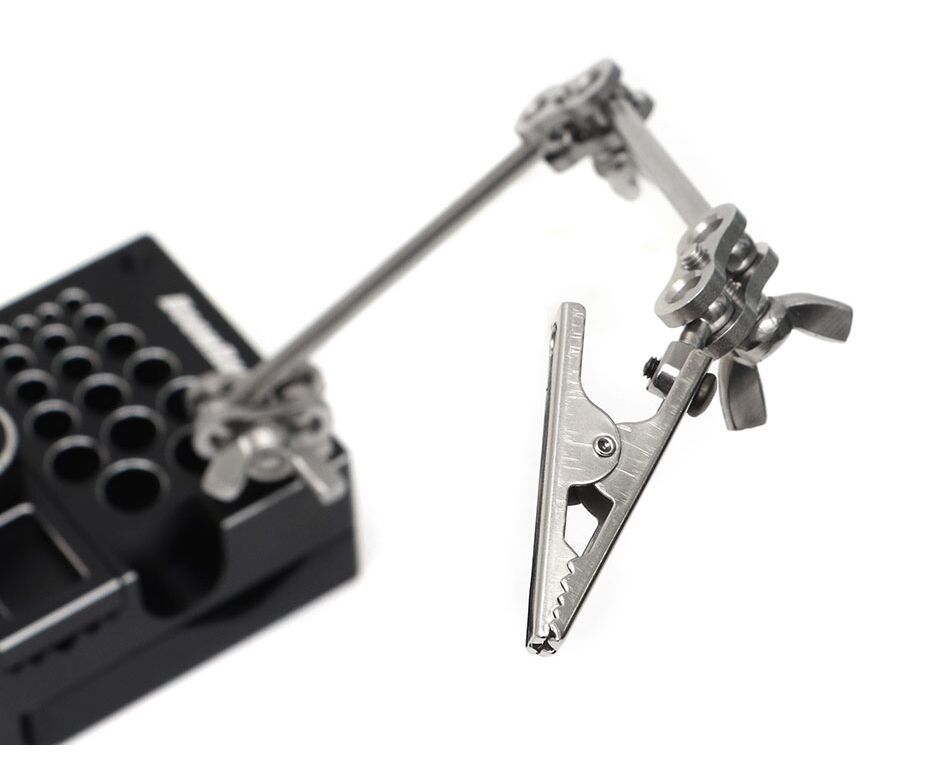

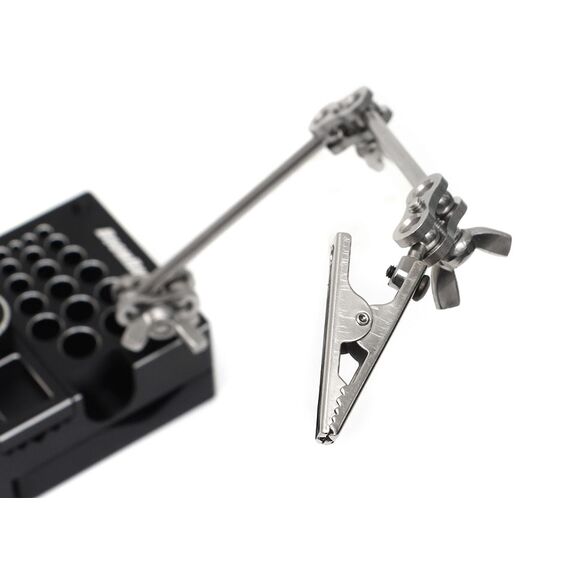

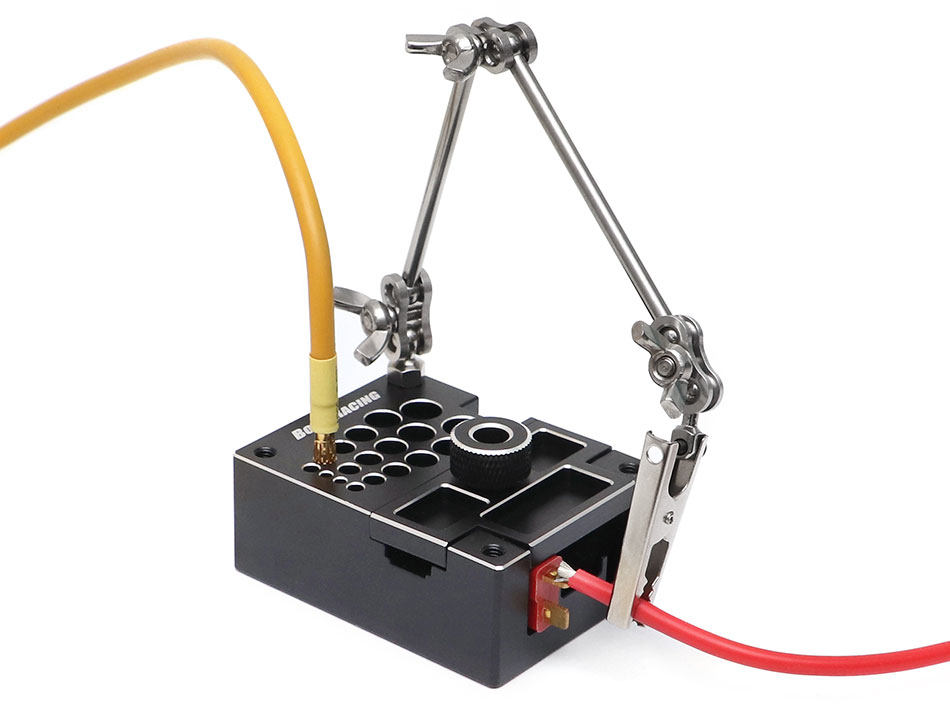

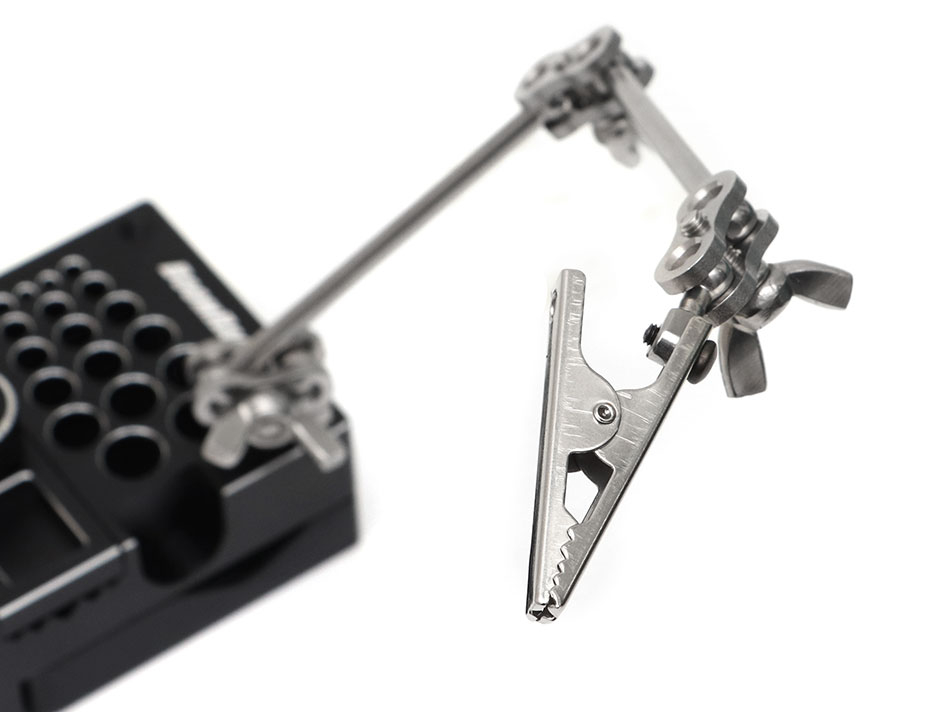

Flexible clamping arms (helping hands) and multiple mounting positions to precisely adjust the soldering angles
Strong and sturdy clamping arms which hold the wires firm and steady

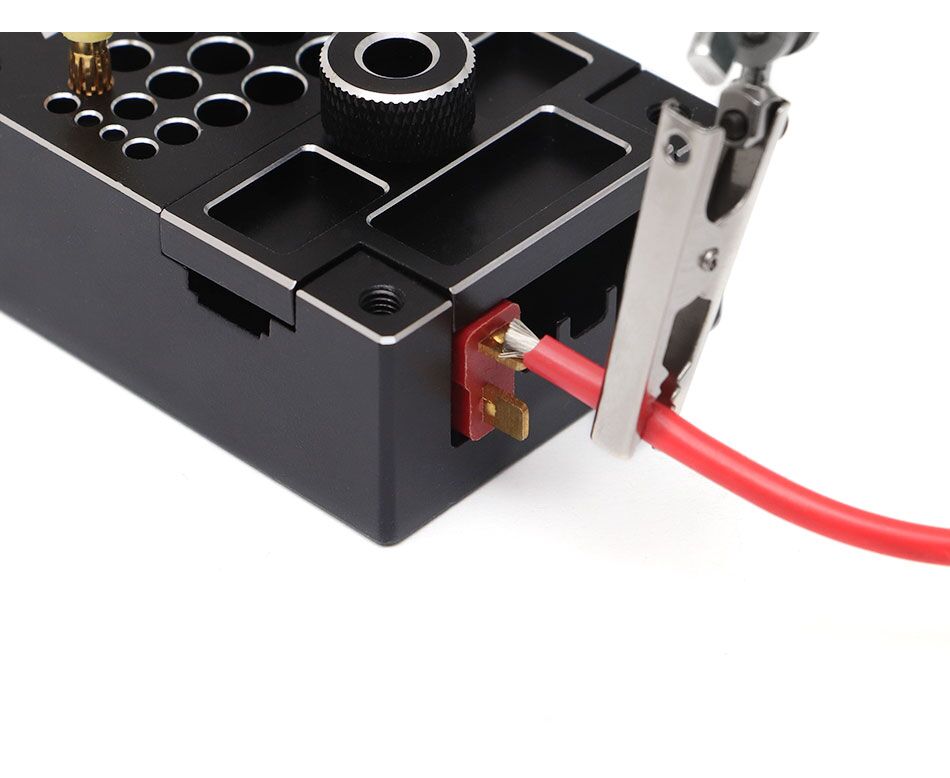

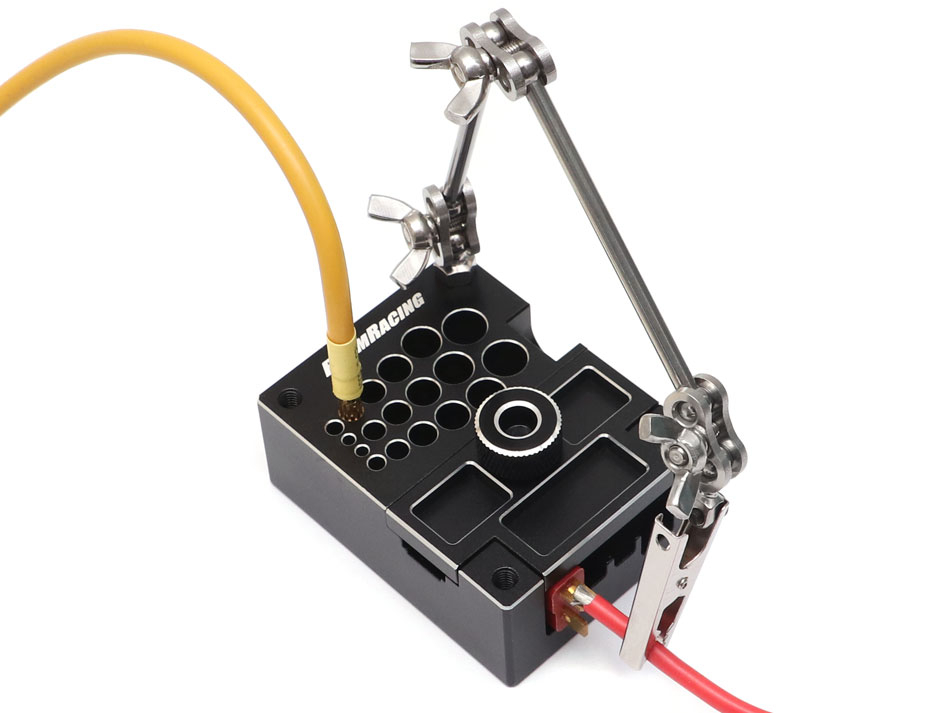

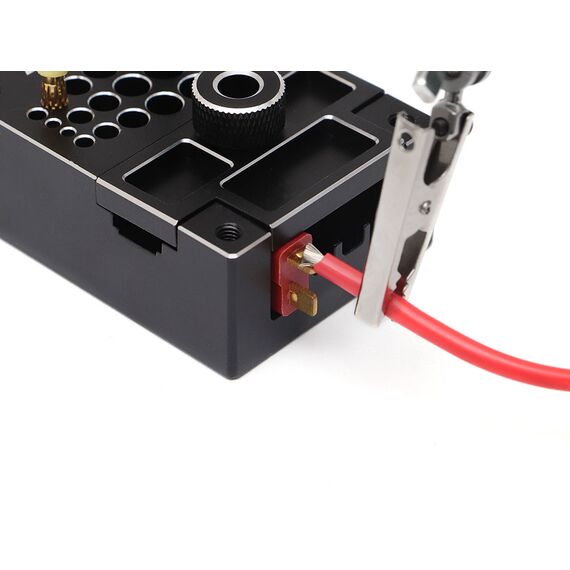

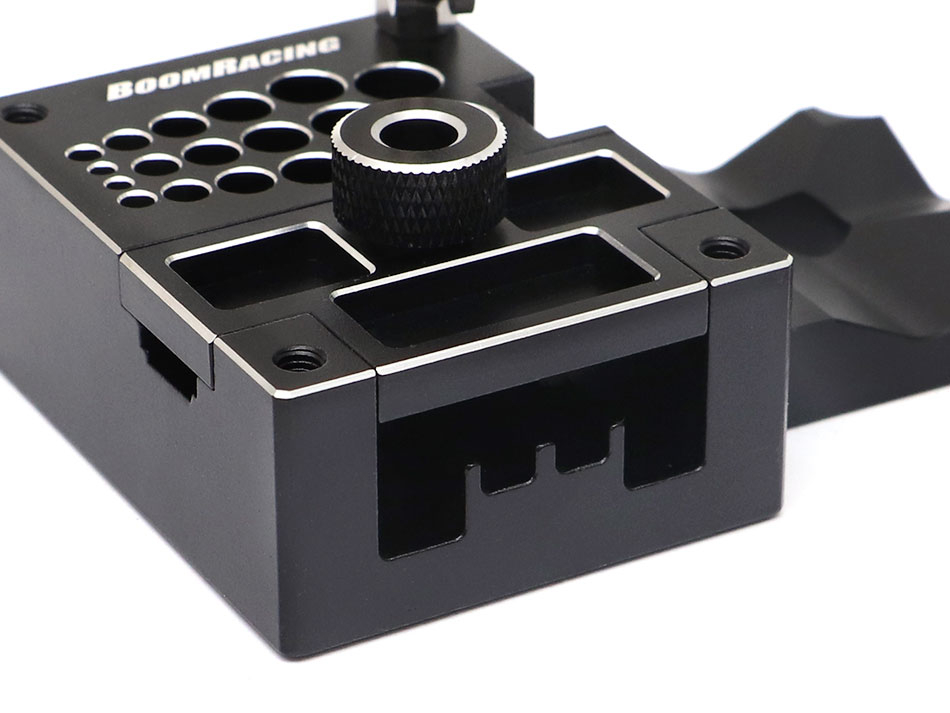

Position plugs vertically and horizontally

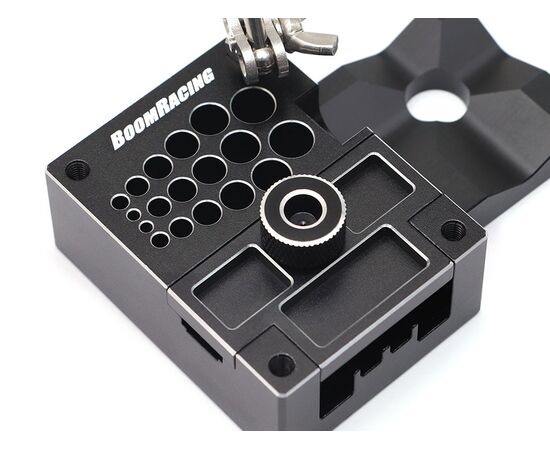

V-grooves to hold cables and metal wires (1.2mm to 5.0mm)

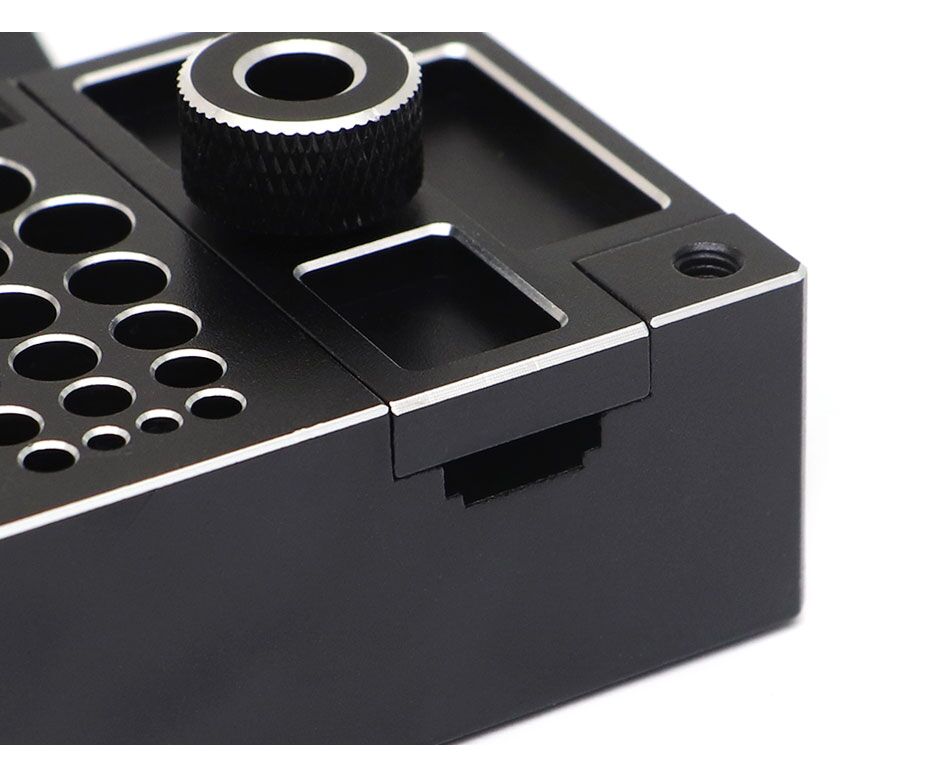

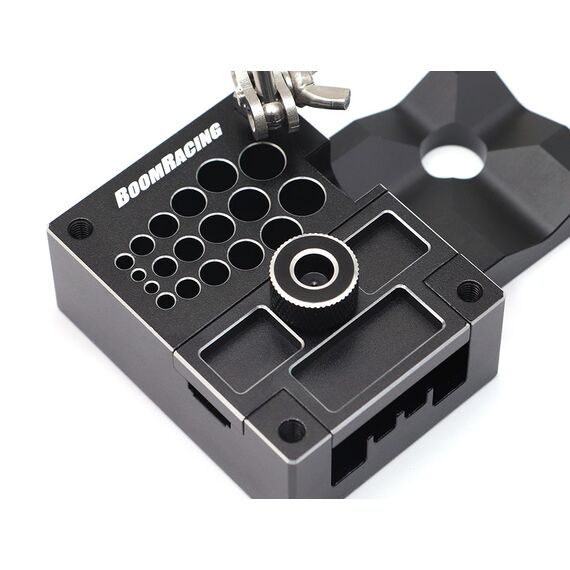

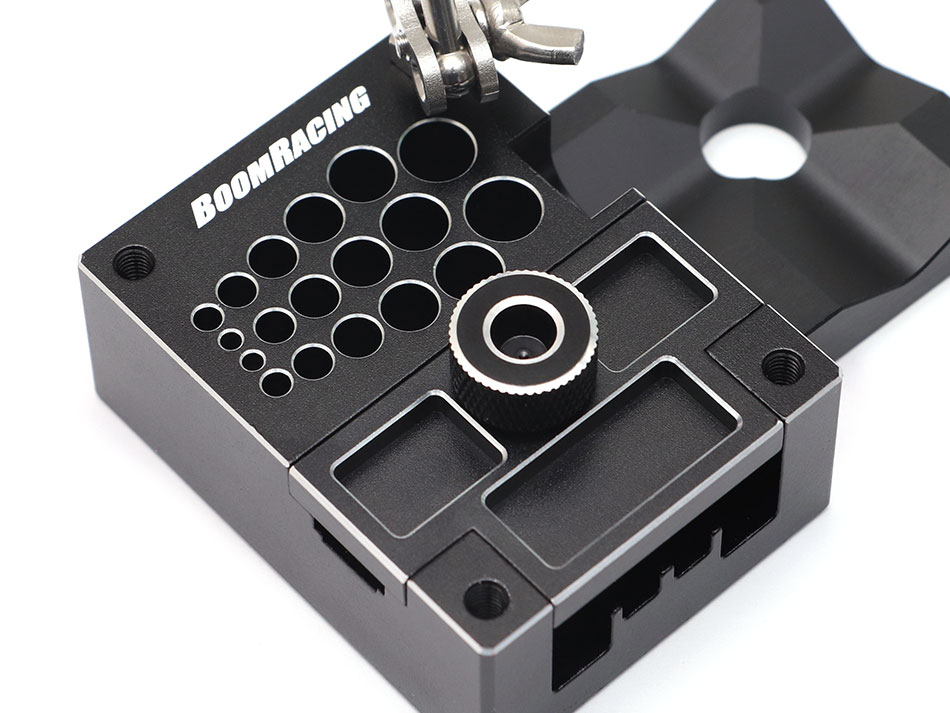

Adjustable aluminum knob for different sizes of plugs
Multi-purpose aluminum tray
Up to four clamping arms (additional clamping arms available separately)
Heavy steel base for the most stable surface
Compact for easy storage

Specs:

Size: 50 x 65 x 35mm
Weight: 289.3g
Material:
Jig: Aluminum
Base: Steel
Clamping Arms: Stainless Steel

Safety Warning: Do not place two plugs from the same battery pack in the KUDU jig simultaneously as aluminum is a conductive material.

Works with the following connectors:

XT30/60/90
Deans / T Plug
JST
Traxxas (1st gen)
EC-3/5
Deans micro 2pin, 3pin, & 4pin connectors
Bullet connectors 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, and 8mm

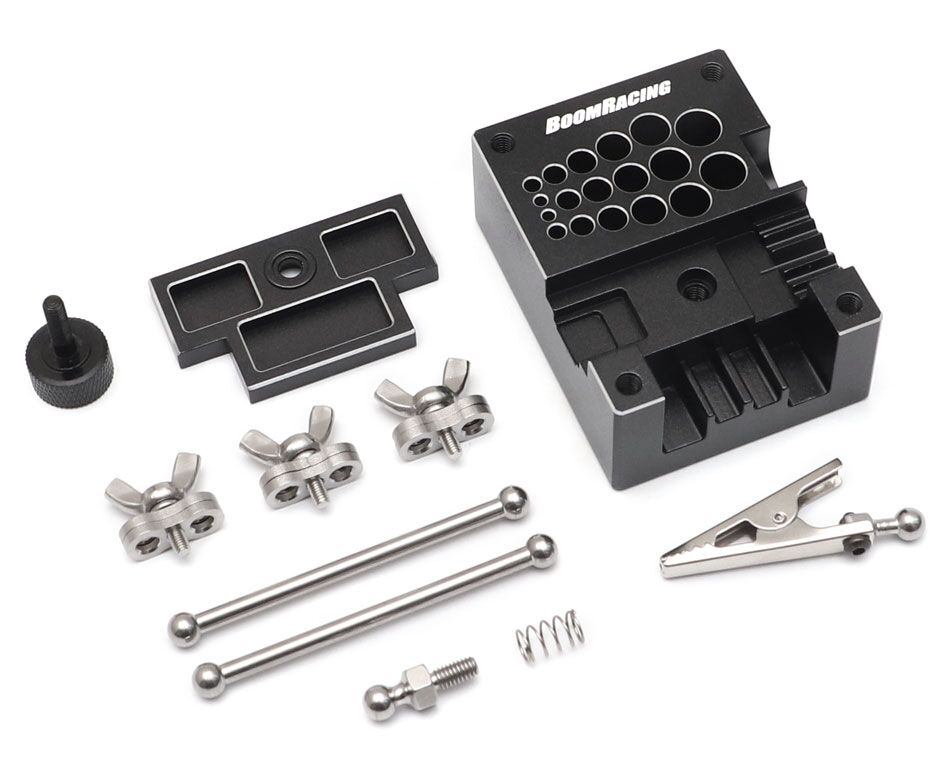

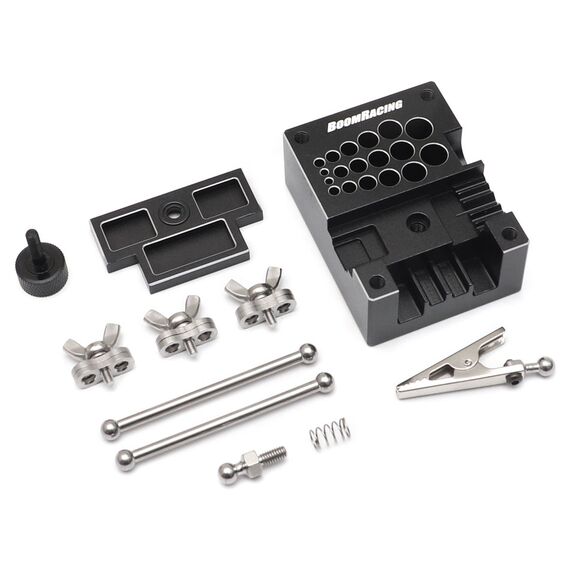

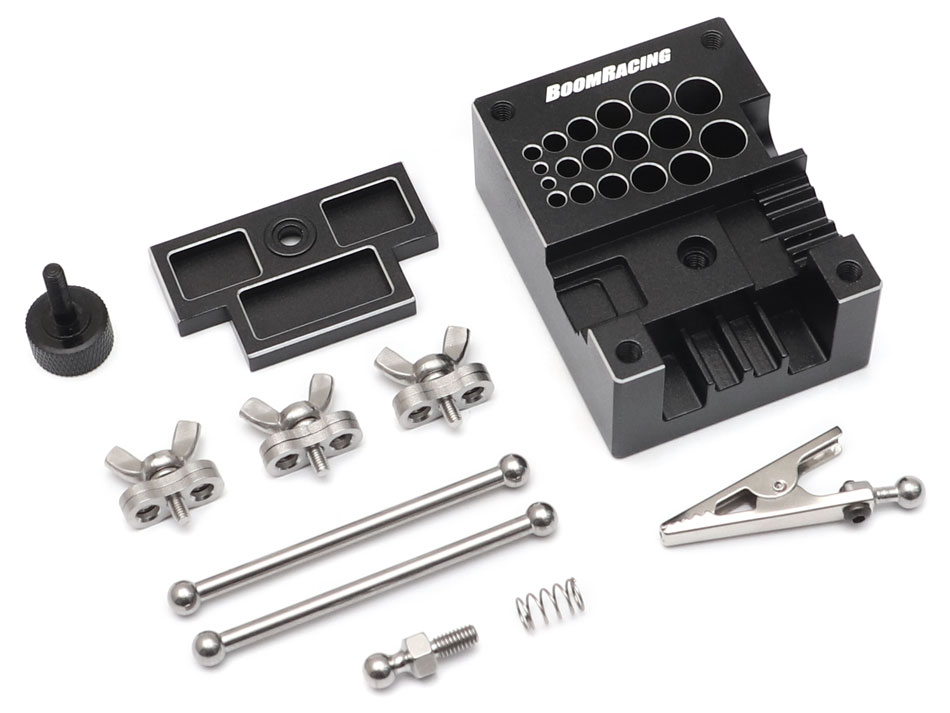

Includes:
KUDU™ billet aluminum jig with steel base
Aluminum plate with an adjustable aluminum knob
Stainless steel clamping arm set
Hardware for installation

Optional:
Clamping Arm Set #BRT10058A
